Product Details:
Payment & Shipping Terms:
|
Material: | 100% Polyester | Weave Type: | Plain |
---|---|---|---|
Mesh: | 25-420M/inch | Color: | White,yellow |
Monofilament: | Yes | Thread Diameter: | 31-250um |
High Light: | nylon mesh screen roll,silk screen roll |

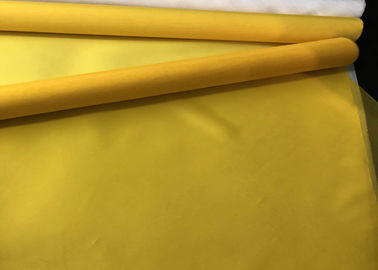

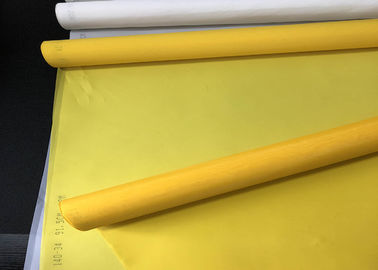

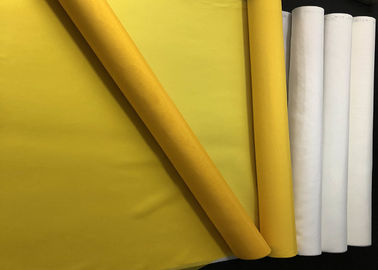

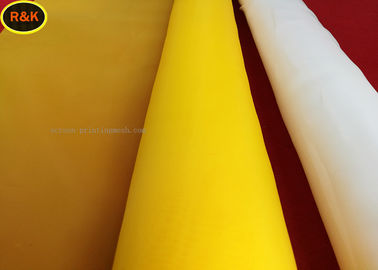

Polyester Monofilament Screen Printing Mesh / Roll Silk Fabric
Descriptions of polyester monofilament screen printing mesh:
polyester printing mesh fabric | |
Weave Style | Plain Weave |
Material | 100% polyester |
Monofilament Style | Yes |
Width | 0.6-3.65m |
Mesh Count | 18-420 mesh/inch |
Thread Diameter | 31-250 micron |
Mesh Opening | 25-1068 micron |
Thickness | 46-693 micron |
Feature of polyester monofilament screen printing mesh/roll silk fabric:
Polyester screen printing mesh is made of high quality domestic and imported material,
advanced weaving loops and test instrument. So this kind of polyester
mesh has High tensity and low elongation etc.
Application of polyester monofilament screen printing mesh/roll solk fabric:
Polyester printing mesh is widely used in electronic PCB circuit boards; Printing plate making, textile printing, glass, ceramic, print ads, banners, magazines, printed electronic display screen, used to make glass screen mesh, filter, ink used in aviation, aerospace, petrochemical and other high-tech fields of melt filter, etc.
Specification for Polyester Monofilament Screen Printing Mesh / Roll Silk Fabric
Specification | |||||||
Model | Mesh/cm | Mesh/inch | Aperture (micron) | Thread Dia. (micron) | Open Area (%) | Thickness (micron) | Theoretical Ink (cm3/m2) |
10-250 | 10 | 25 | 743 | 250 | 55 | 495 | 274 |
12-140 | 12 | 30 | 686 | 140 | 68 | 277 | 189 |
13-150 | 13 | 33 | 619 | 150 | 64 | 300 | 128 |
16-140 | 16 | 40 | 461 | 140 | 58 | 238 | 139 |
21-80 | 21 | 55 | 296 | 80 | 69 | 120 | 79 |
21-150 | 21 | 55 | 326 | 150 | 46 | 260 | 118 |
22-80 | 22 | 56 | 356 | 80 | 66 | 136 | 90 |
24-80 | 24 | 60 | 320 | 80 | 63 | 136 | 86 |
24-100 | 24 | 60 | 316 | 100 | 57 | 170 | 65 |
28-140 | 28 | 70 | 217 | 140 | 40 | 195 | 76 |
32-55 | 32 | 80 | 257 | 55 | 67 | 103 | 67 |
32-64 | 32 | 80 | 248 | 64 | 63 | 95 | 56 |
32-100 | 32 | 80 | 212 | 100 | 46 | 170 | 73 |
36-90 | 36 | 92 | 183 | 90 | 44 | 150 | 65 |
39-55 | 39 | 100 | 177 | 55 | 56 | 88 | 55 |
43-80 | 43 | 110 | 149 | 80 | 41 | 130 | 53 |
47-55 | 47 | 120 | 152 | 55 | 51 | 88 | 48 |
48-70 | 48 | 122 | 133 | 70 | 41 | 115 | 47 |
53-55 | 53 | 135 | 133 | 55 | 50 | 86 | 42 |
54-64 | 54 | 137 | 115 | 64 | 39 | 100 | 39 |
54-70 | 54 | 137 | 109 | 70 | 35 | 116 | 40 |
61-64 | 61 | 155 | 90 | 64 | 31 | 101 | 30 |
64-55 | 64 | 160 | 98 | 55 | 38 | 98 | 36 |
64-64 | 64 | 160 | 85 | 64 | 30 | 115 | 34 |
68-55 | 68 | 175 | 85 | 55 | 34 | 85 | 28 |
68-64 | 68 | 175 | 78 | 64 | 28 | 105 | 30 |
72-48 | 72 | 182 | 90 | 48 | 36 | 78 | 33 |
72-55 | 72 | 182 | 85 | 55 | 30 | 90 | 27 |
80-48 | 80 | 200 | 72 | 48 | 33 | 74 | 25 |
90-48 | 90 | 230 | 56 | 48 | 25 | 78 | 19 |
100-40 | 100 | 255 | 58 | 40 | 33 | 63 | 21 |
110-40 | 110 | 280 | 48 | 40 | 27 | 64 | 17 |
120-31 | 120 | 305 | 49 | 31 | 35 | 49 | 17 |
120-34 | 120 | 305 | 45 | 34 | 30 | 55 | 16 |
130-34 | 130 | 330 | 40 | 34 | 27 | 55 | 15 |
140-31 | 140 | 355 | 36 | 31 | 26 | 48 | 12 |
140-34 | 140 | 355 | 31 | 34 | 20 | 53 | 10 |
150-31 | 150 | 380 | 32 | 31 | 23 | 49 | 11 |
150-34 | 150 | 380 | 23 | 34 | 13 | 55 | 6.5 |
165-31 | 165 | 420 | 23 | 31 | 15 | 48 | 7 |
Note:The above theoretic data is for reference only,and thickness tollerance |
