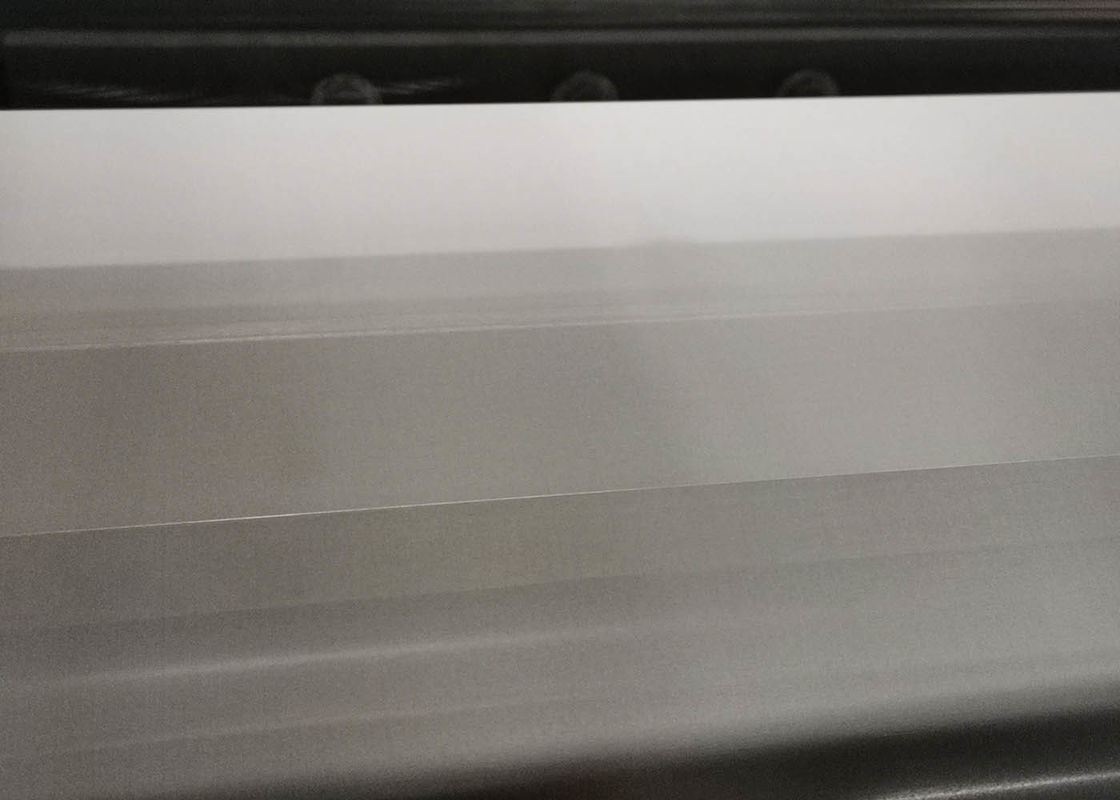

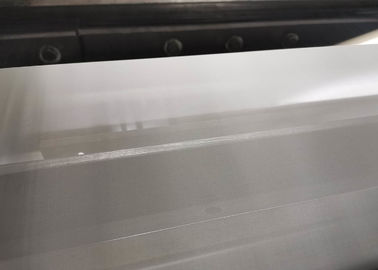

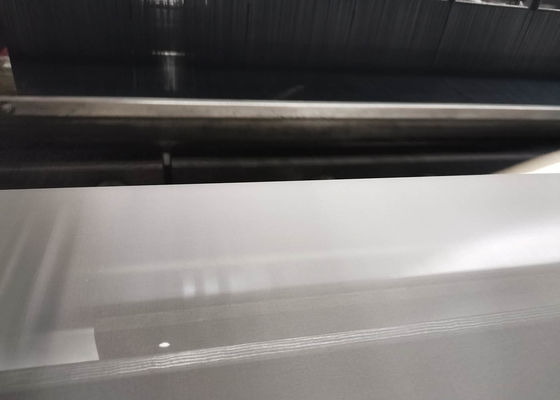

23 Micron Screen Printing Mesh Roll

23 Micron Screen Printing Mesh Roll
23 Micron Screen Printing Mesh Roll 23 Micron Screen Printing Mesh Roll 23 Micron Screen Printing Mesh Roll

Large Image :  23 Micron Screen Printing Mesh Roll

Product Details:
Place of Origin: Hebei,China
Brand Name: R&K
Certification: ISO,SGS
Model Number: J910
Payment & Shipping Terms:
Minimum Order Quantity: 50 meters
Price: negotiation
Packaging Details: Waterproof,woven bags inside,carton or plywood case outside.
Delivery Time: Within 7 work days
Payment Terms: L/C,T/T,Western Union,Paypal,Trade assurance,Credit card
Supply Ability: 20000 square meter per month
  • Product Details
Detailed Product Description
Product Name: Stainless Steel Screen Printing Mesh Roll Certification: ISO,SGS
Application: Printed Circuit Board Weave Style: Plain Weave,1:1
Roll Width: Standard Size 100/122/135/150/165cm Roll Length: Standard 30 Meters
Place Or Origin: Hebei,China Mainland Brand Name: R&K
Mesh Count: 325 Mesh Per Inch Thread Diameter: 23 Micron
High Light:

nylon mesh screen roll

,

silk screen roll

Custom Width Stainless Steel Screen Printing Mesh Roll For Printed Circuit Boards


Description of 325 mesh stainless steel wire mesh:



Reking can accept custom-made for our customers, if you have thickness requirements, we can use the calender to press the mesh according to your requirements. Normal tolerance is +/- 0.05mm.





Product name  Custom Width Stainless Steel Screen Printing Mesh Roll For Printed Circuit Boards
Material SUS 304,304l,316,316L
Hole style square,1:1
Weave  Stylle Plain Weave




Wire diameter:35 micron

Roll length:30 meter per roll

Roll width:1.0m/1.22m/1/35m/1.50m/1.65m



Features of 325 mesh stainless steel wire mesh:

  • 1) Reking Stainless steel wire mesh shape is square and precise, the mesh standard is accurate, the filtering value is accurate, the mesh surface is smooth, the thickness is ultra-thin, there is no joint wire knot, the structure is stable and the overprint is accurate;
  • 2) The use of rolling technology ensures that the network structure of the wire mesh is more stable, effectively controls the amount of printing ink penetration, the performance of the mesh structure is greatly improved, and it is not easy to collapse and collapse;
  • 3) Domestically made mesh yarns are affordable, and within the range of product quality requirements, the cost performance is extremely high; imported mesh yarns are of superior quality, comparable to imported mesh yarns, at reasonable prices, and customers can purchase and use them as needed.



Application of 325 mesh stainless steel screen mesh :

Glass bottle series:

Drinking glasses,

Decorative glasses;

Vases;

Crockery surface;

Flacon;



Printed Circuit boards

Thick film,

Remote control and so on.



Specification of the stainless steel screen mesh:




Specification Mesh/
inch
Wire Dia
(μm)
Open area
Ratio(%)
Apereture
(μm)
Apereture
(μm)
Calendered Thickness
(μm)
Theoretical
lnk(cm^/m^)
100*100*100 100 100 36.8 154 195-205 As order 77.2
120*120*80 120 80 39 132 155-165 As order 65.8
150*150*60 150 60 41.7 109 115-124 As order 50
165*165*35 165 35 60 119 70-75 As order 48
165*165*45 165 45 50.1 109 88-93 As order 45.1
165*165*50 165 50 45.6 104 97-105 As order 45.6
180*180*45 180 45 46.4 96 88-93 As order 41.5
180*180*50 180 50 42 91 98-104 As order 41.7
200*200*40 200 40 46.9 87 82-84 As order 43
200*200*50 200 50 37 77 98-103 As order 42
230*230*35 230 35 46.7 75 72-76 50-67 37
250*250*40 250 40 36.8 62 82-86 50-80 34
250*250*30 250 30 49.7 72 64-68 40-58 30
250*250*35 250 35 43 67 76-78 57-70 32
270*270*35 270 35 39.4 59 76-80 58-70 30
300*300*30 300 30 41.7 55 66-68 4-59 28
325*325*30 325 30 38 48 66-68 45-60 24
325*325*28 325 28 41.2 50 63-64 40-56 26.4
325*325*23 325 23 49.8 55 49-53 37-41 25.4
350*350*35 350 25 43 48 52-54 41-50 18.7
400*400*23 400 23 40.7 41 50-54 35-48 19
400*400*18 400 18 51.3 46 36-40 28-30 20
500*500*18 500 18 41.7 33 36-40 23-29 15.3
