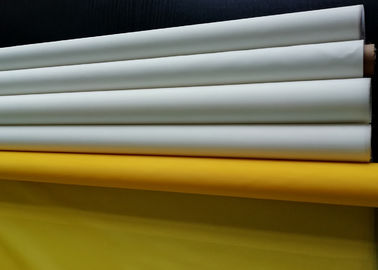

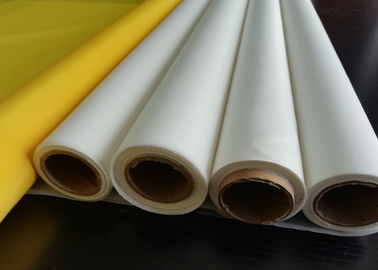

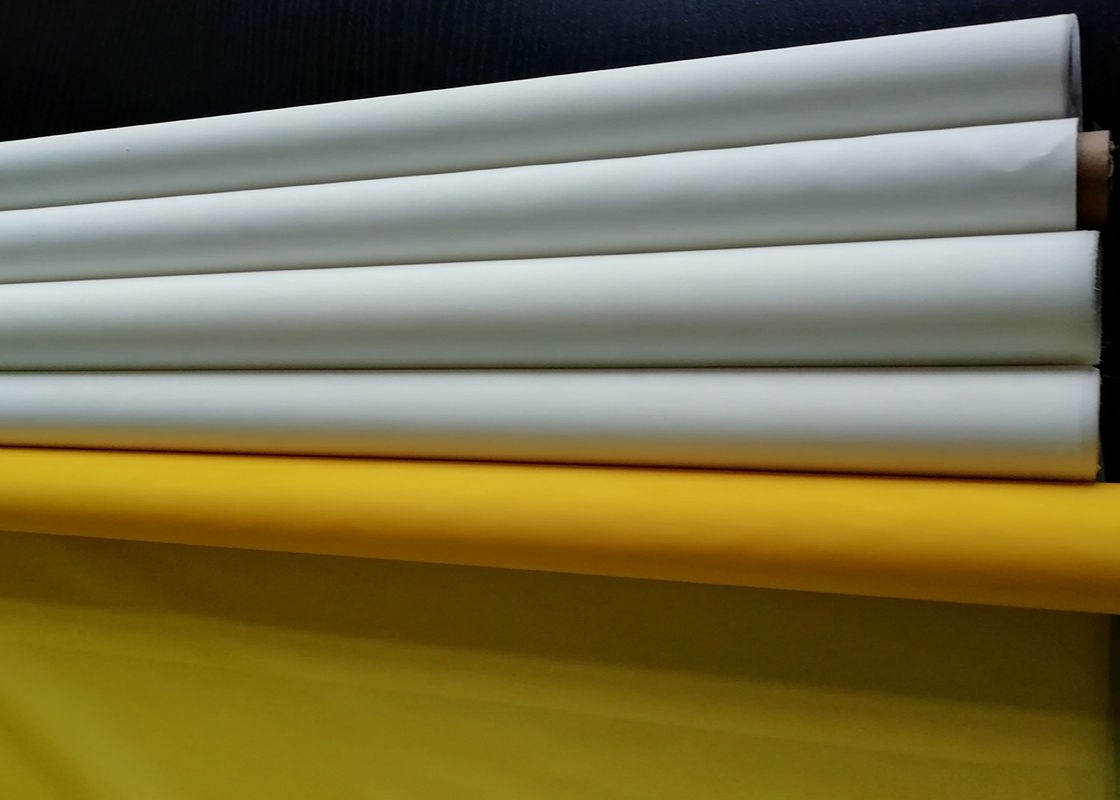

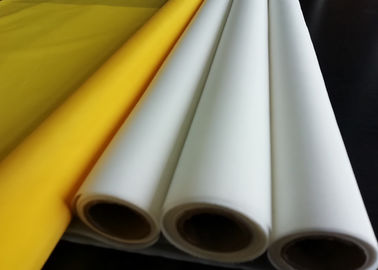

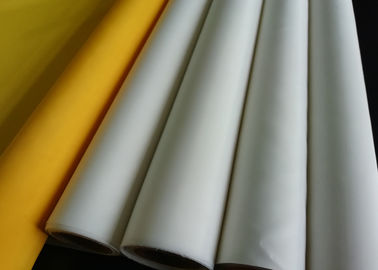

33-420 Mesh Monofilament Plain Weave High Tension Polyester Screen Printing Mesh
Product Introduction
Polyester screen printing mesh provides excellent reproducible printing results and exceptional and accurate image quality and durability.
Additional, the wide ranges of mesh counts for different printing substrates can satisfy your most of printing requirements.
Product Description
Product name:33-420 Mesh Monofilament Plain Weave High Tension Polyester Screen Printing Mesh
Material:100% polyester monofilament
Color:white, yellow, black
Weave type:plain
Common Width:100cm, 127cm, 145cm, 165cm, 220cm, 258cm, 305cm, 335cm, 365cm or customized
Roll length:30-100m or customized
Mesh Count/cm:4-165T
Mesh Countinch:10-420 mesh/inch
Thread diameter:30-550 micron
Mesh Opening:25-2000 micron
Thickness:60-1100micron
Screen printing classification
1. Direct printing of paint.Direct printing of paint is to print the prepared printing paste directly on the fabric, which is the simplest and most commonly used process in the printing process
2. Silk printing The main methods of silk printing are direct printing, discharge printing and anti-dye printing.
3. Knitted underwear printing Knitted underwear printing mainly uses the direct printing process of paint. After printing, the fabric can be double-baked or naturally dried, which avoids the problems of easy deformation of the knitted fabric and difficult processing of the agricultural sheet.
4. Discharge printing Discharge printing is also called engraving. It refers to printing method that uses discharge agent to print on colored fabrics and destroys some dyes that have been dyed, thus obtaining various patterns and patterns. Discharge agent is a chemical that can decolorize the dye base.
Product Specification
| Mesh Count Diameter (Mesh/cm μm) |
Mesh Count(Mesh/inch) |
Aperture(μm) |
Thread Diameter(μm) |
| 13-150PW(SL) |
33 |
619 |
150 |
| 21-80PW(S) |
55 |
296 |
80 |
| 21-150PW(SL) |
55 |
326 |
150 |
| 24-100PW(T) |
60 |
316 |
100 |
| 28-140PW(SL) |
70 |
217 |
140 |
| 32-55PW(S) |
81 |
257 |
55 |
| 32-64PW(S) |
81 |
248 |
64 |
| 32-100PW(T) |
81 |
212 |
100 |
| 36-90PW(T) |
92 |
183 |
90 |
| 39-55PW(S) |
100 |
177 |
55 |
| 40-80PW(T) |
103 |
166 |
80 |
| 43-80PW(T) |
110 |
149 |
80 |
| 47-45PW(S) |
120 |
166 |
80 |
| 47-55PW(S) |
120 |
152 |
55 |
| 48-70PW(T) |
122 |
133 |
70 |
| 53-55PW(S) |
135 |
133 |
70 |
| 54-64PW(T) |
137 |
115 |
64 |
How to choose
| specification |
Usage |
| 24T |
Beach towels,Pennant inks,Giltter inks,Thicker inks |
| 34T,36T,39T,43T |
Textile inks,Opaque inks textile,T-shirts |
| 49T,48T,54T,55T |
Textile inks,Finer textile design,Water based inks |
| 62T,64T,68T,72T |
Enamel inks,Very fine textile ink or course plastisol ink printing |
| 77T |
Paper & Board inks & textile |
| 90T,100T |
Vinyl inks,Plastic inks,Plastisol inks,Solvent based |
| 110T,120T,140T |
Halftone printing,Paper & Board Vinyl Plastic |
FAQ
1.Q: Are you trading company or manufacturer ?
A:We are a manufacturer-trading company integrating production and sales. We have more than 600 employees,more than 600 sets of production and testing equipment.
2.Q:Q: Do you have any certifications?
A:A: Yes, we have IS09001, FDA, ROSH, SGS to guarantee the product's quality, so you can totally truth us.
3.Q: Do you provide samples ?
A:We can provide samples to you for free but you have to pay the cost of freight.
4.Q: What is your terms of payment ?
A:A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
