110 Microns Polyester Printing Mesh , Durable Monofilament Polyester Mesh

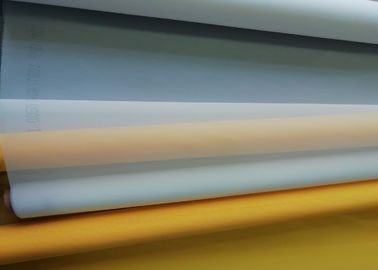

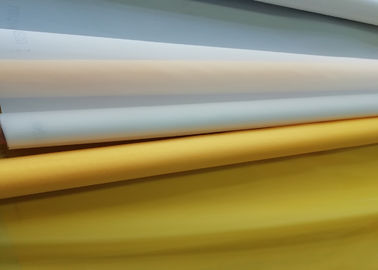

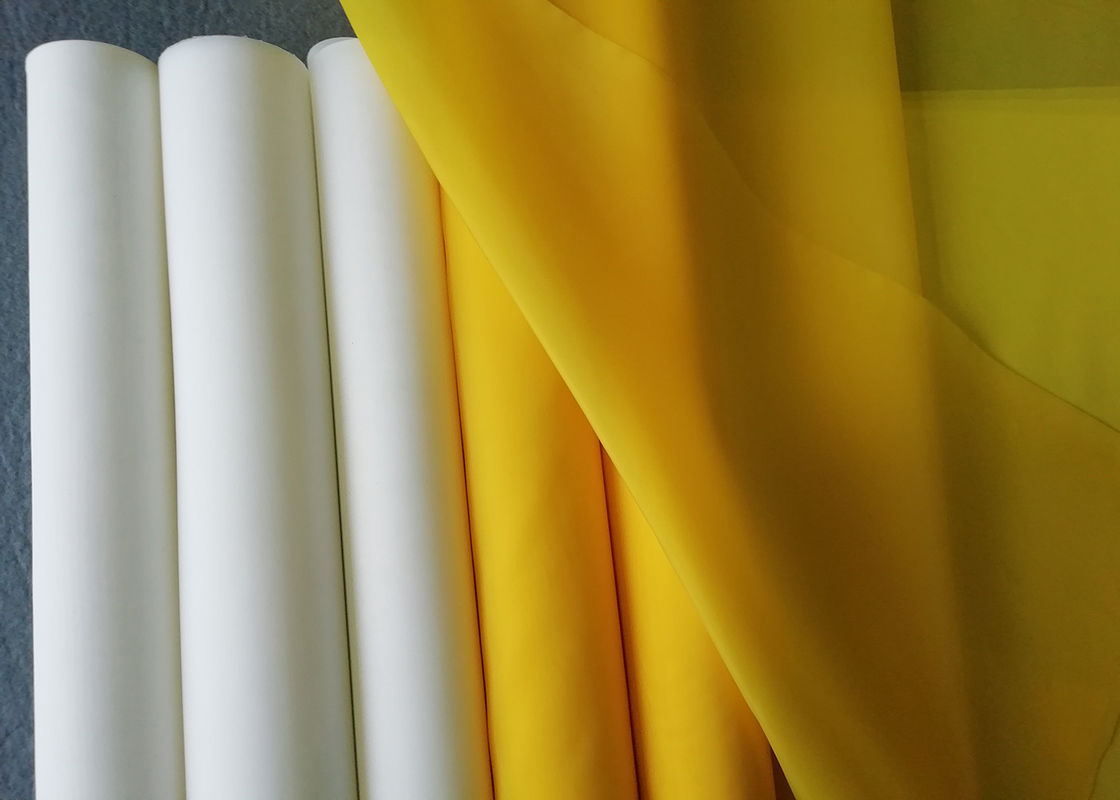

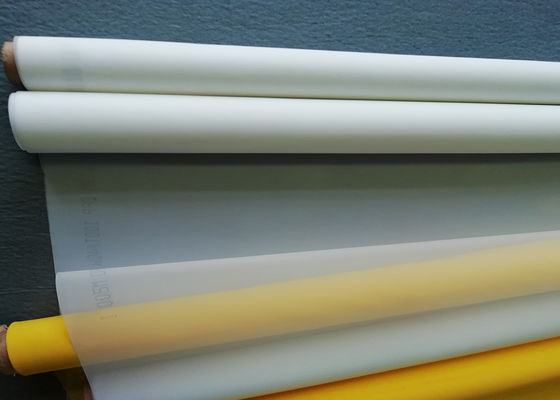

Large Image : 110 Microns Polyester Printing Mesh , Durable Monofilament Polyester Mesh

Product Details:

Place of Origin:	HEBEI ,CHINA
Brand Name:	R&K
Certification:	MSDS,ROSH,SGS,ISO 9001
Model Number:	R&K-Polyester mesh

Payment & Shipping Terms:

Minimum Order Quantity:	10 meters
Price:	Negotiable
Packaging Details:	1.30-70m/roll in PVC bag 2 2-8 rolls per carton 3.waterproof bags outside 4.package belt strengthen
Delivery Time:	7~15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000 Meters per month

Contact Now

Detailed Product Description

Width:	43/44"	Style:	Plain
Supply Type:	Make-to-Order	Material:	100% Polyester
Yarn Count:	75D/144F	Pattern:	Printed
Type:	Mesh Fabric	Technics:	Woven
High Light:	polypropylene filter mesh , polypropylene filter mesh

110 Microns Monofilament Polyester Mesh Silk Screen For T-Shirt Printing

Product Introduction

Product Name:110 Microns Monofilament Polyester Mesh Silk Screen For T-Shirt Printing

Color:white, yellow, black

Material:100% polyester

Thickness:60-1100micron

Mesh Opening:25-2000 micron

Thread diameter:30-550 micron

Mesh Countinch:10-420 mesh/inch

Mesh Count/cm:4-165T

Roll length:30-100m or customized

Common Width:100cm, 127cm, 145cm, 165cm, 220cm, 258cm, 305cm, 335cm, 365cm or customized

Product Specification

COUNT (INCH)	COUNT (CM)	DIAMETER (UM)	OPEPING (UM)	OPEN AREA(%)	THICKNESS(UM)	VOLUME (CM³/CM²)	MAX TEN SION(N/CM)
15	6	400	1270	64	720	460	30-60
18	7	350	1078	64	640	410	30-60
20	8	300	950	58	550	319	30-60
25	10	250	750	56	620	347	30-60
30	12	250	583	49	450	220	30-60
30	12	150	683	67	300	201	30-60
40	16	200	425	46	400	184	30-60
50	20	150	350	49	260	127	30-67
50	20	80	420	71	120	85	35-37
60	24	100	316	58	136	78	35-40
60	24	120	297	50	240	120	35-60
73	29	120	225	43	240	103	35-60
80	32	64	248	63	95	59	30-34
80	32	100	212	46	200	92	35-40
85	34	100	195	44	221	97	35-40
90	36	100	178	41	216	88	35-40
100	39	55	200	61	88	53	25-30
100	39	80	176	47	150	70	35-37
110	43	80	153	43	130	56	35-37
120	47	55	158	55	88	48	25-30
120	48	70	138	44	135	59	30-34
135	53	55	133	50	86	43	25-30
135	54	64	121	44	100	44	26-31
150	61	64	100	38	100	38	26-31
160	64	55	101	42	98	41	25-30
160	64	64	92	35	120	42	30-34
180	72	48	91	43	78	66	27-29
180	72	55	84	37	100	37	25-30
200	80	48	77	38	74	28	27-29
195	77	55	75	33	105	34	25-30
230	90	48	63	33	85	28	27-29
250	100	40	60	36	70	25	20-24
280	110	40	51	31	85	26	20-24
305	120	40	43	27	68	18	20-24
355	140	34	37	27	58	15	22-24
380	150	31	36	29	46	13	21-23
420	165	31	30	24	46	11	21-23
460	180	27	28	26	56	1	20-22

Product Application

specification	Usage
24T	Beach towels,Pennant inks,Giltter inks,Thicker inks
34T,36T,39T,43T	Textile inks,Opaque inks textile,T-shirts
49T,48T,54T,55T	Textile inks,Finer textile design,Water based inks
62T,64T,68T,72T	Enamel inks,Very fine textile ink or course plastisol ink printing
77T	Paper & Board inks & textile
90T,100T	Vinyl inks,Plastic inks,Plastisol inks,Solvent based
110T,120T,140T	Halftone printing,Paper & Board Vinyl Plastic
150T,165T	U.V. Printing,Or very fine halftone work,solvent inks
