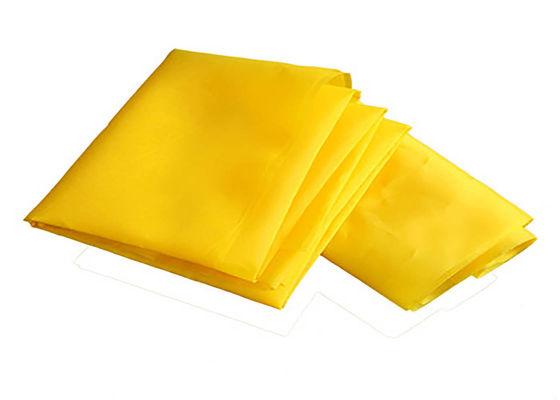

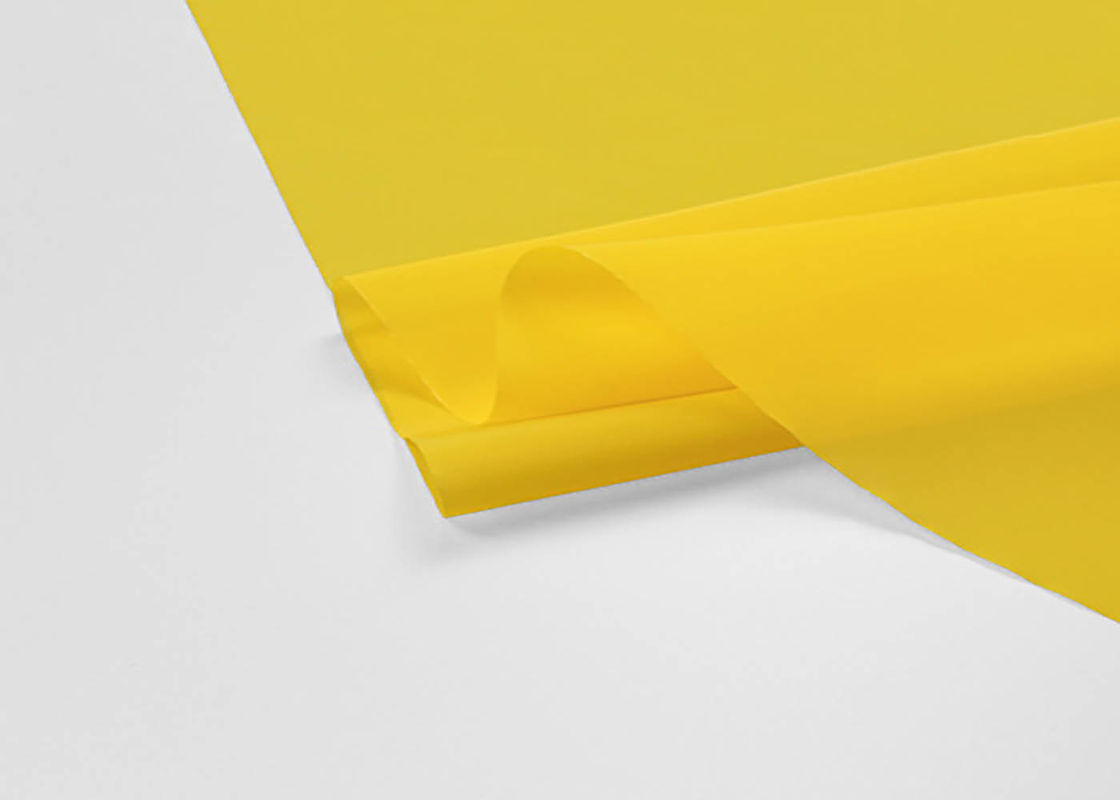

SGS Polyester 77t Silk Screen Printing Mesh Plain Weave

Large Image : SGS Polyester 77t Silk Screen Printing Mesh Plain Weave

Product Details:

Place of Origin:	Hebei, China (Mainland)
Brand Name:	R&K
Certification:	FDA / SGS / ISO:9001
Model Number:	R&K-Polyester Mesh

Payment & Shipping Terms:

Minimum Order Quantity:	1 meter
Price:	Negotiable
Packaging Details:	cartons;cases;as your requirement
Delivery Time:	7~15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000 Meters per month

Contact Now

Detailed Product Description

Weave Type:	Plain	Monofilament Style:	Yes
Printing:	Silk Screen Printing	Material:	Polyester
Mesh Count:	77T	Color:	Yellow
High Light:	SGS silk screen printing mesh , silk screen printing mesh 77t , 77t silk mesh for screen printing

Polyester 77 T Plain Weave Silk Screen Printing Mesh

Product Introduction

The mesh count is the number of threads per inch in the warp and weft directions of the fabric. Hebei Reking's woven mesh has the same number of meshes in the warp and weft directions.

The thread diameter is specified as the thread diameter in microns; the warp and weft yarn numbers are the same.

Product Details

Material:	100%Polyester	Color:	White,yellow,black
Thread Diameter:	30-150micron	Mesh:	40-400mesh/inch
Length:	30-70m/roll	Width:	1.15-3.6m
Sample:	Free	Weave:	Plain Weave,twill Weave

Product specification

Mesh Count Diameter (Mesh/inch μm)	Mesh Count (Mesh /Inch)	Weave	Aperture (μm)	Thread Diameter (μm)	Opening (%)	Thickness(μm)	Thickness Tollerance (+/- μm)	Theoretical lnk(cm3/m2)	Weight (g/m2)
12-250	30	1:1	583	250	49	490	20	228	117
13-150PW(SL)	33	1:1	619	150	64	300	14	128	60
16-200	40	1:1	425	200	46	400	18	172	148
20-120PW(T)	50	1:1	380	120	58	210	11	122	76
21-80pw(S)	55	1:1	296	80	69	120	9	79	35
21-150PW(SL)	55	1:1	326	150	46	260	14	118	121
24-100PW(T)	60	1:1	316	100	57	136	11	65	81
28-140PW(SL)	70	1:1	217	140	40	195	13	76	125
32-55PW(S)	81	1:1	257	55	67	103	6	67	28
32-64PW(S)	81	1:1	248	64	63	95	6	56	32
32-100PW(T)	81	1:1	212	100	45	165	8	73	75
36-90PW(T)	92	1:1	183	90	44	150	8	65	68
39-55PW(S)	100	1:1	177	55	56	88	6	55	30
40-80PW(T)	103	1:1	166	80	44	133	7	59	60
43-80PW(T)	110	1:1	149	80	41	130	7	53	64
47-45PW(S)	120	1:1	166	45*2	61	80	6	42	40
47-55PW(S)	120	1:1	152	55	51	88	6	48	34
48-70PW(T)	122	1:1	133	70	41	115	6	47	55
53-45PW(S)	135	1:1	143	45*2	57	79	7	41	46
53-55PW(S)	135	1:1	133	55	50	86	6	42	40
54-64PW(T)	137	1:1	115	64	39	100	5	39	51
54-70(PW)HD	137	1:1	109	70	35	116	6	40	62
61-64PW(T)	155	1:1	90	64	31	101	5	30	58
64-55PW(S)	160	1:1	98	55	38	98	5	36	48
64-64PW(T)	160	1:1	85	64	30	115	6	34	61
68-55PW(S)	175	1:1	85	55	34	85	4	28	48
68-64PW(T)	175	1:1	78	64	28	105	5	30	65
72-48PW(S)	182	1:1	90	48	36	78	5	33	39
72-55PW(T)	182	1:1	85	55	30	90	5	27	51
77-48PW(S)	195	1:1	77	48	35	80	4	28	42
77-55PW(T)	195	1:1	67	55	27	88	4	24	55
80-48PW(T)	200	1:1	72	48	33	74	4	25	56
90-48PW(T)	230	1:1	56	48	25	78	4	19	50
100-40PW(T)	255	1:1	58	40	33	63	3	21	37
110-40PW(HD)	280	1:1	48	40	27	64	3	17	40
120-31PW(S)	305	1:1	49	31	35	49	3	17	26
120-34PW(T)	305	1:1	45	34	30	55	3	16	35
120-40PW(HD)	305	1:1	37	40	20	63	3	13	44
130-34PW(T)	330	1:1	40	34	27	55	3	15	37
140-31PW(S)	355	1:1	36	31	26	48	2	12	30
140-34PW(T)	355	1:1	31	34	20	53	3	10	39
140-34TW(T)	355	1:1	33	34	21	56	3	12	41
150-31PW(S)	380	1:1	32	31	23	49	3	11	32
150-34PW(T)	380	1:1	23	34	13	55	3	6.5	42
165-34PW(S)	420	1:1	23	31	15	48	2	7	36
180-27PW(S)	460	1:1	23	27	16	43	2.5	7	31

Product Characteristics

Screen Printing Silk Screen with characteristics:

1. screen printing adaptability is very strong, wide range of applications.

2. Screen printing not only can be monochrome printing, but also can be color register and screen color printing.

3. The Light Resistance of screen printing products is stronger than that of other kinds of printing products. It is more suitable for outdoor advertising and signage.

4, screen printing can be a large area of printing, today's screen printing products up to a maximum range of 3 meters 4 meters, or more.
