Product Details:
Payment & Shipping Terms:
|
Application: | Filters | Material: | Stainless Steel Wire |
---|---|---|---|
Weave Style: | Plain Weave | Color: | Silver |
Wire Diameter: | 0.025-1mm | Length: | 30m/roll 50m/roll Or As Required |
Usage: | Filtering And Sieveing | Feature: | Flexibility |
High Light: | beer brewing filter,food grade mesh bags |
High quality plain weave 304 0.3mm / 0.355mm aperture stainless steel sieve mesh
Descriptions of stainless steel sieve mesh
The stainless steel screen is made of high-quality stainless steel wire under specific high-temperature process conditions, drawn through a wire drawing machine to a specified wire diameter, and then woven by a weaving machine in a constant temperature, dust-free and clean factory building.
Features of stainless steel sieve mesh
1. Precision structure
2. Even mesh
3. Good filtering accuracy
4. Abrasion resistance, high temperature resistance
5. Strong acid resistance and corrosion resistance
Applications
1. Suitable for distillation, absorption, evaporation, filtration and other processes in petroleum, oil refining, chemical, light industry, medicine, metallurgy, machinery, shipbuilding, automobile and tractor industries.
2. Drops and droplets entrained in steam or gas.
3. As well as air cleaners on automotive tractors.
Specifications
Mesh | Wire diameter | Aperture | Opening Area | Weight(IB)/100 square feet | ||
inch | mm | Inch | mm | |||
1x1 | .080 | 2.03 | .920 | 23.37 | 84.6 | 41.1 |
2X2 | .063 | 1.60 | .437 | 11.10 | 76.4 | 51.2 |
3X3 | .054 | 1.37 | .279 | 7.09 | 70.1 | 56.7 |
4X4 | .063 | 1.60 | .187 | 4.75 | 56.0 | 104.8 |
4X4 | .047 | 1.19 | .203 | 5.16 | 65.9 | 57.6 |
5X5 | .041 | 1.04 | .159 | 4.04 | 63.2 | 54.9 |
6X6 | .035 | .89 | .132 | 3.35 | 62.7 | 48.1 |
8X8 | .028 | .71 | .097 | 2.46 | 60.2 | 41.1 |
10X10 | .025 | .64 | .075 | 1.91 | 56.3 | 41.2 |
10X10 | .020 | .51 | .080 | 2.03 | 64.0 | 26.1 |
12X12 | .023 | .584 | .060 | 1.52 | 51.8 | 42.2 |
12X12 | .020 | .508 | .063 | 1.60 | 57.2 | 31.6 |
14X14 | .023 | .584 | .048 | 1.22 | 45.2 | 49.8 |
14X14 | .020 | .508 | .051 | 1.30 | 51.0 | 37.2 |
16X16 | .018 | .457 | .0445 | 1.13 | 50.7 | 34.5 |
18X18 | .017 | .432 | .0386 | .98 | 48.3 | 34.8 |
20X20 | .020 | .508 | .0300 | .76 | 36.0 | 55.2 |
20X20 | .016 | .406 | .0340 | .86 | 46.2 | 34.4 |
24X24 | .014 | .356 | .0277 | .70 | 44.2 | 31.8 |
30X30 | .013 | .330 | .0203 | .52 | 37.1 | 34.8 |
30X30 | .012 | .305 | .0213 | .54 | 40.8 | 29.4 |
30X30 | .009 | .229 | .0243 | .62 | 53.1 | 16.1 |
35X35 | .011 | .279 | .0176 | .45 | 37.9 | 29.0 |
40X40 | .010 | .254 | .0150 | .38 | 36.0 | 27.6 |
50X50 | .009 | .229 | .0110 | .28 | 30.3 | 28.4 |
50X50 | .008 | .203 | .0120 | .31 | 36.0 | 22.1 |
60X60 | .0075 | .191 | .0092 | .23 | 30.5 | 23.7 |
60X60 | .007 | .178 | .0097 | .25 | 33.9 | 20.4 |
70X70 | .0065 | .165 | .0078 | .20 | 29.8 | 20.8 |
80X80 | .0065 | .165 | .0060 | .15 | 23.0 | 23.2 |
80X80 | .0055 | .140 | .0070 | .18 | 31.4 | 16.9 |
90X90 | .005 | .127 | .0061 | .16 | 30.1 | 15.8 |
100X100 | .0045 | .114 | .0055 | .14 | 30.3 | 14.2 |
100X100 | .004 | .102 | .0060 | .15 | 36.0 | 11.0 |
100X100 | .0035 | .089 | .0065 | .17 | 42.3 | 8.3 |
110X110 | .0040 | .1016 | .0051 | .1295 | 30.7 | 12.4 |
120X120 | .0037 | .0940 | .0064 | .1168 | 30.7 | 11.6 |
150X150 | .0026 | .0660 | .0041 | .1041 | 37.4 | 7.1 |
160X160 | .0025 | .0635 | .0038 | .0965 | 36.4 | 5.94 |
180X180 | .0023 | .0584 | .0033 | .0838 | 34.7 | 6.7 |
200X200 | .0021 | .0533 | .0029 | .0737 | 33.6 | 6.2 |
250X250 | .0016 | .0406 | .0024 | .0610 | 36.0 | 4.4 |
270X270 | .0016 | .0406 | .0021 | .0533 | 32.2 | 4.7 |
300X300 | .0051 | .0381 | .0018 | .0457 | 29.7 | 3.04 |
325X325 | .0014 | .0356 | .0017 | .0432 | 30.0 | 4.40 |
400X400 | .0010 | .0254 | .0015 | .370 | 36.0 | 3.3 |
500X500 | .0010 | .0254 | .0010 | .0254 | 25.0 | 3.8 |
635X635 | .0008 | .0203 | .0008 | .0203 | 25.0 | 2.63 |

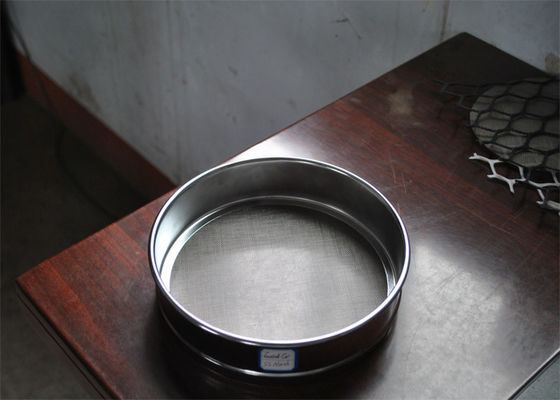

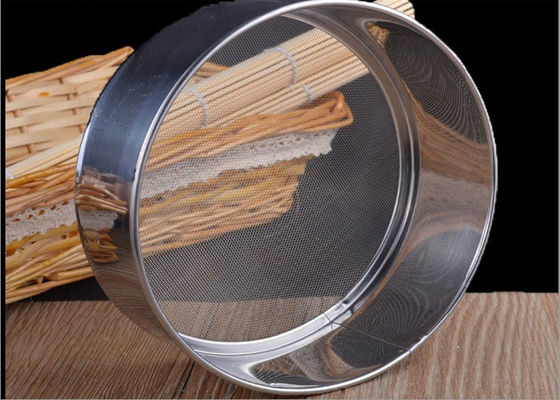

Pictures show:
