Product Details:
Payment & Shipping Terms:
|
Feature: | Durable | Filter Rating: | 99% |
---|---|---|---|
Application: | Filter Coal | Weave Style: | Welded |
Sample: | Offer Sample | Product Name: | Wedge Wire Mesh |
Hole Shape: | Wedge | ||
High Light: | sieve mesh sheets,water well screen |

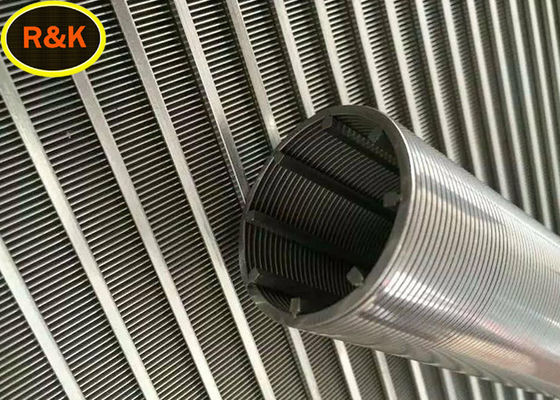

Stainless steel 304 mesh filter beer johnson wedge wire screen filter system pipes
Description of wedge wire screen
As a leading manufacturer and supplier of wire mesh screens for professional users around the world, we offer a wide range of wedge wire meshes, screen bends, quarry screens and other wire mesh screen products.
We are a major supplier of cylindrical screens, flat and curved wire mesh in China. These screen components are tailored to specific specifications and are designed for wastewater/process water treatment, quarry screening, mine screening and other industrial screening.
Our engineering department ensures that each product meets the specific needs of our customers, making Atlas a reliable supplier and consultant for wedge wire mesh
Material: Made of various galvanized steel or stainless steel, resistant to chemicals and heat. Also suitable for high temperature and high pressure alloys.
The wedge wire mesh is formed by winding a longitudinal wire around a support rod placed longitudinally. All wires and rods are resistance welded at each contact point.
Various combinations of contours and support rods, as well as various apertures between the lines and rods, allow us to design screens based on your technical or cosmetic specifications. Plates, cylinders, tubes and baskets, inlet screens, profile lines and wedge-shaped wire filter elements are new screens made by Atlas. These innovative products enable you to get the most cost-effective wedge mesh and wire mesh
Application of wedge wire mesh
This wedge wire can replace traditional media such as wire mesh cloth, perforated plates and other metal screening materials, as components such as rotary screens, well screens, quarry screens.
application:
Separate
sizing;
Energize
Dehydration
filter;
drying;
Water intake;
Media reservation
Parameters of stainless steel wedge wire mesh
Surface Profile | W | H | Material |
10S | 0.75 | 1.425 | SS304, SS316/316L, Hastelloy, Monel alloy of nickel and titanium, and other stainless steel |
11SL | 0.75 | 1.8 | |
22S | 1.8 | 3.7 | |
4S | 0.45 | 1.2 | |
50SL | 3.4 | 7.5 |
Support Profile | W | H | Material |
Q22 | 2 | 2.28 | SS304, SS316/316L, Hastelloy, Monel alloy of nickel and titanium, and other stainless steel |
Q35 | 3 | 5 | |
Q53 | 5 | 3 | |
D56 | 5 | 5.6 | |
D45 | 3.8 | 6.0 |
