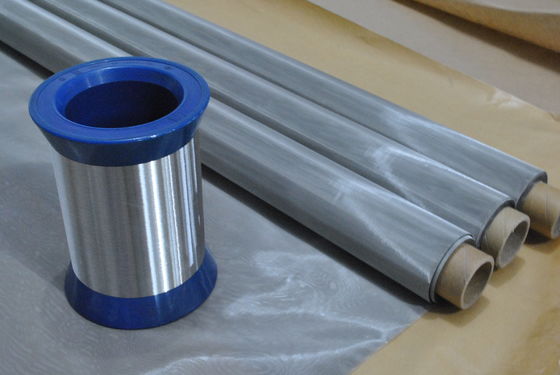

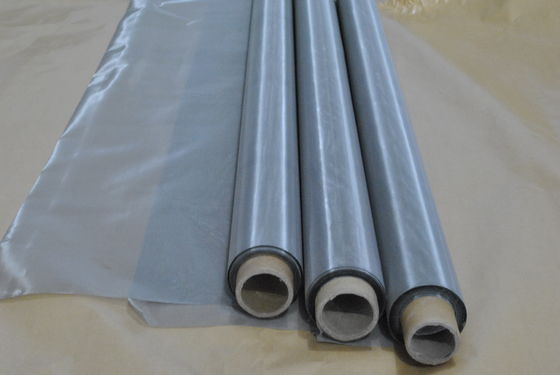

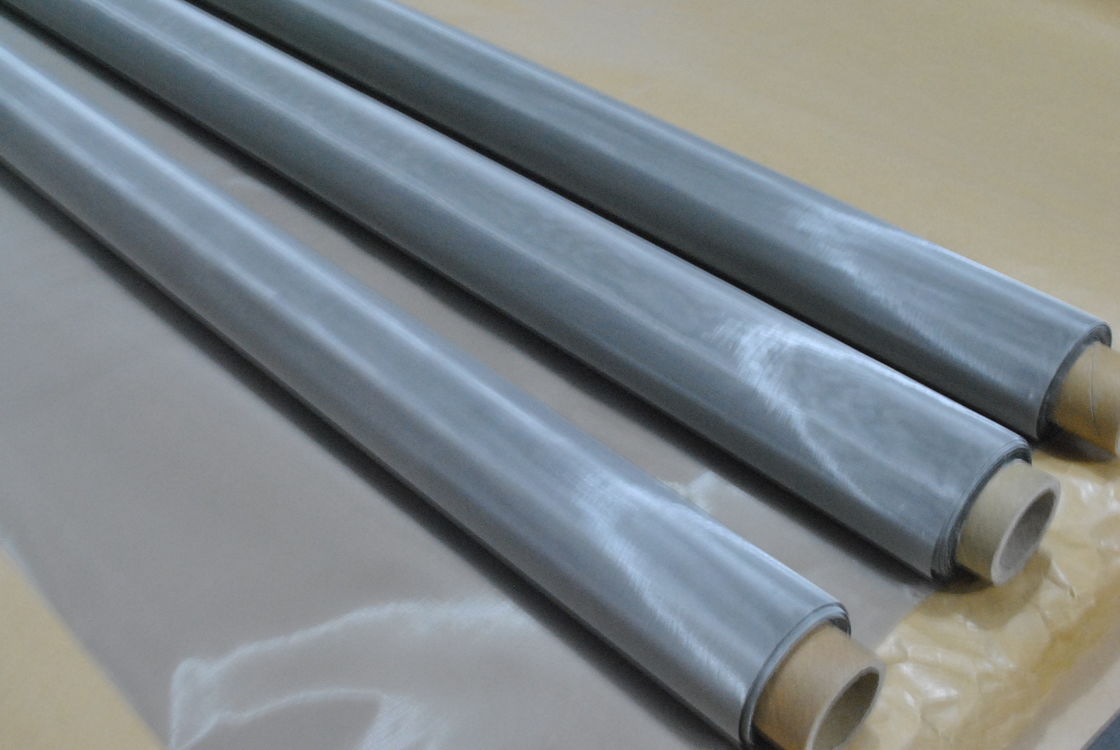

500 Mesh Silk Screen 0.05mm Stainless Steel Printing Mesh

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  500 Mesh Silk Screen 0.05mm Stainless Steel Printing Mesh

Product Details:
Place of Origin: Hebei, China(Mainland)
Brand Name: R&K
Certification: FDA / SGS / ISO:9001
Model Number: R&K-Stainless Steel Screen Mesh
Payment & Shipping Terms:
Minimum Order Quantity: 1 roll (3.66m/4m)
Price: Negotiable
Packaging Details: 1.30-70m/roll in PVC bag 2 2-8 rolls per carton 3.waterproof bags outside 4.package belt strengthen
Delivery Time: 7~15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Meters per month
Detailed Product Description
Wire Gauge: 0.05-20mm Grade: 300 Series
Length: According To Customers' Requirements Si Content (%): Standard Level
Surface: Bright Finish Material: Stainless Steel Material
High Light:

0.05mm stainless steel printing mesh

,

20mm stainless steel printing mesh

,

304HPS Stainless Steel Printing Mesh

High Precision Ultra Thin 500 Mesh Stainless Steel Wire Silk Screen Printing Mesh

Product Introduction





Stainless steel screen printing mesh have SUS 304N,304HPS,316L three materials.We can make the mesh as your inquirements,and the width also can meet your requirements .

Our MOQ is 1 square meters,and we can provide you free samples.

The details of the stainless steel screen printing mesh is as below:



Material: Stainless Steel 201,202,301,302,304,304L,316,316L,321. (SS 304 is general material)
Wire Diameter: 0.015-1mm (we have our own wire drawing workshop for serve mesh production)
Mesh No.:3-635 Mesh (' Mesh' means the numbers of hole in one inch line)
Weave type: Plain Weave,Twilled weave,dutch weave.
Roll Width: 1.0m,1.2m,1.3m,1.5m,1.6m,2.0m up to 6m (or cut as your request)
Roll Length: 15m,30m,60m,100m,200m

Aperture: 33um-475um



Product Classification


1. Plain weave stainless steel mesh:
The most common weaving method is widely used in industrial production and civil life. The main feature is that the density of the warp and weft wire diameters is the same.
2. Stainless steel square mesh
Material: galvanized iron wire, stainless steel wire, copper wire, aluminum wire, etc. Features: precise structure, uniform mesh, good corrosion resistance, strong and durable. It is widely used in industry and construction to screen sand, filter liquid and gas. It can also be used for the safety protection of mechanical accessories, etc., and it can also be used to replace wooden strips to make walls and ceilings.
3. Stainless steel mat mesh/dense mesh
Material: stainless steel wire, low carbon steel wire, nickel wire, copper wire, polyester wire, etc... Weaving: plain weave, twill weave, bamboo weave, contrast weave. Features: Good filtering accuracy, high load strength of contrast net. Uses: Used in aerospace, petroleum, chemical, scientific research and transportation industries, and can also make lunch box nets, coal washing nets, etc.



Product Features



1. High tension.Much higher tension than common polyester mesh,and this property is very stable

2. Super Precision:Uniform wire diameter and aperture with extremely low difference;

3. Low Precision:Very small elongation of wire mesh at high tension;

4. High Flexibility:The wire mesh will not lose elasticity at extreme tension;

5. High Corrosion Resistance:The excellent corrosion resistance of stainless steel wire exceeds polyester fiber;

6. Non-electrostatic:To avoid affects of non-electrostatic for printing and ensure the safety of printing;

7. Good Heat-melting Resistance:Special features of stainless steel wire mesh.Suitable for heat-melting ink;

8. Good Solvent Resistance:To avoid the affects of any solvents to wire mesh and to ensure the safety of printing.



Product Specification





Specification Mesh/inch Wire Dia.(μm) Open area Ratio(%) Aperture(μm) Thickness(μm) Calendered Thickness(μm) Theoretical Ink(cm³/m²)
40*40*160 40 160 56.0 475 300-320 As order 179.1
60*60*120 60 120 51.3 303 230-245 As order 123.2
80*80*120 80 120 39.0 198 235-245 As order 92.9
80*80*90 80 90 52.0 228 175-180 As order 103.0
80*80*50 80 50 71.0 268 95-100 As order 78.0
100*100*100 100 100 36.8 154 195-205 As order 77.2
120*120*80 120 80 39.0 132 155-165 As order 65.8
150*150*60 150 60 41.7 109 115-124 As order 50.0
165*165*35 165 35 60.0 119 70-75 As order 48.0
165*165*45 165 45 50.1 109 88-93 As order 45.1
165*165*50 165 50 45.6 104 97-105 As order 45.6
180*180*45 180 45 46.4 96 88-93 As order 41.5
180*180*50 180 50 42.0 91 98-104 As order 41.7
200*200*40 200 40 46.9 87 82-84 As order 43.0
200*200*50 200 50 37.0 77 98-103 As order 42.0
230*230*35 230 35 46.7 75 72-76 50-67 37.0
250*250*40 250 40 36.8 62 86-86 50-80 34.0
250*250*30 250 30 49.7 72 64-68 40-58 30.0
250*250*35 250 35 43.0 67 76-78 57-70 32.0



500 Mesh Silk Screen 0.05mm Stainless Steel Printing Mesh 0
