Home ProductsSilk Screen Printing Mesh

High Tension Silk Screen Printing Mesh / Stainless Steel Bolting Cloth

Certification
Good quality Screen Printing Mesh for sales
Good quality Screen Printing Mesh for sales
I'm Online Chat Now

High Tension Silk Screen Printing Mesh / Stainless Steel Bolting Cloth

China High Tension Silk Screen Printing Mesh / Stainless Steel Bolting Cloth supplier
High Tension Silk Screen Printing Mesh / Stainless Steel Bolting Cloth supplier High Tension Silk Screen Printing Mesh / Stainless Steel Bolting Cloth supplier High Tension Silk Screen Printing Mesh / Stainless Steel Bolting Cloth supplier High Tension Silk Screen Printing Mesh / Stainless Steel Bolting Cloth supplier High Tension Silk Screen Printing Mesh / Stainless Steel Bolting Cloth supplier High Tension Silk Screen Printing Mesh / Stainless Steel Bolting Cloth supplier High Tension Silk Screen Printing Mesh / Stainless Steel Bolting Cloth supplier

Large Image :  High Tension Silk Screen Printing Mesh / Stainless Steel Bolting Cloth

Product Details:

Place of Origin: Hebei province,Chain Mainland.
Brand Name: R&K
Certification: ISO9001:2008,SGS,FDA.MSDS
Model Number: Y1714

Payment & Shipping Terms:

Minimum Order Quantity: 10 Square meter
Price: negotiation
Packaging Details: kraft paper inside,and bubble film outside,then all be putinto woodcase
Delivery Time: depends on your qty.ususally within 15days.
Payment Terms: L/C, T/T, Western Union,Paypal,Crdit Card.Trade asscurance
Supply Ability: 100rolls per months
Contact Now
Detailed Product Description
Features: Low Elongation,acit Resistant,corrosion Resistant. Material: SUS 304N,304HP,316.
Roll Width: 40"(1020mm),48"(1220mm),60"(1530mm) Roll Length: Staindard Size 30meters
Certification: ISO9001:2008,SGS Brand Name: R&K

Super Precision High Tension Silk Screen Printing Mesh Stainless Steel Material For PCB Printing





SS printing mesh is widely used in curver surface subject,like the Printed Circuit Board,Glass,Creamic,Metal,Rubber,Plastic and so on.it is very suitable for use harsh environments,multicolor overprint,Batch printing ect..



Application For Screen Printing Mesh Stainless Steel Material:



For ceramic printing industry;

For glass printing industry;

For touch screen printing;

For PCB(Printed Circuit Board);

For solar battery printing;

For LCD printing;

For FPD printing;

For electronic components printing;

For thick film printing;

......



Introduce For The Screen Printing Mesh Stainless Steel Material:



Material SUS 304N,304HP,316
Mesh count 80mesh/inch-500mesh/inch
Wire diameter 18micron-160 micron
Standard width 40"(1020mm),48"(1220mm),60"(1530mm),standard size,other wide we can customized for you.
Standard length 30 meters
Weave style plain weave . 1:1
Mesh thickness Please refer to our specification







Features For Screen Printing Mesh Stainless Steel Material:



Material: SUS 304N,304HPS,316,316L

Weave: Plain wave

Features:

High tension:Much higher tension than common polyester mesh,and this property is very stable;

Super Precision: Uniform wire diameter and aperture with extremely low difference;

Low Elongation: Very small elongation of wire mesh at high tension;

High Flexibility: The wire mesh will not lose elasticity at extreme tension;

High corrosion resistance: The excellent corrosion resistance of stainless steel wire exceeds polyester fiber.

Non-electrostatic: To avoid affects of non-electrostatic for printing and ensure the safety of printing;

Good Heat-melting Resistance: Special features of steel wire mesh.Suitable for heat-melting ink;

Good Solvent Resistance: To avoid the affects of any solvents to wire mesh and to ensure the safety of printing.





Specification For Stainless Steel Wire Mesh:



Mesh/ inch

Wire diameter

(µm)

opening (%) Aperture (µm)

Mesh thickness

(µm)

One time calender

(µm)

Two

time calender

(µm)

Suggestion tension (N/CM)

Ink thickness

(cm3/㎡)

40 160 56 475 300--320 / / / 179.1
50 140 52 368 265--280 / / / 146.9
60 120 51 303 230--245 / / / 123.2
80 120 39 198 235--245 / / / 92.9
80 90 52 228 175--180 / / / 93.1
80 50 71 268 95--100 / / / 71.0
100 100 37 154 195--205 / / / 77.2
120 80 39 132 155--165 / / / 65.8
150 60 42 109 115--124 / / / 50.0
165 45 50 109 88--93 / / / 45.1
165 50 46 104 97--105 / / / 45.6
180 45 48 96 88--93 / / / 41.5
180 50 42 91 96-104 / / / 41.7
200 40 47 87 82--83 66-68 62-64 49-53 37.5
200 50 37 77 98--103 86-88 84-86 49-52 36.8
230 35 46 75 81--83 56-58 55-57 47-50 28.8
250 40 37 62 69--74 66-68 65-67 47-50 23.2
250 30 50 72 63--64 49-50 45-47 45-48 29.8
250 35 43 67 77--78 58-59 54-56 45-48 31.2
270 35 40 59 71--75 60-62 57-59 42-45 30.1
300 30 42 55 67--68 51-52 47-49 40-45 28.8
325 30 38 48 62--66 50-52 49-51 40-42 28.2
325 28 41 50 63--64 49-51 45-47 40-42 26.4
325 23 50 55 49--53 38-40 35-37 39-40 25.4
350 25 43 48 46--49 42-43 39-41 38-40 18.7
400 18-19 51.3 46 536-40 27-28 25-27 38-40 20.0
400 23 41 41 50--54 39-40 35-37 37-40 22.0

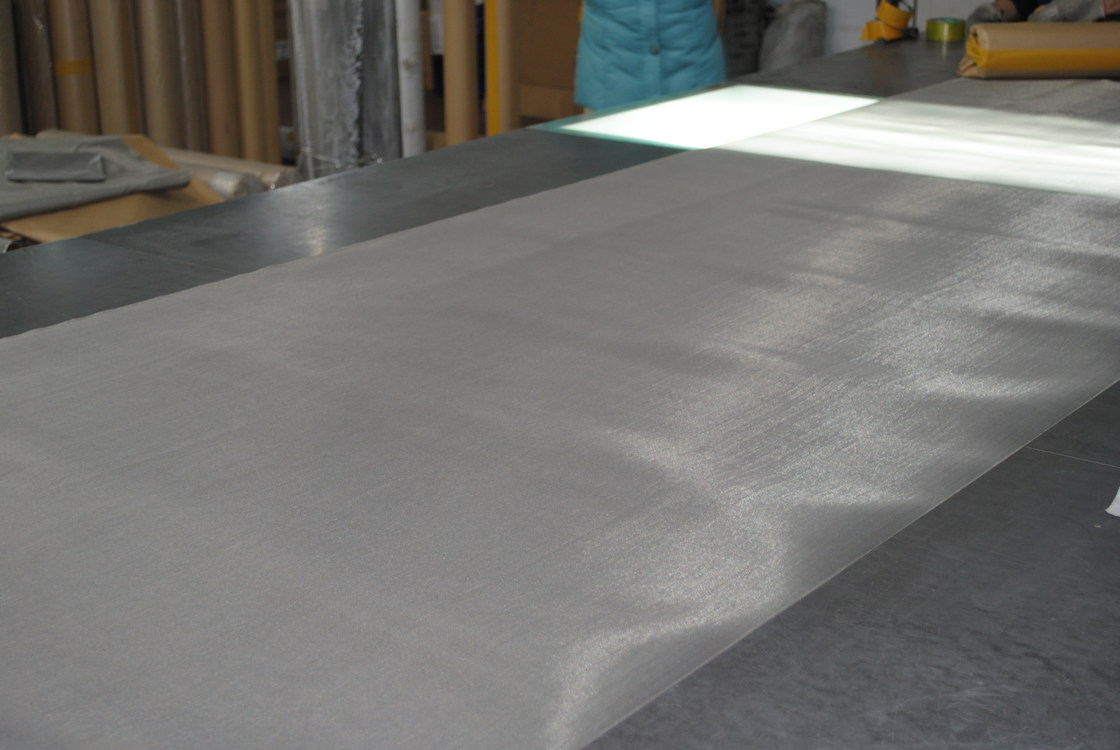

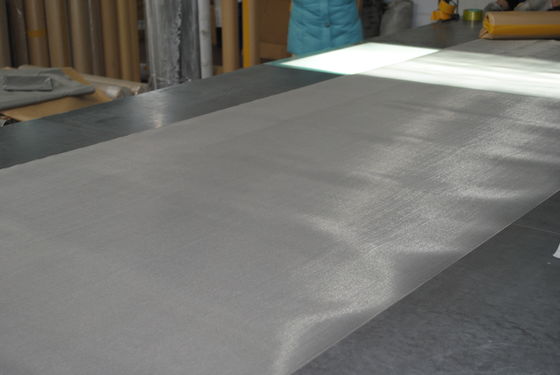

Photos for the Stainless Steel Wire Mesh:



High quality Stainless steel wire



High Tension Silk Screen Printing Mesh / Stainless Steel Bolting Cloth



High tension stainless steel screen printing mesh



High Tension Silk Screen Printing Mesh / Stainless Steel Bolting Cloth

High Tension Silk Screen Printing Mesh / Stainless Steel Bolting Cloth

High Tension Silk Screen Printing Mesh / Stainless Steel Bolting Cloth

High Tension Silk Screen Printing Mesh / Stainless Steel Bolting Cloth

High Tension Silk Screen Printing Mesh / Stainless Steel Bolting Cloth









The Warehouse Of The Stainless Steel Steel Wire Mesh



High Tension Silk Screen Printing Mesh / Stainless Steel Bolting Cloth







FAQ for Stainless Steel Screen Printing Mesh:



A: How to got your sample?

B: Please send us your courier account,or pay for us the freight cost,we can send to you directly.



A: Are you trade or manufacturer?

B: We are the manufacturer for this stainless steel screen printing mesh,our factory located in Anping county.



A: How to arrive your plant?

B: We can pick up you from your hotel,or the airport & train station.



A: When you can ship out the goods?

B: If you need more,we can ship out within 15days,if you need small,we can ship out within 5days.



A: Which payment terms do you have?

B: T/T,Western Union,Paypal,L/C,Trade asscurance,Credit card.please choose the convenient way for you.







Certification for the Stainless Steel Screen Printing Mesh:



High Tension Silk Screen Printing Mesh / Stainless Steel Bolting Cloth

High Tension Silk Screen Printing Mesh / Stainless Steel Bolting Cloth

High Tension Silk Screen Printing Mesh / Stainless Steel Bolting Cloth
