305 Mesh Thermal Screen Printing Mesh Roll Bolting Cloth Mesh Plain Weave Type

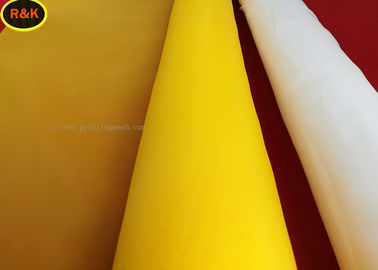

Large Image : 305 Mesh Thermal Screen Printing Mesh Roll Bolting Cloth Mesh Plain Weave Type

Product Details:

Place of Origin:	Hebei , China
Brand Name:	R&K
Certification:	FDA
Model Number:	R&K

Payment & Shipping Terms:

Minimum Order Quantity:	50 meters
Price:	negotiation
Packaging Details:	Packing for 305 mesh screen thermal screen printing yellow mesh: PVC bag inside for each roll, then carton, then waterproof bag outside.
Delivery Time:	Within 8 days
Payment Terms:	L/C,T/T,Trade Assurnce , Paypal, Western Union
Supply Ability:	15000 Meter/Meters per Week

Contact Now

Detailed Product Description

Material:	100%polyester	Mesh Count:	18mesh-420mesh
Standard Colour:	White,Yellow	Standard Width:	0.6-3.65m
Standard Length:	30m-70m	Weave Type:	Plain
High Light:	thermal screen roll , stainless steel bolting cloth

305 Mesh Screen Thermal Screen Printing Yellow Mesh , 100%polyester

Descriptions of thermal screen printing yellow mesh:

1.Material: 100% Polyester
2.Mesh count: 18mesh(7T)-420mesh(165T)
3.Width: 0.6m-3.65m
4.Length: 30-70m per roll
5.Thread diameter:31-350um
6.Color: white/yellow/orange
7.Packing: PVC bag inside for each roll, then carton,then waterproof bag outside

Advantages of thermal screen printing mesh:

1.Good diathermancy
2.High air permeability
3.Acid resistance and Alkali resistance
4.Long working life
5.Hard wear
6.Imported weaving machines from Switzerland and Italy.
7.Faster turnaround time from the screen room to the pressroom

Specification of thermal screen printing mesh:

Mesh Count Diameter (Mesh/inch μm)	Mesh Count (Mesh /Inch)	Weave	Aperture (μm)	Thread Diameter (μm)	Opening (%)	Thickness(μm)	Thickness Tollerance (+/- μm)	Theoretical lnk(cm3/m2)	Weight (g/m2)
13-150PW(SL)	33	1:1	619	150	64	300	14	128	60
21-80pw(S)	55	1:1	296	80	69	120	9	79	35
21-150PW(SL)	55	1:1	326	150	46	260	14	118	121
24-100PW(T)	60	1:1	316	100	57	136	11	65	81
28-140PW(SL)	70	1:1	217	140	40	195	13	76	125
32-55PW(S)	81	1:1	257	55	67	103	6	67	28
32-64PW(S)	81	1:1	248	64	63	95	6	56	32
32-100PW(T)	81	1:1	212	100	45	165	8	73	75
36-90PW(T)	92	1:1	183	90	44	150	8	65	68
39-55PW(S)	100	1:1	177	55	56	88	6	55	30
40-80PW(T)	103	1:1	166	80	44	133	7	59	60
43-80PW(T)	110	1:1	149	80	41	130	7	53	64
47-45PW(S)	120	1:1	166	45*2	61	80	6	42	40
47-55PW(S)	120	1:1	152	55	51	88	6	48	34
48-70PW(T)	122	1:1	133	70	41	115	6	47	55
53-45PW(S)	135	1:1	143	45*2	57	79	7	41	46
53-55PW(S)	135	1:1	133	55	50	86	6	42	40
54-64PW(T)	137	1:1	115	64	39	100	5	39	51
54-70(PW)HD	137	1:1	109	70	35	116	6	40	62
61-64PW(T)	155	1:1	90	64	31	101	5	30	58
64-55PW(S)	160	1:1	98	55	38	98	5	36	48
64-64PW(T)	160	1:1	85	64	30	115	6	34	61
68-55PW(S)	175	1:1	85	55	34	85	4	28	48
68-64PW(T)	175	1:1	78	64	28	105	5	30	65
72-48PW(S)	182	1:1	90	48	36	78	5	33	39
72-55PW(T)	182	1:1	85	55	30	90	5	27	51
77-48PW(S)	195	1:1	77	48	35	80	4	28	42
77-55PW(T)	195	1:1	67	55	27	88	4	24	55
80-48PW(T)	200	1:1	72	48	33	74	4	25	56
90-48PW(T)	230	1:1	56	48	25	78	4	19	50
100-40PW(T)	255	1:1	58	40	33	63	3	21	37
110-40PW(HD)	280	1:1	48	40	27	64	3	17	40
120-31PW(S)	305	1:1	49	31	35	49	3	17	26
120-34PW(T)	305	1:1	45	34	30	55	3	16	35
120-40PW(HD)	305	1:1	37	40	20	63	3	13	44
130-34PW(T)	330	1:1	40	34	27	55	3	15	37
140-31PW(S)	355	1:1	36	31	26	48	2	12	30
140-34PW(T)	355	1:1	31	34	20	53	3	10	39
140-34TW(T)	355	1:1	33	34	21	56	3	12	41
150-31PW(S)	380	1:1	32	31	23	49	3	11	32
150-34PW(T)	380	1:1	23	34	13	55	3	6.5	42
165-34PW(S)	420	1:1	23	31	15	48	2	7	36
