Professional 60 Mesh Stainless Steel Screen Material High Corrosion Resistance For LCD

Certification
Good quality Screen Printing Mesh for sales
Good quality Screen Printing Mesh for sales
I'm Online Chat Now

Professional 60 Mesh Stainless Steel Screen Material High Corrosion Resistance For LCD

China Professional 60 Mesh Stainless Steel Screen Material High Corrosion Resistance For LCD supplier
Professional 60 Mesh Stainless Steel Screen Material High Corrosion Resistance For LCD supplier Professional 60 Mesh Stainless Steel Screen Material High Corrosion Resistance For LCD supplier Professional 60 Mesh Stainless Steel Screen Material High Corrosion Resistance For LCD supplier Professional 60 Mesh Stainless Steel Screen Material High Corrosion Resistance For LCD supplier

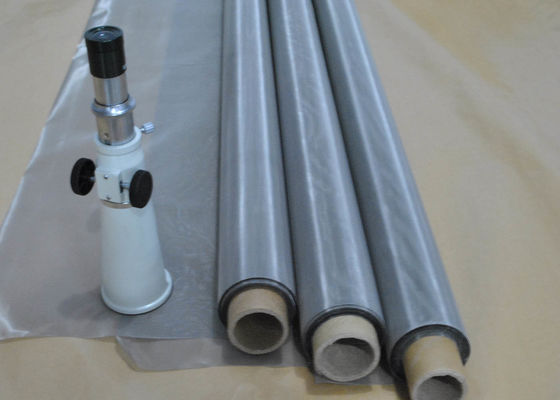

Large Image :  Professional 60 Mesh Stainless Steel Screen Material High Corrosion Resistance For LCD

Product Details:

Place of Origin: Hebei , China
Brand Name: R&K
Certification: FDA
Model Number: R&K-LLS

Payment & Shipping Terms:

Minimum Order Quantity: 1 square meter
Price: negotiation
Packaging Details: waterproof paper inside,plywood case outside
Delivery Time: in 5 days for goods in stock
Payment Terms: L/C,T/T,Western Union,Paypal,Trade Assurance
Supply Ability: 3000 square meter per month
Contact Now
Detailed Product Description
Features: Good Solvent Resistance Material: 316L
Color: Primary Colors Size: Usually 1.02meter*30meter Per Roll
Weave: Plain Weave Thread Diameter: 0.02-2mm

Professional 60 Mesh Stainless Steel Screen Material High Corrosion Resistance For LCD





Description of the Steel Screen Printing Mesh



Stainless steel mesh Through the use of carefully selected special alloy materials, and the use of advanced textile technology to make the stainless steel printing network structure is very compact, at the same time to ensure the thickness tolerance of high pressure within the limits of tolerance, an extension of the net, accuracy, therefore more suitable for high density print


Material SUS 304N
Weave Plain weave
Features Non-electrostatic
Aperture size 41-268micron
wire diameter 0.018-0.02mm
Features Good solvent resistance


Featuers of the Steel Screen Printing Mesh :



High tension.Much higher tension than common polyester mesh,and this property is very stable.

Low Elongation:Very small elongation of wire mesh at igh tension.

High-Flexibility:The wire mesh will not lose elasticity at extremely tension.

Non-electrostatic:To avoid affects of nonelectrostatic for printing and ensure the safety of printing.

Good Heat-melting Resistant :Special features of steel wire mesh.Suitable for heat-melting ink.

High-Corrosion Resistance:The excellent corrosion resistance of stainless steel wire exceeds polyester fiber.



Specification of the Steel Screen Printing Mesh :



Specification Mesh/inch Wire Dia(μm) Open area Ratio(%) Apereture (μm) Apereture(μm) Calendered Thickness
(μm)
Theoretical lnk(cm^/m^)
200*200*40 200 40 46.9 87 82-84 As order 43
200*200*50 200 50 37 77 98-103 As order 42
230*230*35 230 35 46.7 75 72-76 50-67 37
250*250*40 250 40 36.8 62 82-86 50-80 34
250*250*30 250 30 49.7 72 64-68 40-58 30
250*250*35 250 35 43 67 76-78 57-70 32
270*270*35 270 35 39.4 59 76-80 58-70 30
300*300*30 300 30 41.7 55 66-68 4-59 28
325*325*30 325 30 38 48 66-68 45-60 24
325*325*28 325 28 41.2 50 63-64 40-56 26.4
325*325*23 325 23 49.8 55 49-53 37-41 25.4
350*350*35 350 25 43 48 52-54 41-50 18.7
400*400*23 400 23 40.7 41 50-54 35-48 19
400*400*18 400 18 51.3 46 36-40 28-30 20
500*500*18 500 18 41.7 33 36-40 23-29 15.3



Application of the Steel Screen Printing Mesh :



Solar battery,

Pinted Circuit Board(PCB),

Chip Electrical components,Flat Panel Display,
Liquid Crystal Display(LCD),
Plasma Display Panel(PDP) ECT.



Professional 60 Mesh Stainless Steel Screen Material High Corrosion Resistance For LCD
