HEBEI REKING WIRE MESH CO.,LTD
Screen Printing Mesh & Filter Mesh With Stainless Steel ,Polyester and Nylon Material.Screen Printing Material
HEBEI REKING WIRE MESH CO.,LTD
Screen Printing Mesh & Filter Mesh With Stainless Steel ,Polyester and Nylon Material.Screen Printing Material
Product Details:
Payment & Shipping Terms:
|
| Features: | High Tension | Material: | Domestic（SUS304，SUS316，SUS304L,SUS316L） |
|---|---|---|---|
| Weave: | Plain Weave | Aperture: | 0.033-0.475mm |
| Length: | 30m/roll | Color: | Primary Colors |

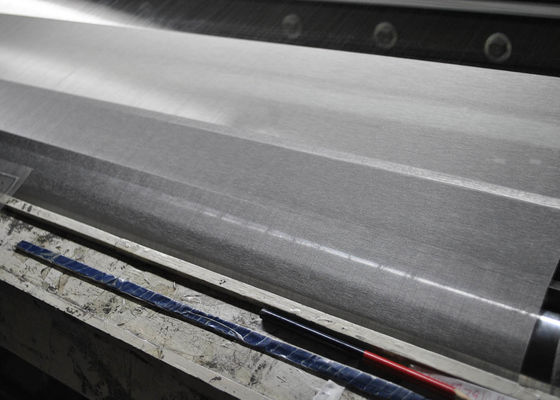

High Tension Stainless Steel Mesh Fabric , 80-400 Micron Stainless Steel Mesh
Description of Stainless Steel Screen Printing Mesh:
| material | Domestic(SUS304,SUS316,SUS304L,SUS316L) |
| weave type | plain weave |
| Aperture | 0.033-0.475mm |
| size per roll | usually 1meter or 1.2meter wide,30 or 50 meter per roll |
| Features | High tension |
The Roll Plain Weave Stainless Steel Screen Printing Mesh Non-Electrostatic 80-400mesh/inch
hole must be square,the clip angle of near two longitude is 90,the mesh surface is flat,there ia not connection, the mesh hole is equality, the friction strength is high, acid-resiting,alkali-resisting, the strength do not change, for the influencing of the ultraviolet radiation, stainless printing wire cloth was connonly called ultra-thin wire cloth.
Featuers of Stainless Steel Screen Printing Mesh:
High tension.
Super precision.
Low enlongation.
High flexibility.
High corrosion resistant.
Non-electrostatic:To avoid affects of nonelectrostatic for printing and ensure the safety of printing.
Good heat-melting resistant
Good solven resistant:To avoid the affects of any solvents to wire mesh and to ensure the safety of printing.
Specification of Stainless Steel Screen Printing Mesh:
| Specification | Mesh/inch | Wire Dia (mm) |
Open area Ratio(%) |
Apereture (mm) |
Thickness(mm)
|
Calendered Thickness (mm)
|
Theoretical lrk(cm^/m^) |
| 40*40*0.16 | 40 | 0.16 | 56.0 | 0.475 | 0.3-0.32 | As order | 179.1 |
| 60*60*0.12 | 60 | 0.12 | 51.3 | 0.303 | 0.23-0.245 | As order | 123.2 |
| 80*80*0.12 | 80 | 0.12 | 39.0 | 0.198 | 0.235-0.245 | As order | 92.9 |
| 80*80*0.09 | 80 | 0.09 | 52.0 | 0.228 | 0.175-0.18 | As order | 103.0 |
| 80*80*0.05 | 80 | 0.05 | 71.0 | 0.268 | 0.095-0.1 | As order | 78.0 |
| 100*100*0.1 | 100 | 0.1 | 36.8 | 0.154 | 0.195-0.205 | As order | 77.2 |
| 120*120*0.08 | 120 | 0.08 | 39.0 | 0.132 | 0.155-0.165 | As order | 65.8 |
| 150*150*0.06 | 150 | 0.06 | 41.7 | 0.109 | 0.115-0.124 | As order | 50.0 |
| 165*165*0.035 | 165 | 0.035 | 60.0 | 0.119 | 0.07-0.075 | As order | 48.0 |
| 165*165*0.045 | 165 | 0.045 | 50.1 | 0.109 | 0.088-0.093 | As order | 45.1 |
| 165*165*0.05 | 165 | 0.05 | 45.6 | 0.104 | 0.097-0.105 | As order | 45.6 |
Application of Stainless Steel Screen Printing Mesh:
1. Chemical filtering
2. Food and beverage for food filtering
3. Mining,main use coarse mesh,such as crimped wire mesh
4. Chip Electrical components,
5. Plasma Display Panel(PDP) ECT.
6. Architectural ,advise crimped wire mesh and coarse wire mesh used as protection mesh
7. Solar battery,
