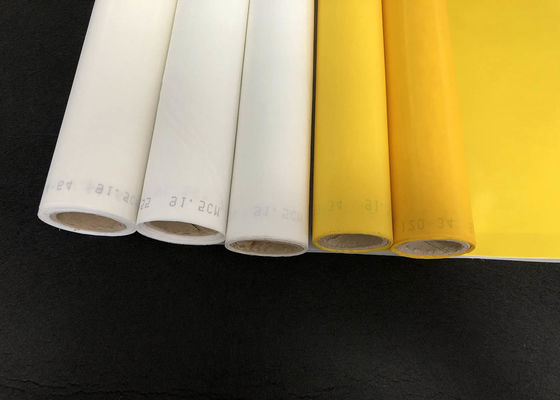

Good Anti Static 110 Mesh Screen , Screen Printing Fabric Mesh High Modulus

Certification
Good quality Screen Printing Mesh for sales
Good quality Screen Printing Mesh for sales
I'm Online Chat Now

Good Anti Static 110 Mesh Screen , Screen Printing Fabric Mesh High Modulus

China Good Anti Static 110 Mesh Screen , Screen Printing Fabric Mesh High Modulus supplier
Good Anti Static 110 Mesh Screen , Screen Printing Fabric Mesh High Modulus supplier Good Anti Static 110 Mesh Screen , Screen Printing Fabric Mesh High Modulus supplier

Large Image :  Good Anti Static 110 Mesh Screen , Screen Printing Fabric Mesh High Modulus

Product Details:

Place of Origin: Hebei ,China (Mainland)
Brand Name: R&K
Certification: SGS,FDA,MSDS
Model Number: R&K-LSS

Payment & Shipping Terms:

Minimum Order Quantity: 100 meters
Price: negotiation
Packaging Details: Poly bag inside and the carton box outside.
Delivery Time: within 10-15days.
Payment Terms: L/C, T/T, Western Union,Paypla,Trade asscurance,Credit Card
Supply Ability: 2000 meter per week
Contact Now
Detailed Product Description
Thread Diameter: 55micron Roll Width: Max Width 3.05meter
Mesh Count: 40-420mesh Monofilament: Yes
Brand Name: R&K Color: White,yellow,red,other Color We Can Customized For You.

61T Micron 77T Micron Textile Textile 100 % Monofilament 110 Screen Printing Mesh





Description of the 110 screen printing mesh:



The commonly used polyester screen produced by R&k company is 13t-180t, which is used in the printing industry. The grid count is usually from 23T to 165T.100 percent of the mesh is flat, the mesh is able to filter water-based ink and oil-based ink, and very easy to use.If you want to be greener and greener, water-based ink is the best.Filter other product oil-based ink, the price is very good and beautiful.



Thread diameter 55micron
Roll width Max width 3.05meter
Application For Liquid Crystal Display
Monofilament Yes
Weave  Plain weave



Features of the 110 screen printing mesh:

  • High tension threshold and breaking point
  • high modulus,low elongation monofilament polyester yarn
  • Resist to chemicals, abrasion, heat and moisture
  • Minimal tension loss during stretching process
  • Improved registration due to stable fabric tension
  • Good antistatic
  • No surface treatment

Specification of polyester screen printing mesh:



Mesh Count
Diameter
(Mesh/inch μm)
Mesh
Count
(Mesh
/Inch)
Weave Aperture
(μm)
Thread
Diameter
(μm)
Opening
(%)
Thickness(μm) Thickness
Tollerance
(+/- μm)
Theoretical
lnk(cm3/m2)
Weight
(g/m2)
13-150PW(SL) 33 1:1 619 150 64 300 14 128 60
21-80pw(S) 55 1:1 296 80 69 120 9 79 35
21-150PW(SL) 55 1:1 326 150 46 260 14 118 121
24-100PW(T) 60 1:1 316 100 57 136 11 65 81
28-140PW(SL) 70 1:1 217 140 40 195 13 76 125
32-55PW(S) 81 1:1 257 55 67 103 6 67 28
32-64PW(S) 81 1:1 248 64 63 95 6 56 32
32-100PW(T) 81 1:1 212 100 45 165 8 73 75
36-90PW(T) 92 1:1 183 90 44 150 8 65 68
39-55PW(S) 100 1:1 177 55 56 88 6 55 30
40-80PW(T) 103 1:1 166 80 44 133 7 59 60
43-80PW(T) 110 1:1 149 80 41 130 7 53 64
47-45PW(S) 120 1:1 166 45*2 61 80 6 42 40
47-55PW(S) 120 1:1 152 55 51 88 6 48 34
48-70PW(T) 122 1:1 133 70 41 115 6 47 55
53-45PW(S) 135 1:1 143 45*2 57 79 7 41 46
53-55PW(S) 135 1:1 133 55 50 86 6 42 40
54-64PW(T) 137 1:1 115 64 39 100 5 39 51
54-70(PW)HD 137 1:1 109 70 35 116 6 40 62
61-64PW(T) 155 1:1 90 64 31 101 5 30 58
64-55PW(S) 160 1:1 98 55 38 98 5 36 48
64-64PW(T) 160 1:1 85 64 30 115 6 34 61
68-55PW(S) 175 1:1 85 55 34 85 4 28 48
68-64PW(T) 175 1:1 78 64 28 105 5 30 65
72-48PW(S) 182 1:1 90 48 36 78 5 33 39
72-55PW(T) 182 1:1 85 55 30 90 5 27 51
77-48PW(S) 195 1:1 77 48 35 80 4 28 42
77-55PW(T) 195 1:1 67 55 27 88 4 24 55
80-48PW(T) 200 1:1 72 48 33 74 4 25 56
90-48PW(T) 230 1:1 56 48 25 78 4 19 50
100-40PW(T) 255 1:1 58 40 33 63 3 21 37
110-40PW(HD) 280 1:1 48 40 27 64 3 17 40
120-31PW(S) 305 1:1 49 31 35 49 3 17 26
120-34PW(T) 305 1:1 45 34 30 55 3 16 35
120-40PW(HD) 305 1:1 37 40 20 63 3 13 44
130-34PW(T) 330 1:1 40 34 27 55 3 15 37
140-31PW(S) 355 1:1 36 31 26 48 2 12 30
140-34PW(T) 355 1:1 31 34 20 53 3 10 39
140-34TW(T) 355 1:1 33 34 21 56 3 12 41
150-31PW(S) 380 1:1 32 31 23 49 3 11 32
150-34PW(T) 380 1:1 23 34 13 55 3 6.5 42
165-34PW(S) 420 1:1 23 31 15 48 2 7 36



Application of the 110 screen printing mesh:



For Textile printing;
For Garment(T-shirt) printing;
For CD/DVD printing;
For Glass printing ;
For Ceramic printing ;
For Electronics components printing;
And so on...
