High Flexibility Stainless Steel Screen Printing Mesh / Stainless Steel Mesh Cloth

Certification
Good quality Screen Printing Mesh for sales
Good quality Screen Printing Mesh for sales
I'm Online Chat Now

High Flexibility Stainless Steel Screen Printing Mesh / Stainless Steel Mesh Cloth

China High Flexibility Stainless Steel Screen Printing Mesh / Stainless Steel Mesh Cloth supplier
High Flexibility Stainless Steel Screen Printing Mesh / Stainless Steel Mesh Cloth supplier High Flexibility Stainless Steel Screen Printing Mesh / Stainless Steel Mesh Cloth supplier High Flexibility Stainless Steel Screen Printing Mesh / Stainless Steel Mesh Cloth supplier High Flexibility Stainless Steel Screen Printing Mesh / Stainless Steel Mesh Cloth supplier

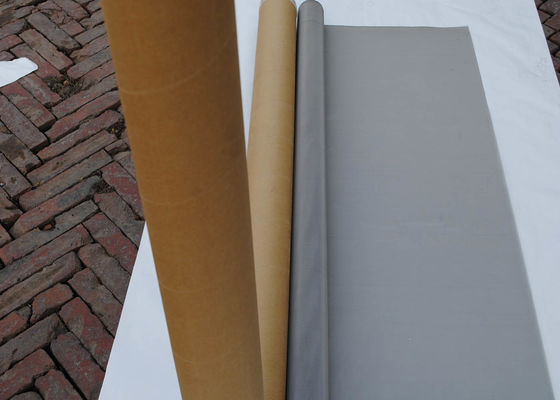

Large Image :  High Flexibility Stainless Steel Screen Printing Mesh / Stainless Steel Mesh Cloth

Product Details:

Place of Origin: Hebei,China
Brand Name: R&K
Certification: FDA SGS
Model Number: R&K-WEL10173

Payment & Shipping Terms:

Minimum Order Quantity: 50meters
Price: negotiatable
Packaging Details: Inside with a paper tube,outside with piece of waterproof paper and then a plastic bag and finally with a pallet.or pack it as your requirements.
Delivery Time: Within 8 work days
Payment Terms: L/C,T/T,Paypal,Western Union,Trade assurance.
Supply Ability: 10000 Square Meter per month
Contact Now
Detailed Product Description
Features: High Tension / High Flexibility Material: SUS304N,304HP,316,316L,304L
Applications: Ink Weave Style: Plain Weave
Mesh/inch: 3-400mesh Width: Max 3.05m

High Flexibility Stainless Steel Screen Printing Mesh / Stainless Steel Mesh Cloth





Description of stainless steel  wire mesh:

     Stainless Steel Wire Clothes for Screen Printing is used in many widely fields, such as medical equipment electronics package, liquid crystal device, SMD, idea for manufacturing in high precision wire mesh screen printing technology for printed circuit board. Tensile strength 1000-1100N/mm2, 600-800N/mm2 for strength yield point for special for high-tensile stainless steel wire, and mesh with uniform thickness and guaranteed mesh size uniformity to be essential for high precise stainless steel wire cloth.



material  SUS304N,304HP,316,316L,304L
weave type plain weave
size per roll usually 30 or 50 meter per roll
wire diameter 0.018-0.02mm
aperture size 41-268micron
hole shape square hole





Features of stainless steel wire mesh:

  • High tension.Much higher than common polyester mesh,and this property is very stable
  • Super Precision.Uniform wire diameter and aperture with extremely low difference
  • Low Elongation.Very small elongation of wire mesh at high tension
  • High Flexbility.The wire mesh will not lose elasticity at extreme tension
  • High Corrosion Resistance.the excellent corrosion resistance of stainless steel wire exceeds polyester fiber
  • Non-electrostatic.To avoid affects of nonelectrostatic for printing and ensure the safety of printing
  • Good Heat-melting Resistance.Special features of steel wire mesh.Suitable for heat-melting ink
  • Good Solvent Resistance.To avoid the affects of any solvents to wire mesh and to ensure the safety of printing

Application of stainless steel wire mesh:



Stainless steel screen printing is suitable for direct platemaking, surface is surface substrate, such as: glass, ceramics, metal, plastic, rubber, printing circuit, etc.Especially suitable for use in harsh environments, multicolor overprinter, mass printing, step printing, precision printing.Due to the small size of wire mesh, high mesh can be woven, and the strength and elastic modulus of large, good plane stability.However, the wire mesh is rigid, easy to generate indentation when impacted, poor resilience is not suitable for restoration, and it is not suitable for printing substrate with poor flatness.



Specification of stainless steel wire mesh:



Mesh/inch Wire diameter (inch) Aperture (inch) Open area Weight (Sqaure meter)
1*1 0.080 0.920 92.0 2.0
2*2 0.063 0.437 87.4 2.5
3*3 0.054 0.279 83.8 2.7
4*4 0.047 0.203 81.2 2.7
5*5 0.041 0.159 79.5 2.6
10*10 0.024 0.076 74.9 1.8
12*12 0.020 0.064 75.9 1.5
14*14 0.020 0.052 71.9 1.75
16*16 0.018 0.045 71.2 1.6
18*18 0.016 0.0398 69.4 1.4
20*20 0.009 0.041 76.0 0.57
30*30 0.012 0.0382 63.9 1.35
40*40 0.0098 0.015 72.1 1.25
50*50 0.0079 0.0121 36.7 1.0
60*60 0.0047 0.012 38.7 0.42
80*80 0.0047 0.0107 45.5 0.58
100*100 0.0039 0.006 59.8 0.50
120*120 0.0027 0.0056 67.7 0.29
150*150 0.0024 0.0043 41.6 0.27
165*165 0.0018 0.0043 50 0.167
180*180 0.0019 0.0036 64.5 0.22
200*200 0.0019 0.003 60.6 0.24
250*250 0.0012 0.0028 49.8 0.11
270*270 0.0014 0.0023 60 0.16
300*300 0.0012 0.0022 57 0.13
325*325 0.0014 0.0017 55.3 .0.20
400*400 0.0012 0.0013 52.7 0.18
500*500 0.0009 0.001 50.7 0.15
635*635 0.0007 0.0008 55.0 0.10



High Flexibility Stainless Steel Screen Printing Mesh / Stainless Steel Mesh Cloth
