SGS Plain Weave 8X8 Stainless Woven Wire Mesh

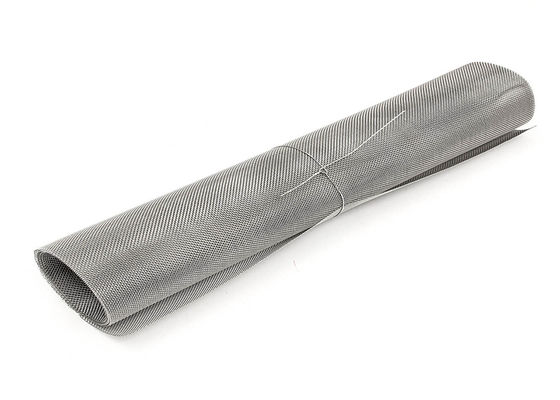

Large Image : SGS Plain Weave 8X8 Stainless Woven Wire Mesh

Product Details:

Place of Origin:	Hebei
Brand Name:	R&K
Certification:	SGS
Model Number:	SS-16

Payment & Shipping Terms:

Minimum Order Quantity:	1 squaremeter
Price:	Negotiate
Packaging Details:	inside with paper tube,Then waterproof paper covered,Finally in a wooden case or pallet
Delivery Time:	5-8 workday
Payment Terms:	L/C, D/P, T/T, Western Union，PayPal
Supply Ability:	1000 squaremeter per week

Contact Now

Detailed Product Description

Name:	SGS Plain Weave Stainless Steel Wire Mesh Filter Mesh Used For Chemical Fiber Industry	Usage:	Chemical Fiber Industry
Weave Style:	Plain Weave	Color:	Silver
Advantage:	High Strength	Hole Shape:	Square Hole
High Light:	SGS stainless woven wire mesh , 8X8 stainless woven wire mesh , 8X8 stainless woven mesh

SGS Plain Weave Stainless Steel Wire Mesh Filter Mesh Used For Chemical Fiber Industry

Descriptions of the mesh:

According to the type of weaving, HEBEI REKING WIRE MESH CO.,LTD'S stainless steel wire mesh can be divided into stainless steel wire mesh opening and Dutch wire mesh Dutch weaving, while square opening stainless steel wire mesh can be further divided into square mesh plain weave and square mesh twill weave .

Stainless steel wire mesh square openings are commonly referred to as woven stainless steel wire meshes with plain weave or twill weave patterns.

Technical Description:

Standard width stainless steel wire mesh: 1 or 48 inches; an additional 4m roll width stainless steel wire mesh can also be provided.

The standard roll length is 30 m or 100' stainless steel wire mesh.

Plain weave description:
Plain weave is a commonly used weaving method. Determine the warp, the length of the screen and the weft so that they are parallel to the width, intersect each other, alternate at the top and below, forming a 90° angle to each other.
The solid woven wire mesh may have square or rectangular openings.

Plain mesh clothing is a basic part of the production of filters, food colanders, chemicals, protective covers, mosquito nets, etc.

Feature of stainless steel mesh

For the stainless steel wire mesh , can used be for filter, and also can be cutted for small pieces,like round, square shape.Then used for the part of the machine.

Application of the mesh:

SGS Plain Weave Stainless Steel Wire Mesh Filter Mesh is used for screening and filtering in acidic or alkaline environments. It is used as a mud net in the petroleum industry, a chemical net in a chemical filling net, a screen in the chemical fiber industry, and a pickling net in the electroplating industry.

Parameter of stainless steel mesh

mesh	Wire Diameter		Aperture		Open Area	Weight
	Wire Diameter		Aperture		Open Area	Weight
	Inch	MM	Inch	MM	(%)	(kg /Square meter)
1x1	0.08	2.03	0.92	23.37	92	2
2X2	0.063	1.6	0.437	11.1	87.4	2.5
3X3	0.054	1.37	0.279	7.09	83.8	2.7
4X4	0.047	1.19	0.203	5.16	81.2	2.7
5X5	0.041	1.04	0.159	4.04	79.5	2.6
8X8	0.02	0.5	0.105	2.675	71	1
9X9	0.02	0.5	0.091	2.32	67.7	1.1
10X10	0.025	0.64	0.075	1.91	74.9	2
12X12	0.02	0.508	0.063	1.6	75.9	1.5
12X12	0.022	0.55	0.062	1.567	54.8	1.815
14X14	0.02	0.508	0.051	1.3	71.9	1.8
14X14	0.0177	0.45	0.054	1.36	75.14	1.417
16X16	0.016	0.4	0.047	1.188	55	1.28
16X16	0.018	0.457	0.0445	1.13	71.2	1.6
18X18	0.017	0.432	0.0386	0.98	69.4	1.6
20X20	0.02	0.24	0.03	0.76	76	0.56
20X20	0.016	0.33	0.034	0.86	72.2	1.1
20X20	0.014	0.35	0.036	0.92	52.5	1.225
20X20	0.016	0.4	0.034	0.87	46.9	1.6
20X20	0.0177	0.45	0.0322	0.82	41.7	2.025
22X22	0.012	0.3	0.034	0.854	54.76	0.99
24X24	0.014	0.35	0.028	0.708	44.77	1.47
30X30	0.014	0.35	0.0195	0.5	34.6	1.84
30X30	0.012	0.305	0.0213	0.54	63.9	1.4
30X30	0.0094	0.24	0.0243	0.62	72.1	0.84
35X35	0.0079	0.2	0.021	0.526	52.5	0.7
35X35	0.0098	0.25	0.0187	0.475	42.92	1.09
40X40	0.0079	0.2	0.017	0.435	46.9	0.8
40X40	0.01	0.254	0.015	0.38	59.9	1.3
40X40	0.014	0.35	0.011	0.285	20.14	2.45
50X50	0.0055	0.14	0.0145	0.368	72.4	0.48
50X50	0.0079	0.2	0.012	0.308	36.76	1
60X60	0.0047	0.12	0.012	0.303	71.6	0.42
60X60	0.0059	0.15	0.0107	0.273	64.5	0.65
60X60	0.007	0.18	0.0096	0.243	33	0.972
80X80	0.047	0.12	0.0078	0.1975	38.7	0.576
80X80	0.0055	0.14	0.0069	0.117	45.5	0.76
100X100	0.0039	0.1	0.006	0.154	36.76	0.5
100X100	0.0045	0.114	0.0055	0.14	55.1	0.59
100X100	0.004	0.102	0.006	0.152	59.8	0.49
120X120	0.0028	0.07	0.0057	0.147	67.7	0.29
120X120	0.003	0.08	0.0052	0.132	38.7	0.384
150X150	0.0024	0.06	0.0043	0.11	64.7	0.26
150X150	0.0028	0.07	0.0039	0.1	58.8	0.38
165X165	0.0019	0.05	0.0041	0.104	67.5	0.2
180X180	0.0019	0.05	0.0035	0.091	64.5	0.22
180X180	0.0024	0.06	0.0031	0.081	57.4	0.32
200X200	0.0019	0.05	0.003	0.077	60.6	0.24
200X200	0.0024	0.06	0.0026	0.067	52.7	0.35
250X250	0.0016	0.04	0.0024	0.0616	60.6	0.2
270X270	0.0016	0.04	0.0021	0.054	57.4	0.21
300X300	0.0016	0.04	0.0018	0.045	53.5	0.23
325X325	0.0014	0.035	0.0017	0.0432	55.3	0.2
400X400	0.0012	0.03	0.0013	0.0335	52.7	0.18
500X500	0.0009	0.025	0.001	0.0258	50.7	0.15
500X500	0.0012	0.03	0.0008	0.0208	16.76	0.225
635X635	0.0007	0.018	0.0008	0.022	55	0.1
