1.2m Width 60um Fine Stainless Steel Mesh For Water Purifier

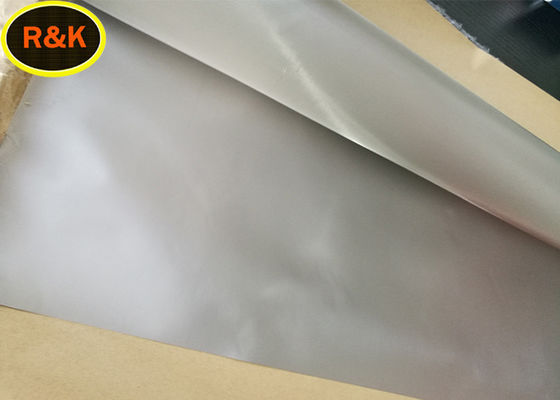

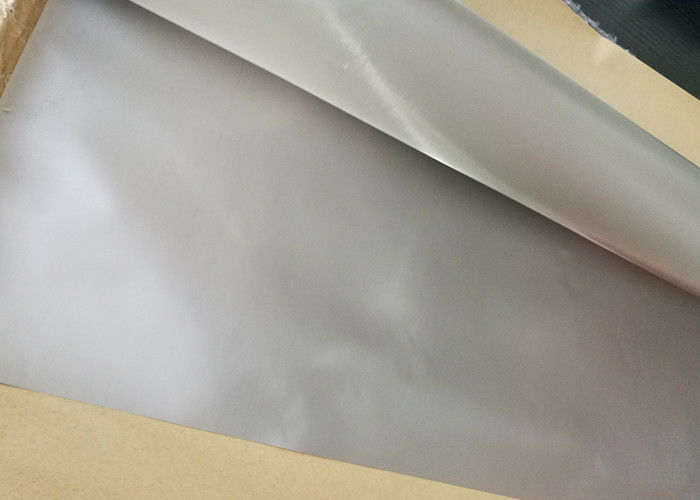

Large Image : 1.2m Width 60um Fine Stainless Steel Mesh For Water Purifier

Product Details:

Place of Origin:	Hebei,China
Brand Name:	R&K
Certification:	SGS
Model Number:	Dutch-03

Payment & Shipping Terms:

Minimum Order Quantity:	1 squaremeter
Price:	Negotiate
Packaging Details:	Inside with paper tube,Then waterproof paper covered,Finally in a wooden case or pallet
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union，PayPal
Supply Ability:	1000 squaremeter per week

Contact Now

Detailed Product Description

Material:	Stainless Steel Wire Mesh	Type:	Weave Wire Mesh
Width:	1m, 1.2m, 1.5m, Or As Requirement	Length:	30m Or As Requirement
Diameter:	0.90.71- 0.0250.015	Usage:	Screen Filter
High Light:	60um fine stainless steel mesh , 1.2m Width fine stainless steel mesh , fine stainless steel mesh SGS

60 um stainless steel Dutch woven wire mesh for Water Purifier Descaling Front Filter

Description of stainless steel Dutch woven wire mesh

The stainless steel Dutch mesh is a type of stainless steel wire mesh. The type of net is because his latitude and longitude wire diameter is different and the number of meshes is different. Reasonable matching of wire diameter and mesh number can achieve the filtration density that can not be achieved by the square network. Therefore, the mat type net is a fine-grained dense mesh, but generally the warp diameter is larger than the weft diameter. The reason why the differential weave is called contrast is because the weft is much thicker than the warp.

Parameters of stainless steel Dutch mesh

plain weave Dutch mesh
Number	Mesh(warpxweft)	Wire diameter (warpxweft)	Aperture (um)	Weight (kg/m2)
32#	8 x 62	0.63mm x 0.45mm	300	5.42
40#	10 x 79	0.50mm x 0.355mm	250	3.16
48#	12 x 64	0.58mm x 0.40mm	280	2.9
55#	14 x 88	0.40mm x 0.30mm	180	2.54
76#	19 x 140	0.315mm x 0.20mm	140	1.88
80#	20 x 300	0.35mm x 0.20mm	-	3.6
95#	24 x 110	0.355mm x 0.25mm	120	2.45
100#	25 x 140	0.28mm x 0.20mm	100	1.95
120#	30 x 150	0.25mm x 0.18mm	80	1.68
140#	35 x 175	0.224mm x 0.16mm	71	1.52
160#	40 x 200	0.20mm x 0.14mm	60	1.40
180#	45 x 250	0.16mm x 0.112mm	56	1.09
200#	50 x 250	0.14mm x 0.11mm	53	1.04
220#	55.5 x 280	0.14mm x 0.10mm	50	0.92
240#	65 x 330	0.11mm x 0.08mm	36	0.71
280#(1)	70 x 350	0.11mm x 0.08mm	35	0.72
280#(2)	70 x 385	0.11mm x 0.07mm	32	0.75
300#	78 x 700	0.11mm x 0.08mm	30	1.39
315#(1)	80 x 400	0.10mm x 0.065mm	40	0.62
315#(2)	80 x 600	0.10mm x 0.06mm	-	0.74
315#(3)	80 x 800	0.15mm x 0.04mm	-	0.77
320#	81 x 780	0.10mm x 0.07mm	30	1.22
354#	90 x 550	0.12mm x 0.05	-	0.667
Width:1m-1.6m

Application of 60 um stainless steel Dutch wire mesh

The products are mainly used for gas, liquid filtration and other medium separation; widely used in precision pressure filters, fuel filtration, vacuum filters, filter materials, aerospace, oil refining, medicine, sugar, petroleum, chemical, chemical fiber, rubber, tires. Manufacturing, metallurgy, food, health research and other industries.

The stainless steel Dutch wire mesh feature

♦ Acid resistant
♦ Alkali resistance
♦ High temperature resistance
♦ Strong tensile and wear resistance
♦ It has stable filtration performance, fineness, high precision and special filtration performance.
