304 20 x 120 Dutch Woven Wire Mesh Cloth, Woven Wire Mesh Filter Acid Resisting

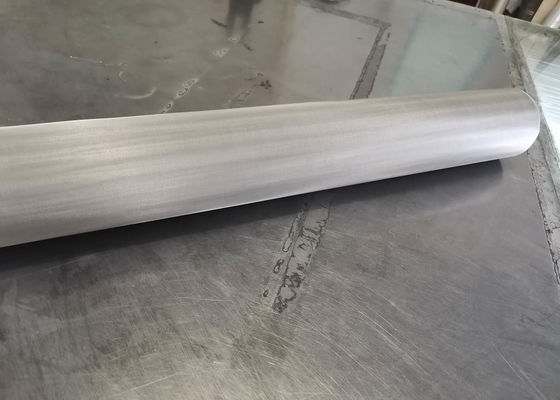

Large Image : 304 20 x 120 Dutch Woven Wire Mesh Cloth, Woven Wire Mesh Filter Acid Resisting

Product Details:

Place of Origin:	Hebei,China
Brand Name:	R&K
Certification:	SGS
Model Number:	Dutch-05

Payment & Shipping Terms:

Minimum Order Quantity:	1 squaremeter
Price:	Negotiate

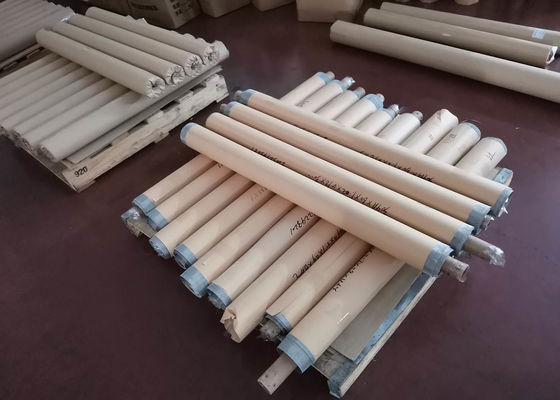

Packaging Details:	Inside with paper tube,Then waterproof paper covered,Finally in a wooden case or pallet
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union，PayPal
Supply Ability:	1000 squaremeter per week

Contact Now

Detailed Product Description

Material:	Stainless Steel Wire Mesh	Type:	Weave Wire Mesh
Hole Shape:	Square Shape	Application:	Filter
Wire Diameter:	0.90.71- 0.0250.015	Feature:	Acid-resisting
High Light:	barbecue wire mesh , decorative metal screen mesh

304 20 x 120 Dutch Woven Wire Mesh Cloth, Woven Wire Mesh Filter Acid Resisting

Description of stainless steel Dutch woven wire mesh:

Woven wire cloth/Dutch woven material (reverse Dutch woven wire mesh): Reverse Dutch woven wire mesh made of stainless steel wire 304, 304L, 316, 316L, duplex stainless steel, 904L, etc.

Application of 60um stainless steel Dutch wire mesh:

Anti-load applications are widely used in aerospace, petroleum, chemical, chemical fiber, machinery, plastic products, scientific research, transportation and other industries.

Features of stainless steel Dutch wire mesh:

It has fine filtering and a highly durable, smooth and shiny surface.

Stainless steel Dutch mesh parameters:

plain weave Dutch mesh
Number	Mesh(warpxweft)	Wire diameter	Aperture	Weight
Number	Mesh(warpxweft)	(warpxweft)	(um)	(kg/m2)
32#	8 x 62	0.63mm x 0.45mm	300	5.42
40#	10 x 79	0.50mm x 0.355mm	250	3.16
48#	12 x 64	0.58mm x 0.40mm	280	2.9
55#	14 x 88	0.40mm x 0.30mm	180	2.54
76#	19 x 140	0.315mm x 0.20mm	140	1.88
80#	20 x 300	0.35mm x 0.20mm	-	3.6
95#	24 x 110	0.355mm x 0.25mm	120	2.45
100#	25 x 140	0.28mm x 0.20mm	100	1.95
120#	30 x 150	0.25mm x 0.18mm	80	1.68
140#	35 x 175	0.224mm x 0.16mm	71	1.52
160#	40 x 200	0.20mm x 0.14mm	60	1.4
180#	45 x 250	0.16mm x 0.112mm	56	1.09
200#	50 x 250	0.14mm x 0.11mm	53	1.04
220#	55.5 x 280	0.14mm x 0.10mm	50	0.92
240#	65 x 330	0.11mm x 0.08mm	36	0.71
280#(1)	70 x 350	0.11mm x 0.08mm	35	0.72
280#(2)	70 x 385	0.11mm x 0.07mm	32	0.75
300#	78 x 700	0.11mm x 0.08mm	30	1.39
315#(1)	80 x 400	0.10mm x 0.065mm	40	0.62
315#(2)	80 x 600	0.10mm x 0.06mm	-	0.74
315#(3)	80 x 800	0.15mm x 0.04mm	-	0.77
320#	81 x 780	0.10mm x 0.07mm	30	1.22
354#	90 x 550	0.12mm x 0.05	-	0.667
Width:1m-1.6m
