Ss316 Plain Weave Dutch Mesh High Density Acid Resistant Liquid Separation

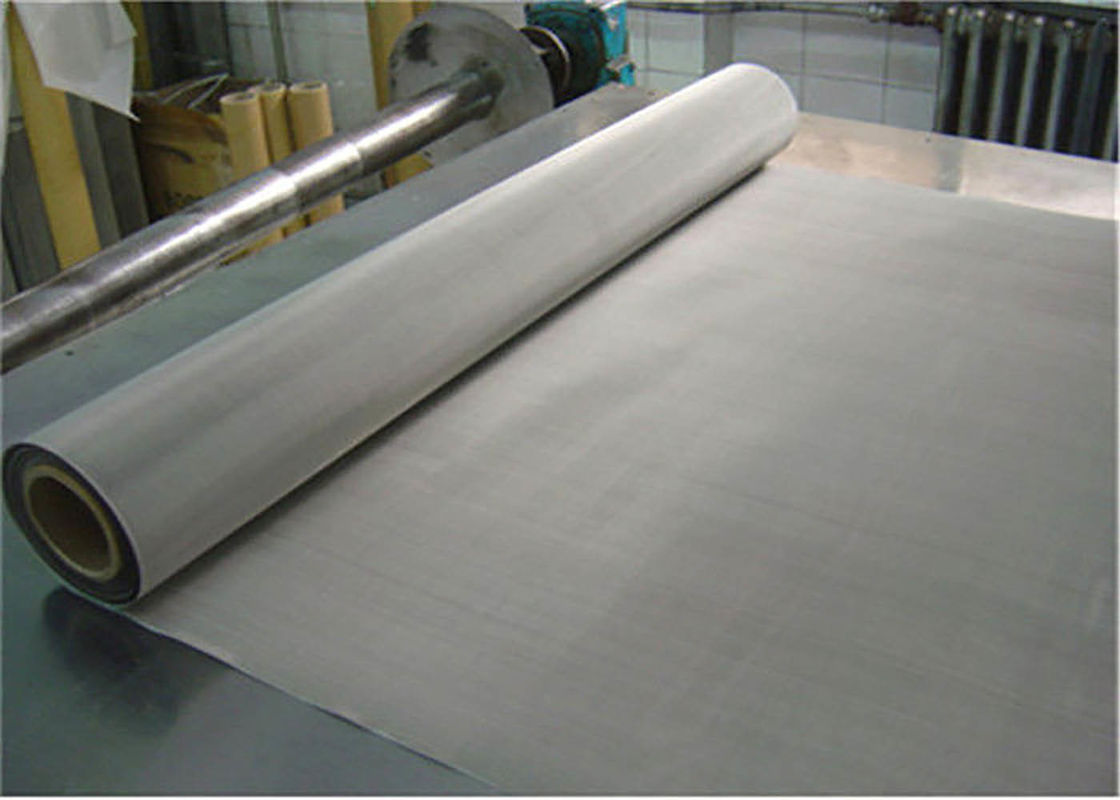

Large Image : Ss316 Plain Weave Dutch Mesh High Density Acid Resistant Liquid Separation

Product Details:

Place of Origin:	Hebei,China
Brand Name:	R&K
Certification:	SGS
Model Number:	Dutch-06

Payment & Shipping Terms:

Minimum Order Quantity:	1 squaremeter
Price:	Negotiate
Packaging Details:	Inside with paper tube,Then waterproof paper covered,Finally in a wooden case or pallet
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union，PayPal
Supply Ability:	1000 squaremeter per week

Contact Now

Detailed Product Description

Material:	Stainless Steel Wire Mesh	Type:	Weave Wire Mesh
Hole Shape:	Square Shape	Application:	Filter
Technique:	Woven	Feature:	Acid-resistant
High Light:	barbecue wire mesh , plain dutch weave mesh

Ss316 Plain Weave Dutch Mesh High Density Acid Resistant Liquid Separation

Description of stainless steel Dutch woven wire mesh

Most filtration applications using wire cloth are best done with Dutch weaving. They have different warp and weft diameters, and the weft yarns are close together to provide excellent strength and high density.
Unlike square knitting, Dutch knitting has no straight mouth. As the fluid continues to travel along the tortuous path, weaving is very effective in releasing and capturing solids from the filter cake.

Application of 60 um stainless steel Dutch wire mesh

Anti-Dutch applications are widely used in aerospace, petroleum, chemical, chemical fiber, machinery, plastic products, scientific research, transportation and other industries.

Feature of the stainless steel Dutch wire mesh

Accurate and uniform aperture
High cleanliness
Excellent formability
High tensile strength
Narrow pore size distribution
Cleanable
Particle-free migration
Good flow rate

Parameters of stainless steel Dutch mesh

plain weave Dutch mesh
Number	Mesh(warpxweft)	Wire diameter	Aperture	Weight
Number	Mesh(warpxweft)	(warpxweft)	(um)	(kg/m2)
32#	8 x 62	0.63mm x 0.45mm	300	5.42
40#	10 x 79	0.50mm x 0.355mm	250	3.16
48#	12 x 64	0.58mm x 0.40mm	280	2.9
55#	14 x 88	0.40mm x 0.30mm	180	2.54
76#	19 x 140	0.315mm x 0.20mm	140	1.88
80#	20 x 300	0.35mm x 0.20mm	-	3.6
95#	24 x 110	0.355mm x 0.25mm	120	2.45
100#	25 x 140	0.28mm x 0.20mm	100	1.95
120#	30 x 150	0.25mm x 0.18mm	80	1.68
140#	35 x 175	0.224mm x 0.16mm	71	1.52
160#	40 x 200	0.20mm x 0.14mm	60	1.4
180#	45 x 250	0.16mm x 0.112mm	56	1.09
200#	50 x 250	0.14mm x 0.11mm	53	1.04
220#	55.5 x 280	0.14mm x 0.10mm	50	0.92
240#	65 x 330	0.11mm x 0.08mm	36	0.71
280#(1)	70 x 350	0.11mm x 0.08mm	35	0.72
280#(2)	70 x 385	0.11mm x 0.07mm	32	0.75
300#	78 x 700	0.11mm x 0.08mm	30	1.39
315#(1)	80 x 400	0.10mm x 0.065mm	40	0.62
315#(2)	80 x 600	0.10mm x 0.06mm	-	0.74
315#(3)	80 x 800	0.15mm x 0.04mm	-	0.77
320#	81 x 780	0.10mm x 0.07mm	30	1.22
354#	90 x 550	0.12mm x 0.05	-	0.667
Width:1m-1.6m
