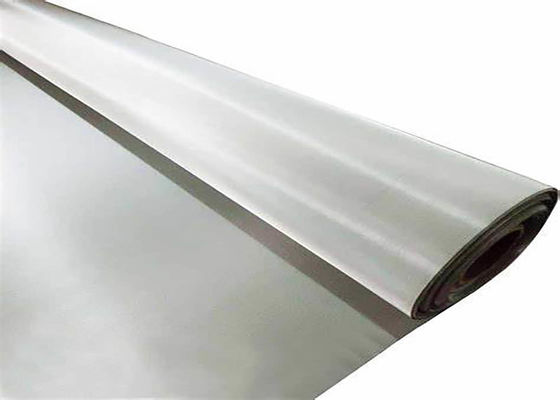

316 High Precision Plain Dutch Wire Cloth Filter , Wire Mesh For Fuel Filter
Description of stainless steel Dutch woven wire mesh
The Dutch wire mesh, one of the most popular thin mesh screens, has a mesh size of 1 x 1 to 500 x 500, a wire diameter of 0.025 mm to 2.03 mm (0.001 inch to 0.08 inch), and a hole diameter of 0.0254 mm to 23.37 mm ( 0.001 inch to 0.92 inch). As the wire diameter becomes smaller, the hole diameter becomes larger. Due to various woven mesh materials and wire mesh weaving patterns, the finished Dutch net has many types and finished woven net products. Therefore, it is a wide range of metal wire mesh products, which have a wide range of applications in the industrial, commercial and decorative fields.
Application of stainless steel Dutch wire mesh
Dutch wire mesh has endless applications in industry, commerce and decoration. Such as filters, sieves, separators, filters, baskets, gas diffusion, drying, car grill nets, vents, building and construction nets, craft paper, decorative nets, fan hoods, filtering liquids and gases, fireplace screens, food Dry, basic ventilation net, gutter protection net, high transparent net, hydraulic filter, insect net, lampshade, oil filter, pest control, safety, separation of fuel from water
Feature of the stainless steel Dutch wire mesh
The structure is stable and firm;
Excellent corrosion resistance, high temperature resistance and wear resistance;
Durable and long lasting;
Both weaving methods show a beautiful surface.
Parameters of stainless steel Dutch mesh
plain weave Dutch mesh | ||||
Number | Mesh(warpxweft) | Wire diameter | Aperture | Weight |
(warpxweft) | (um) | (kg/m2) | ||
32# | 8 x 62 | 0.63mm x 0.45mm | 300 | 5.42 |
40# | 10 x 79 | 0.50mm x 0.355mm | 250 | 3.16 |
48# | 12 x 64 | 0.58mm x 0.40mm | 280 | 2.9 |
55# | 14 x 88 | 0.40mm x 0.30mm | 180 | 2.54 |
76# | 19 x 140 | 0.315mm x 0.20mm | 140 | 1.88 |
80# | 20 x 300 | 0.35mm x 0.20mm | - | 3.6 |
95# | 24 x 110 | 0.355mm x 0.25mm | 120 | 2.45 |
100# | 25 x 140 | 0.28mm x 0.20mm | 100 | 1.95 |
120# | 30 x 150 | 0.25mm x 0.18mm | 80 | 1.68 |
140# | 35 x 175 | 0.224mm x 0.16mm | 71 | 1.52 |
160# | 40 x 200 | 0.20mm x 0.14mm | 60 | 1.4 |
180# | 45 x 250 | 0.16mm x 0.112mm | 56 | 1.09 |
200# | 50 x 250 | 0.14mm x 0.11mm | 53 | 1.04 |
220# | 55.5 x 280 | 0.14mm x 0.10mm | 50 | 0.92 |
240# | 65 x 330 | 0.11mm x 0.08mm | 36 | 0.71 |
280#(1) | 70 x 350 | 0.11mm x 0.08mm | 35 | 0.72 |
280#(2) | 70 x 385 | 0.11mm x 0.07mm | 32 | 0.75 |
300# | 78 x 700 | 0.11mm x 0.08mm | 30 | 1.39 |
315#(1) | 80 x 400 | 0.10mm x 0.065mm | 40 | 0.62 |
315#(2) | 80 x 600 | 0.10mm x 0.06mm | - | 0.74 |
315#(3) | 80 x 800 | 0.15mm x 0.04mm | - | 0.77 |
320# | 81 x 780 | 0.10mm x 0.07mm | 30 | 1.22 |
354# | 90 x 550 | 0.12mm x 0.05 | - | 0.667 |
Width:1m-1.6m |
