HEBEI REKING WIRE MESH CO.,LTD
Screen Printing Mesh & Filter Mesh With Stainless Steel ,Polyester and Nylon Material.Screen Printing Material
HEBEI REKING WIRE MESH CO.,LTD
Screen Printing Mesh & Filter Mesh With Stainless Steel ,Polyester and Nylon Material.Screen Printing Material
Product Details:
Payment & Shipping Terms:
|
Material: | 304 / 316 Stainless Steel | Weave Style: | Plain Weave Dutch Mesh |
---|---|---|---|
Width: | 1m | Length: | 30m |
Diameter: | 0.9*0.71- 0.025*0.015 | Usage: | Plastic Extruder |
Product Name: | Stainless Steel Dutch Mesh | ||
High Light: | barbecue wire mesh,plain dutch weave mesh |

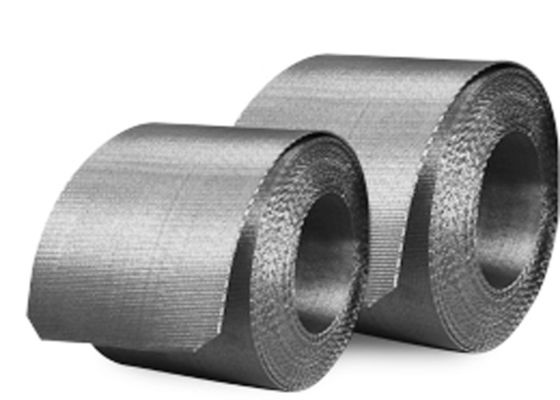

SUS 304 reserve dutch woven wire mesh
Product description
The significant difference in reverse Dutch weaving compared to standard Dutch weave is the thicker warp and less weft. Reverse Dutch woven stainless steel wire cloth provides finer filtration and is widely used in petroleum, chemical, food, pharmaceutical and other fields.
Through continuous technological innovation and improvement, we can produce stainless steel wire mesh of various specifications of reverse Dutch weaving patterns.
Reserve Dutch weaving is made of high-strength stainless steel wire, a special woven wire cloth, which is woven with ordinary Dutch weaving. The warp is much larger than the weft of a specific unit area, and the absolute proportion is larger, so this weaving can provide Better filtration speed.
Used in conjunction with belt or belt continuous screen changers, the plastics industry extrusion process uses an automatic screen changer with a standard length of 120' (36.5 meters) or 60' (18.3 meters).
Product Feature
1. The mesh surface is smooth, high hardness, continuous mesh, no deformation.
2. The advantages of high temperature resistance, corrosion resistance, flexible netting, etc.
3. It has excellent filtering performance, good filtering precision, high load strength and low temperature resistance.
Product Specification
Reverse Dutch Weave Belts | |||
Weave of Type | Mesh/Inch | Wire Diameter mm |
Nominal Micron μm |
TRD | 48 x 10 | 0.50 X 0.50 | 400 |
TRD | 72 x 15 | 0.50 x 0.50 | 300 |
TRD | 132 x 14 | 0.35 x 0.45 | 200 |
TRD | 132 x 18 | 0.35 x 0.44 | 180 |
TRD | 152 x 24 | 0.27 x 0.40 | 160 |
TRD | 152 x 30 | 0.27 x 0.30 | 130 |
RPD | 250 x 40 | 0.15 x 0.25 | 90 |
RPD | 260 x 40 | 0.15 x 0.27 | 125 |
RPD | 280 x 70 | 0.089 x 0.21 | 45 |
RPD | 325 x 39 | 0.13 x 0.24 | 55 |
RPD | 600 x 125 | 0.043 x 0.12 | 20 |
RPD | 720 x 150 | 0.035 x 0.107 | 15 |
