Product Details:
Payment & Shipping Terms:
|
Material: | 304 / 316 Stainless Steel | Weave Style: | Plain Weave Dutch Mesh |
---|---|---|---|
Width: | 1m | Length: | 30m |
Diameter: | 0.9*0.71- 0.025*0.015 | Usage: | Plastic Extruder |
Product Name: | Stainless Steel Dutch Mesh | ||
High Light: | barbecue wire mesh,decorative metal screen mesh |

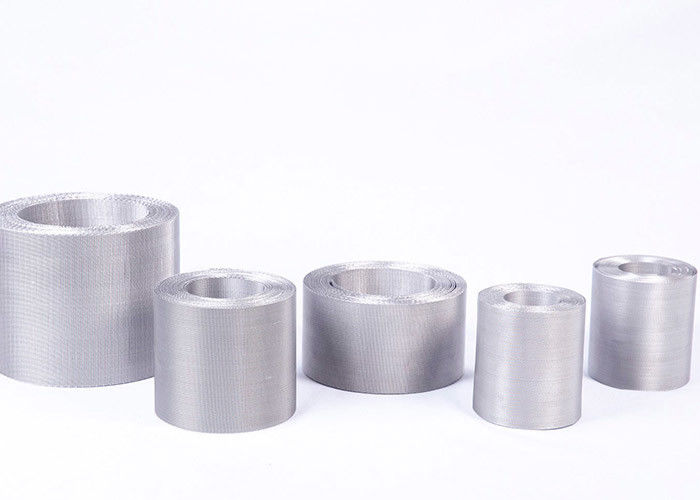

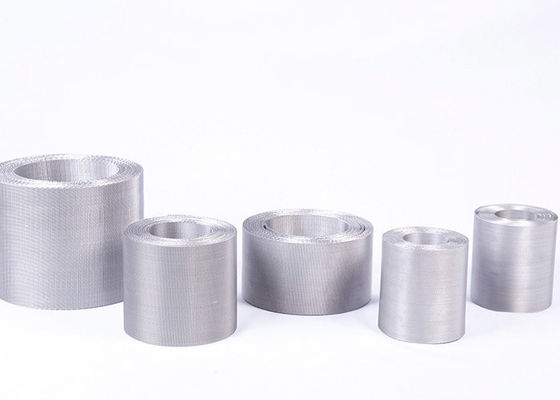

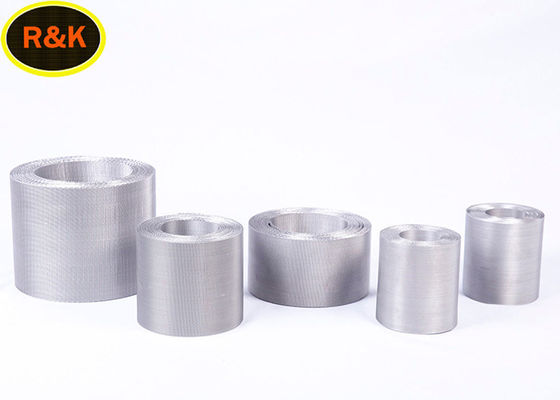

Reverse Dutch woven wire mesh - durable and long lasting
Product description
The reverse Dutch woven mesh is another product designed for filtration. It is mainly made of stainless steel wire and has chemical resistance, alkali resistance and acid resistance, rust and corrosion resistance. It ensures long-lasting filtering performance during use. Reverse Dutch weaving is also available for brass wire, which also has chemical stability for filtration.
Two different sizes of wire diameters, stainless steel wire or brass wire are woven into a reverse Dutch woven wire mesh. It is widely used as a filter disc or other filtration products in petrochemical, aerospace and other fields.
The reverse Dutch woven wire mesh is similar to the Dutch woven wire mesh.
The same material: stainless steel wire or brass wire.
Wire diameters for two sizes: the lines in one direction are thinner and the lines in the other direction are thicker.
Weaving type: plain weave and twill weave.
The reverse Dutch woven wire mesh is different from the Dutch woven wire mesh.
Line direction.
Dutch woven wire mesh. A thinner wire in the warp direction and a thinner wire in the direction of the weft.
Reverse Dutch woven wire mesh. Thicker wire in the weft direction and thinner wire in the warp direction
Product Feature
• Plastic, rubber, oil industry filters.
• High-strength warp for automatic screen changers used in the plastic extrusion industry.
• Wipe the edges after cutting to help track the automatic screen changer.
• Plasma and laser cutting parts help prevent edge line wear.
• 100% inspection of wire cloth for critical applications such as sand screens and aerospace applications.
Product parameters
Reverse Dutch Weave Belts | |||
Weave of Type | Mesh/Inch | Wire Diameter mm |
Nominal Micron μm |
TRD | 48 x 10 | 0.50 X 0.50 | 400 |
TRD | 72 x 15 | 0.50 x 0.50 | 300 |
TRD | 132 x 14 | 0.35 x 0.45 | 200 |
TRD | 132 x 18 | 0.35 x 0.44 | 180 |
TRD | 152 x 24 | 0.27 x 0.40 | 160 |
TRD | 152 x 30 | 0.27 x 0.30 | 130 |
RPD | 250 x 40 | 0.15 x 0.25 | 90 |
RPD | 260 x 40 | 0.15 x 0.27 | 125 |
RPD | 280 x 70 | 0.089 x 0.21 | 45 |
RPD | 325 x 39 | 0.13 x 0.24 | 55 |
RPD | 600 x 125 | 0.043 x 0.12 | 20 |
RPD | 720 x 150 | 0.035 x 0.107 | 15 |
