HEBEI REKING WIRE MESH CO.,LTD
Screen Printing Mesh & Filter Mesh With Stainless Steel ,Polyester and Nylon Material.Screen Printing Material
HEBEI REKING WIRE MESH CO.,LTD
Screen Printing Mesh & Filter Mesh With Stainless Steel ,Polyester and Nylon Material.Screen Printing Material
Product Details:
Payment & Shipping Terms:
|
Material: | Stainless Steel Woven Mesh | Type: | Weave Wire Mesh |
---|---|---|---|
Hole Shape: | Square Shape | Application: | Screen |
Technique: | Woven | Feature: | Acid Resistant |
Product Name: | Dutch Woven Wire Mesh | ||
High Light: | barbecue wire mesh,decorative metal screen mesh |

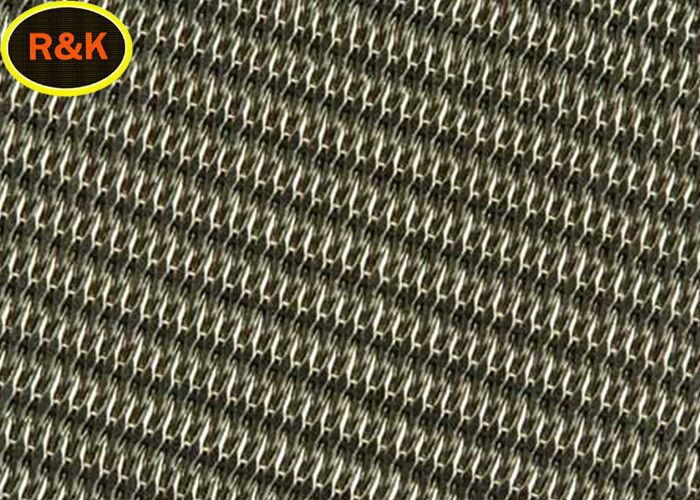

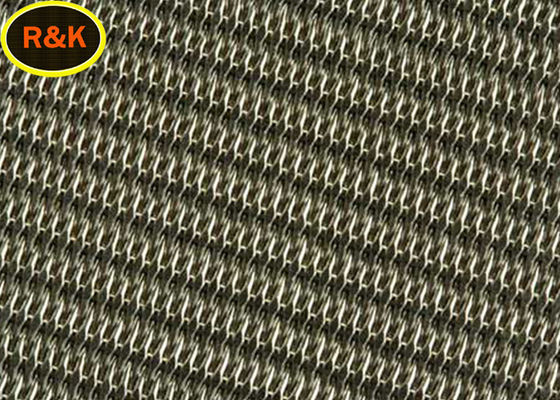

Stainless steel woven wire mesh screen for Plain Dutch and Twill Dutch
Description of stainless steel Dutch woven wire mesh
Dutch steel wire cloth is also called filter cloth or micro cloth.
Wire mesh of Dutch woven filter cloth: low carbon steel wire, brass wire, nickel wire, stainless steel wire, polyester fiber.
Typical weaving patterns: Dutch plain, Dutch twill, Dutch twill.
General use: Filtration and screening in airspace, petroleum and chemicals.
Parameters of stainless steel Dutch mesh
Plain weave Dutch mesh |
||||
Number |
Mesh(warpxweft) |
Wire diameter (warpxweft) |
Aperture (um) |
Weight (kg/m2) |
32# |
8 x 62 |
0.63mm x 0.45mm |
300 |
5.42 |
40# |
10 x 79 |
0.50mm x 0.355mm |
250 |
3.16 |
48# |
12 x 64 |
0.58mm x 0.40mm |
280 |
2.9 |
55# |
14 x 88 |
0.40mm x 0.30mm |
180 |
2.54 |
76# |
19 x 140 |
0.315mm x 0.20mm |
140 |
1.88 |
80# |
20 x 300 |
0.35mm x 0.20mm |
- |
3.6 |
95# |
24 x 110 |
0.355mm x 0.25mm |
120 |
2.45 |
100# |
25 x 140 |
0.28mm x 0.20mm |
100 |
1.95 |
120# |
30 x 150 |
0.25mm x 0.18mm |
80 |
1.68 |
140# |
35 x 175 |
0.224mm x 0.16mm |
71 |
1.52 |
160# |
40 x 200 |
0.20mm x 0.14mm |
60 |
1.40 |
180# |
45 x 250 |
0.16mm x 0.112mm |
56 |
1.09 |
200# |
50 x 250 |
0.14mm x 0.11mm |
53 |
1.04 |
220# |
55.5 x 280 |
0.14mm x 0.10mm |
50 |
0.92 |
240# |
65 x 330 |
0.11mm x 0.08mm |
36 |
0.71 |
280#(1) |
70 x 350 |
0.11mm x 0.08mm |
35 |
0.72 |
280#(2) |
70 x 385 |
0.11mm x 0.07mm |
32 |
0.75 |
300# |
78 x 700 |
0.11mm x 0.08mm |
30 |
1.39 |
315#(1) |
80 x 400 |
0.10mm x 0.065mm |
40 |
0.62 |
315#(2) |
80 x 600 |
0.10mm x 0.06mm |
- |
0.74 |
315#(3) |
80 x 800 |
0.15mm x 0.04mm |
- |
0.77 |
320# |
81 x 780 |
0.10mm x 0.07mm |
30 |
1.22 |
354# |
90 x 550 |
0.12mm x 0.05 |
- |
0.667 |
Width:1m-1.6m |
