Product Details:
Payment & Shipping Terms:
|
Material: | Stainless Steel Woven Mesh | Type: | Weave Wire Mesh |
---|---|---|---|
Hole Shape: | Square Shape | Application: | Screen |
Technique: | Woven | Feature: | Acid Resistant |
Product Name: | Dutch Mesh | ||
High Light: | barbecue wire mesh,decorative metal screen mesh |

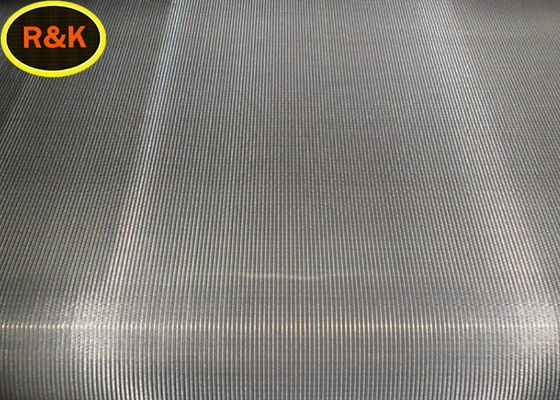

5 micron Dutch weave 200x1400 mesh 316 micron stainless steel wire mesh filter cloth
Description of stainless steel Dutch woven wire mesh
Plain weave woven stainless steel wire mesh features:
"Zero" grid. The line diameter of the warp is larger than the weft.
Each latitude is close to each other.
High precision and flow rate.
It will filter more solid particles than square and rectangular holes.
Feature of the Dutch mesh
• Very thick and stronger
• Fine opening for improved filtration efficiency and quality
• Higher mechanical stability.
• Used as filter cloth
• Precise tolerance
Application of the Dutch mesh
Dutch woven mesh is mainly used for liquid and gas fluids, vacuum and pressure filtration. Ordinary Dutch woven mesh for separating solids and removing liquid filtration, such as cleaning fuel or hydraulic fluids, or for water treatment chemistry, mining
Parameter of Dutch mesh
Plain weave Dutch mesh |
||||
Number |
Mesh(warpxweft) |
Wire diameter (warpxweft) |
Aperture (um) |
Weight (kg/m2) |
32# |
8 x 62 |
0.63mm x 0.45mm |
300 |
5.42 |
40# |
10 x 79 |
0.50mm x 0.355mm |
250 |
3.16 |
48# |
12 x 64 |
0.58mm x 0.40mm |
280 |
2.9 |
55# |
14 x 88 |
0.40mm x 0.30mm |
180 |
2.54 |
76# |
19 x 140 |
0.315mm x 0.20mm |
140 |
1.88 |
80# |
20 x 300 |
0.35mm x 0.20mm |
- |
3.6 |
95# |
24 x 110 |
0.355mm x 0.25mm |
120 |
2.45 |
100# |
25 x 140 |
0.28mm x 0.20mm |
100 |
1.95 |
120# |
30 x 150 |
0.25mm x 0.18mm |
80 |
1.68 |
140# |
35 x 175 |
0.224mm x 0.16mm |
71 |
1.52 |
160# |
40 x 200 |
0.20mm x 0.14mm |
60 |
1.40 |
180# |
45 x 250 |
0.16mm x 0.112mm |
56 |
1.09 |
200# |
50 x 250 |
0.14mm x 0.11mm |
53 |
1.04 |
220# |
55.5 x 280 |
0.14mm x 0.10mm |
50 |
0.92 |
240# |
65 x 330 |
0.11mm x 0.08mm |
36 |
0.71 |
280#(1) |
70 x 350 |
0.11mm x 0.08mm |
35 |
0.72 |
280#(2) |
70 x 385 |
0.11mm x 0.07mm |
32 |
0.75 |
300# |
78 x 700 |
0.11mm x 0.08mm |
30 |
1.39 |
315#(1) |
80 x 400 |
0.10mm x 0.065mm |
40 |
0.62 |
315#(2) |
80 x 600 |
0.10mm x 0.06mm |
- |
0.74 |
315#(3) |
80 x 800 |
0.15mm x 0.04mm |
- |
0.77 |
320# |
81 x 780 |
0.10mm x 0.07mm |
30 |
1.22 |
354# |
90 x 550 |
0.12mm x 0.05 |
- |
0.667 |
Width:1m-1.6m |
