Product Details:
Payment & Shipping Terms:
|
Material: | 316 Stainless Steel Wire | Application: | Filters |
---|---|---|---|
Usage: | Industry | Featurre: | Acid-resisting |
Type: | Weave Wire Mesh | Technique: | Woven |
Product Name: | Crimped Wire Mesh | Color: | Silver |
High Light: | flat wire mesh,construction wire mesh |

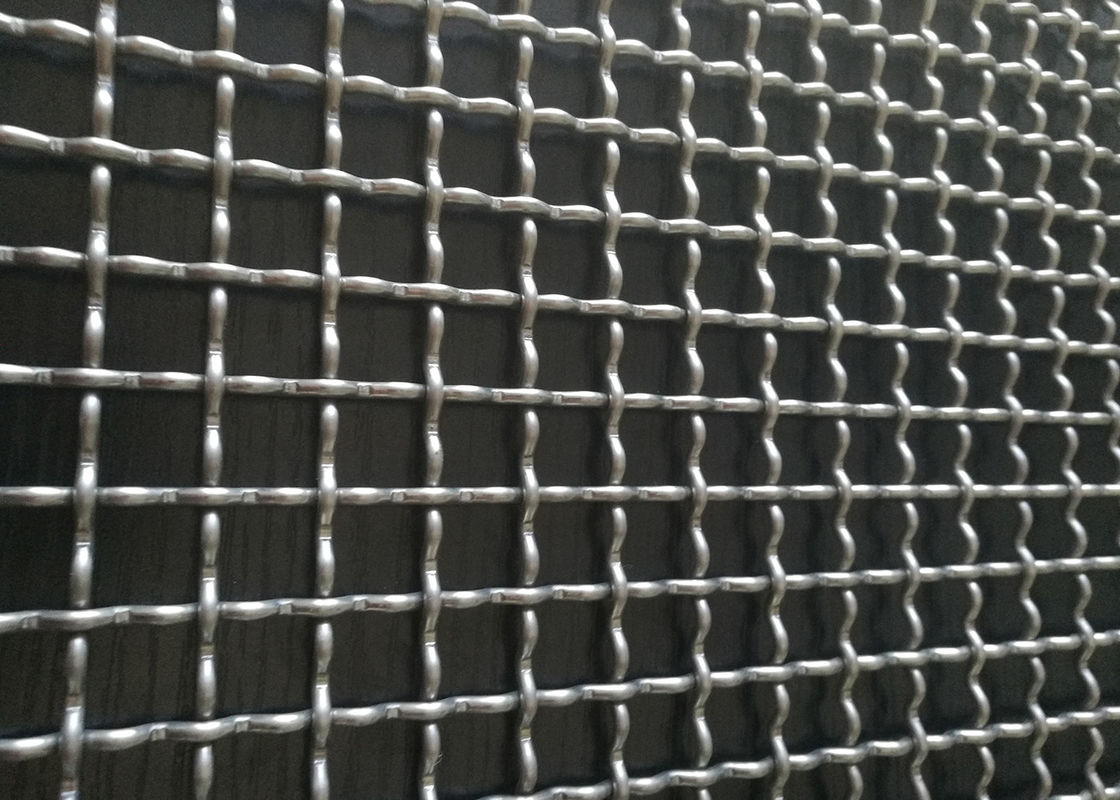

Galvanized Steel Industrial Crimped Wire Mesh Anti Corrosion Sturdy Structure
Description
The crimped wire mesh can also be called iron crimped mesh, stainless steel crimped mesh, and black iron crimped mesh depending on the material.
The crimping mesh is made of a variety of materials, through a crimping machine, a universal wire product with a square or rectangular opening. Crimp mesh materials: iron wire, black wire, stainless steel wire, copper wire and other non-ferrous metals.
Weaving: pre-crimping before weaving. In the two-way separation, the wave is bent, the lock is bent, the flat top is bent, the two-way bending, and the one-way separation is wave bending.
Application
1. Food, mining, chemical, pharmaceutical, petroleum, metallurgy, machinery, protection, construction, handicrafts and other industries.
2. Mines, coal plants, construction, petrochemicals, construction machinery and other places.
Product Specification
Wire Gauge SWG | Wire Dia.(mm) | Mesh | Hole szie(mm) | Weight:kg/m2 |
14 | 2.0 | 21 | 1 | 4.2 |
8 | 4.05 | 18 | 1 | 15 |
25 | 0.50 | 20 | 0.61 | 2.6 |
23 | 0.61 | 18 | 0.8 | 3.4 |
24 | 0.55 | 16 | 0.1 | 2.5 |
24 | 0.55 | 14 | 0.12 | 4 |
22 | 0.71 | 12 | 0.14 | 2.94 |
19 | 1 | 2.3 | 0.18 | 1.45 |
6 | 4.8 | 1.2 | 2 | 20 |
6 | 4.8 | 1 | 2 | 20 |
6 | 4.8 | 0.7 | 3 | 14 |
14 | 2.0 | 5.08 | 0.3 | 12 |
14 | 2.0 | 2.1 | 1 | 2.5 |
14 | 2.0 | 3.6 | 1.5 | 1.9 |
Note: width of 0.5-0.6m available |
