Product Details:
Payment & Shipping Terms:
|
Material: | 316 Stainless Steel Wire | Application: | Filters |
---|---|---|---|
Featurre: | Acid-resisting | Type: | Weave Wire Mesh |
Technique: | Woven | Product Name: | Crimped Wire Mesh |
Color: | Silver | Usage: | Coal Industrial |
High Light: | flat wire mesh,construction wire mesh |
Quarry Screen Crimped Wire Mesh, Different Types of Woven Wire Mesh

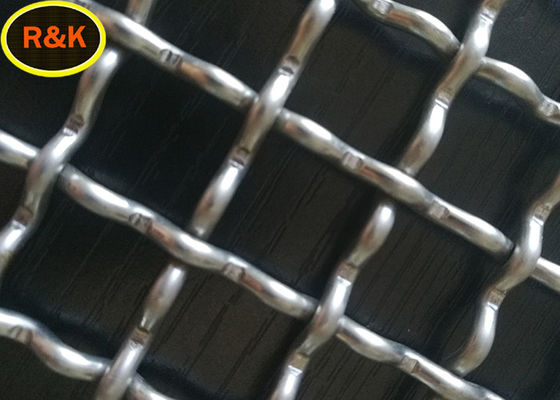

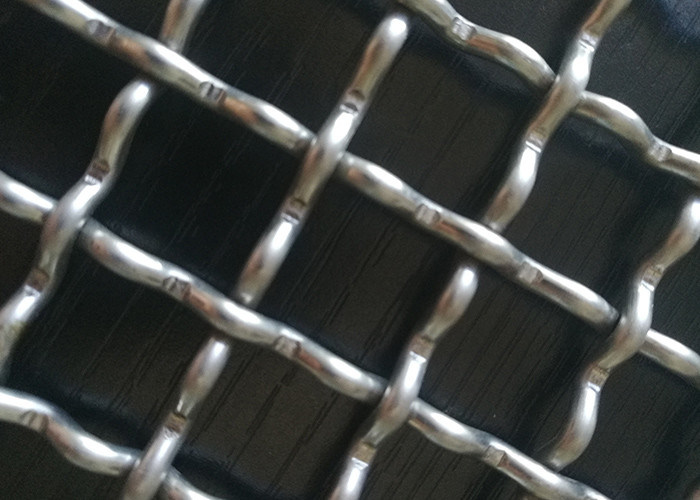

Description of stainless steel crimped wire mesh
Crimp wire mesh made of carbon wire, galvanized wire, stainless steel wire or copper wire. All wires are first crimped through the mold and then woven together. Various materials, wire diameters and weave patterns make this wire mesh product available in many industries.
Material: carbon iron, galvanized steel, stainless steel, copper
Weaving method: double crimping, single intermediate crimping, double intermediate crimping and locking crimping.
Plain Crimp is a simple zigzag crimping method in which the warp and fill lines intersect at each available pocket. For pre-crimped materials, normal crimping is the most common when the mesh to diameter (MD) ratio is 4:1 or less. This unprocessed appearance produces a smooth, subtle pattern.
Specification:
Wire diameter: 0.5mm-8.0mm
Grid: 2-30 grid
Width: standard less than 2000mm
Length: Coil or custom.
Crimp wire mesh has a variety of materials, wire diameter, mesh, weaving method, can be cut into special plates according to application and engineering requirements.
Product parameters
Wire Gauge SWG | Wire Dia.(mm) | Mesh | Hole szie(mm) | Weight:kg/m2 |
14 | 2.0 | 21 | 1 | 4.2 |
8 | 4.05 | 18 | 1 | 15 |
25 | 0.50 | 20 | 0.61 | 2.6 |
23 | 0.61 | 18 | 0.8 | 3.4 |
24 | 0.55 | 16 | 0.1 | 2.5 |
24 | 0.55 | 14 | 0.12 | 4 |
22 | 0.71 | 12 | 0.14 | 2.94 |
19 | 1 | 2.3 | 0.18 | 1.45 |
6 | 4.8 | 1.2 | 2 | 20 |
6 | 4.8 | 1 | 2 | 20 |
6 | 4.8 | 0.7 | 3 | 14 |
14 | 2.0 | 5.08 | 0.3 | 12 |
14 | 2.0 | 2.1 | 1 | 2.5 |
14 | 2.0 | 3.6 | 1.5 | 1.9 |
Note: width of 0.5-0.6m available |
