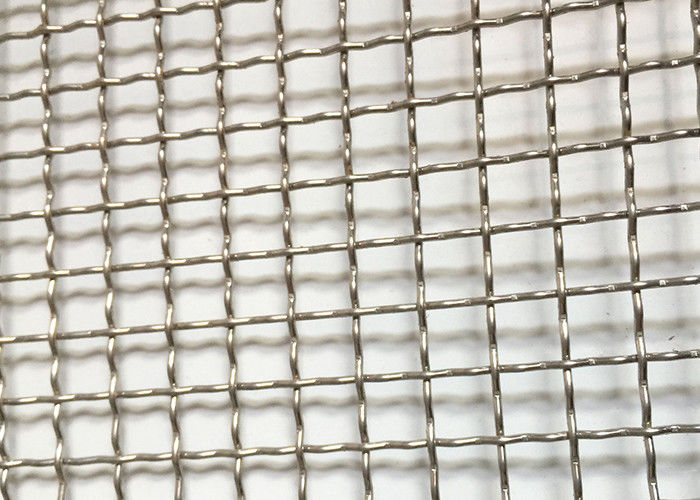

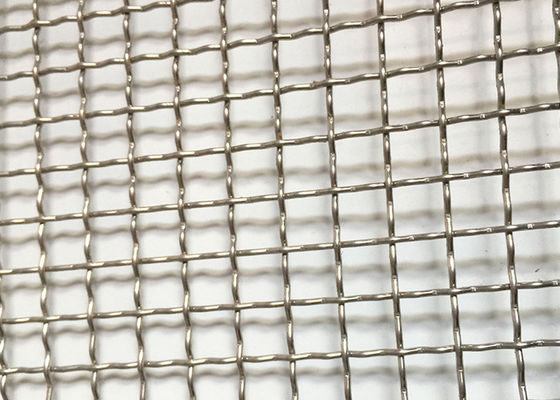

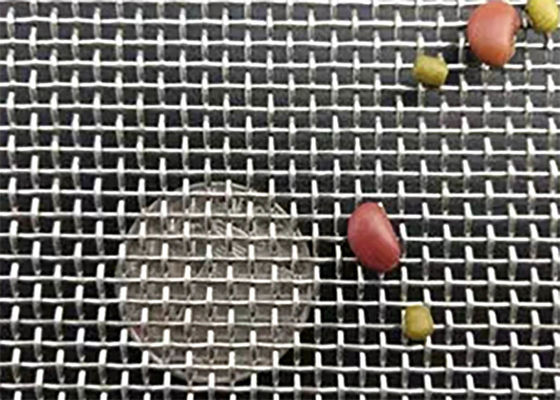

Powerful Curly Custom Weave 304 Stainless Steel Wire Mesh For Mining Screens

Large Image : Powerful Curly Custom Weave 304 Stainless Steel Wire Mesh For Mining Screens

Product Details:

Place of Origin:	Hebei,China
Brand Name:	R&K
Certification:	SGS
Model Number:	CR-18

Payment & Shipping Terms:

Minimum Order Quantity:	1square meter
Price:	Negotiate
Packaging Details:	Kraft Paper or Waterproof Paper
Delivery Time:	5-8 work days
Payment Terms:	Western Union, L/C, T/T，PayPal
Supply Ability:	1000 squaremeter per week

Contact Now

Detailed Product Description

Application:	Filters	Featurre:	Acid-resisting
Technique:	Woven	Product Name:	Crimped Wire Mesh
Color:	Silver	Usage:	Coal Industrial
High Light:	curly 304 stainless steel wire mesh , weave 304 stainless steel wire mesh , powerful curly ss304 wire mesh

Powerful Curly SS304 Weave Wire Mesh Custom Size For Mining Screens

Description

We offer woven mesh screens made from pre-compressed wires for separating liquids and solids from the minerals industry and oil fields.

Depending on the material, most types of crimped screens for export are made of 65 manganese (manganese) steel and stainless steel. The tensile strength of the applied steel wire is usually 1200 MpA. The edge of the screen can be hooked or framed.

Application

1. Mostly used in mines, coal plants, construction, petrochemicals, construction machinery, etc.

2. Food, chemical, pharmaceutical, petroleum, metallurgy, machinery, protection, handicrafts and other industries.

3. Safety protection of river courses, breeding, and residences, etc.

Product parameters

Wire Gauge SWG	Wire Dia.(mm)	Mesh	Hole szie(mm)	Weight:kg/m2
14	2.0	21	1	4.2
8	4.05	18	1	15
25	0.50	20	0.61	2.6
23	0.61	18	0.8	3.4
24	0.55	16	0.1	2.5
24	0.55	14	0.12	4
22	0.71	12	0.14	2.94
19	1	2.3	0.18	1.45
6	4.8	1.2	2	20
6	4.8	1	2	20
6	4.8	0.7	3	14
14	2.0	5.08	0.3	12
14	2.0	2.1	1	2.5
14	2.0	3.6	1.5	1.9
Note: width of 0.5-0.6m available
