Product Details:
Payment & Shipping Terms:
|
Material: | Nylon | Color: | Yellow |
---|---|---|---|
Usage: | Filter Paint | Filter Rating: | 27 % - 80 % Filter Mesh |
Hole Shape: | Square | Type: | Filter Mesh |
High Light: | nylon screen mesh fabric,nylon mesh filter fabric |

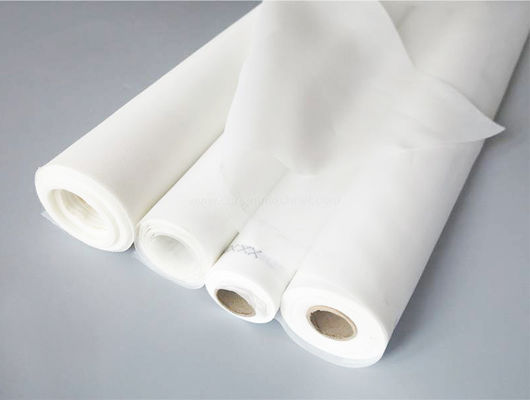

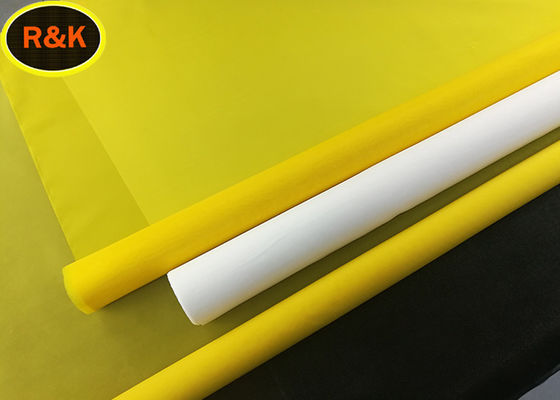

Fine Mesh Screen Roll , Nylon Mesh Filter Easy Clean 40 Micron
Description of nylon mesh
The nylon filter is made of monofilament PA6 or PA66 yarn/wire (1:1 weaving method, plain weave), suitable for filtering, sieving or filtering most liquids, powders or sludge; the term “monofilament” means Each of the wires used in the fabric structure is a single smooth solid thread, rather than many smaller diameter wires that are twisted together in a spun or multifilament material. These monofilament strands are very round in cross section and are extruded into very precise and uniform diameters.
Nylon filter mesh Application
Widely used in screen printing, printing and dyeing, chemical, metallurgy, cement and other industries, and also widely used in chemical filtration
Industry; food processing industry. Medical device industry. Air purification industry.
Construction industry; mining industry, etc.
Product Feature
Nylon mesh has high toughness, high tensile strength, low elongation, good elasticity, corrosion resistance, oil resistance, water resistance, wear resistance, high temperature resistance, weather resistance, etc.; also has good insulation Sex, low lubricity.
Product Parameters
Nylon Filter Mesh | |||||||
Fabric number |
Mest count |
Thread diameter |
Mesh opening |
Open surface |
Fabric thickness |
Weight | |
NO. | cm mesh/inch | micron | micron | % | micron | g/m2 | |
JPP5 | 5 | 12 | 500 | 1500 | 56 | 850 | 271 |
JPP6 | 6 | 16 | 400 | 1267 | 58 | 780 | 208 |
JMG7 | 7 | 18 | 350 | 1079 | 57 | 675 | 186 |
JPP8 | 8 | 20 | 350 | 900 | 52 | 685 | 212 |
JPP9 | 9 | 24 | 250 | 860 | 60 | 455 | 145 |
JPP10 | 10 | 25 | 300 | 700 | 49 | 576 | 195 |
JPP12 | 12 | 30 | 250 | 583 | 49 | 470 | 162 |
JPP12 | 12 | 35 | 300 | 533 | 41 | 585 | 234 |
JPP14 | 14 | 40 | 300 | 414 | 34 | 595 | 273 |
JPP16 | 16 | 40 | 200 | 425 | 46 | 370 | 139 |
JPP16 | 16 | 50 | 250 | 375 | 36 | 485 | 217 |
JPP20 | 20 | 50 | 150 | 350 | 49 | 375 | 98 |
JPP20 | 20 | 50 | 200 | 300 | 36 | 385 | 173 |
JPP24 | 24 | 60 | 150 | 267 | 41 | 285 | 117 |
JPP28 | 28 | 70 | 120 | 237 | 44 | 215 | 87 |
JPP30 | 30 | 76 | 120 | 213 | 41 | 225 | 94 |
JPP32 | 32 | 80 | 100 | 213 | 46 | 165 | 69 |
JPP36 | 36 | 90 | 100 | 178 | 41 | 178 | 78 |
JPP40 | 40 | 100 | 100 | 150 | 36 | 190 | 87 |
JPP43 | 43 | 110 | 80 | 152 | 43 | 135 | 60 |
JPP48 | 48 | 120 | 80 | 130 | 38 | 145 | 62 |
JPP56 | 56 | 140 | 60 | 120 | 44 | 85 | 44 |
JPP59 | 59 | 150 | 60 | 110 | 42 | 98 | 46 |
JPP64 | 64 | 160 | 60 | 100 | 37 | 105 | 50 |
JPP72 | 72 | 180 | 50 | 90 | 41 | 82 | 39 |
JPP80 | 80 | 200 | 50 | 75 | 36 | 90 | 43 |
JPP100 | 100 | 250 | 40 | 60 | 36 | 65 | 35 |
JPP120 | 120 | 305 | 40 | 43 | 25 | 70 | 42 |
JPP130 | 130 | 330 | 40 | 37 | 23 | 75 | 45 |
