Product Details:
Payment & Shipping Terms:
|
Material: | Nylon | Color: | Yellow |
---|---|---|---|
Usage: | Filter Paint | Filter Rating: | 27 % - 80 % Filter Mesh |
Hole Shape: | Square | Type: | Filter Mesh |
Product Name: | Nylon Mesh Screen | ||
High Light: | nylon mesh filter fabric,fine nylon mesh |

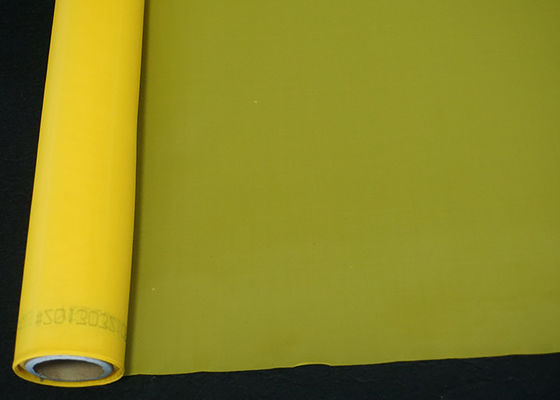

Food Grade 90 Micron Nylon Mesh Screen Wear Resistant For Filter
Description of nylon mesh
The nylon filter is made of monofilament PA6 or PA66 yarn/wire (1:1 weaving method, plain weave), suitable for filtering, sieving or filtering most liquids, powders or sludge; the term “monofilament” means Each of the wires used in the fabric structure is a single smooth solid thread, rather than many smaller diameter wires that are twisted together in a spun or multifilament material. These monofilament strands are very round in cross section and are extruded into very precise and uniform diameters.
Features:
nylon mesh has high toughness, high tensile strength, low elongation, good elasticity, corrosion resistance, oil resistance, water resistance, wear resistance, high temperature resistance, weather resistance, etc.; also has good insulation Sex, low lubricity.
Uses:
It is widely used in industrial filtration, petroleum, chemical, printing and other products with complete specifications and excellent quality. Special specifications can be customized. And screen printing, paint filtration, fishery and other industries. Nylon mesh has the effect of high temperature resistance and alkali resistance, and the polyethylene mesh has the effect of acid resistance, and each has its own advantages
Specifications:
Nylon mesh can be supplied in a variety of sizes depending on the application. Typically, nylon mesh for filtration and screening applications has fine pores and fine wire diameters, while nylon mesh for fishing and agricultural applications has larger mesh spacing and roving.
Product Parameters
Nylon Filter Mesh | |||||||
Fabric number |
Mest count |
Thread diameter |
Mesh opening |
Open surface |
Fabric thickness |
Weight | |
NO. | cm mesh/inch | micron | micron | % | micron | g/m2 | |
JPP5 | 5 | 12 | 500 | 1500 | 56 | 850 | 271 |
JPP6 | 6 | 16 | 400 | 1267 | 58 | 780 | 208 |
JMG7 | 7 | 18 | 350 | 1079 | 57 | 675 | 186 |
JPP8 | 8 | 20 | 350 | 900 | 52 | 685 | 212 |
JPP9 | 9 | 24 | 250 | 860 | 60 | 455 | 145 |
JPP10 | 10 | 25 | 300 | 700 | 49 | 576 | 195 |
JPP12 | 12 | 30 | 250 | 583 | 49 | 470 | 162 |
JPP12 | 12 | 35 | 300 | 533 | 41 | 585 | 234 |
JPP14 | 14 | 40 | 300 | 414 | 34 | 595 | 273 |
JPP16 | 16 | 40 | 200 | 425 | 46 | 370 | 139 |
JPP16 | 16 | 50 | 250 | 375 | 36 | 485 | 217 |
JPP20 | 20 | 50 | 150 | 350 | 49 | 375 | 98 |
JPP20 | 20 | 50 | 200 | 300 | 36 | 385 | 173 |
JPP24 | 24 | 60 | 150 | 267 | 41 | 285 | 117 |
JPP28 | 28 | 70 | 120 | 237 | 44 | 215 | 87 |
JPP30 | 30 | 76 | 120 | 213 | 41 | 225 | 94 |
JPP32 | 32 | 80 | 100 | 213 | 46 | 165 | 69 |
JPP36 | 36 | 90 | 100 | 178 | 41 | 178 | 78 |
JPP40 | 40 | 100 | 100 | 150 | 36 | 190 | 87 |
JPP43 | 43 | 110 | 80 | 152 | 43 | 135 | 60 |
JPP48 | 48 | 120 | 80 | 130 | 38 | 145 | 62 |
JPP56 | 56 | 140 | 60 | 120 | 44 | 85 | 44 |
JPP59 | 59 | 150 | 60 | 110 | 42 | 98 | 46 |
JPP64 | 64 | 160 | 60 | 100 | 37 | 105 | 50 |
JPP72 | 72 | 180 | 50 | 90 | 41 | 82 | 39 |
JPP80 | 80 | 200 | 50 | 75 | 36 | 90 | 43 |
JPP100 | 100 | 250 | 40 | 60 | 36 | 65 | 35 |
JPP120 | 120 | 305 | 40 | 43 | 25 | 70 | 42 |
JPP130 | 130 | 330 | 40 | 37 | 23 | 75 | 45 |
Package
