Product Details:
Payment & Shipping Terms:
|
Product Name: | Fine 25 35 50 100 150 200 400 Micron Nylon Filter Mesh Roll Cloth | Color: | White Color |
---|---|---|---|
Mesh Count: | 20-500 Mesh | Thread Diameter: | 40 Um |
Mesh Opening: | 43 Um | Thickness: | 65 Um |
Hole Size: | 25 35 50 100 150 200 400 Micron | Roll: | Yes |
Type: | Plain Weave | Fine: | Yes |
High Light: | nylon screen mesh fabric,fine nylon mesh |

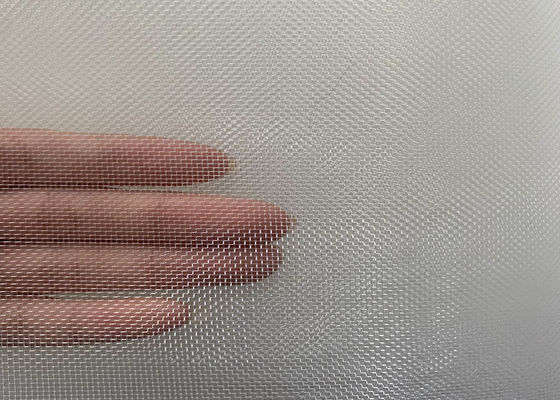

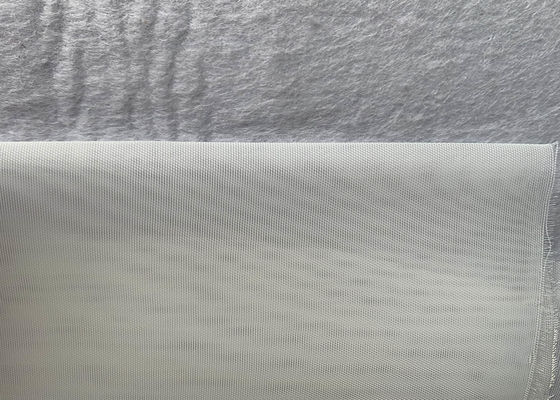

Fine 25 35 50 100 150 200 400 Micron Nylon Filter Mesh Roll Cloth
The pore size of the nylon filter ranges from 10 microns to 1500 microns, which is very hydrophilic and compatible with a variety of solvents. Therefore, the nylon filter is compatible with a variety of solvents. Our roll net is from 1.0m to 2.2m, and the net number is from 12 mesh to 600 mesh. Nylon screens are better than polyester screens in life.
Product name | Fine 25 35 50 100 150 200 400 Micron Nylon Filter Mesh Roll Cloth |
Availability | Yes |
Material | 100% nylon |
Purpose | Dustproof, dust removal |
Weaving method | Plain weave |
Width | 1m |
Performance | Acid resistance, alkali resistance, high temperature resistance, low temperature resistance, fire resistance, waterproof, anti-static |
Scope of application | air conditioners, range hoods, washing machines, automobile starting systems, fuel tanks, filter pots, fans, sinks |
Model | JPP 80 |
Band | R&K |
Below is the details about the 305 mesh nylon filter mesh:
Material:100% nylon
Color:White
Hole NO per inch: 305 mesh per inch
Thread diameter:40 micron
Mesh opening:43 micron
Thickness:70 um
Standard roll width : 110cm,115cm,120cm,145cm,165cm,180cm,220cm.
Appication of the Jpp 100T nylon filter mesh :
1-- Filter alage and cells in ponds.
2-- Particle analysis.
3-- Large particulate filteration.
4-- Background filter for automzted particle imaging system.
5-- Pre-filteration of solvents.
6-- Paint-monitoring.
7-- Medical filteration(Blood filteration).
Features of the 305 mesh nylon filter mesh :
Easy clean,
Easy squeezing,
Clean and never discolored,
Good heat permeability,
Heat resistant from 170-230 degree centigrade,
High air permeability,
Acid and alkali resistance,
Wear resistant,long service life.
Specification of the 305 mesh nylon filter mesh:
Nylon Filter Mesh(Nylon filter cloth/Nylon woven mesh) | |||||||
Fabric number |
Mest count |
Thread diameter |
Mesh opening |
Open surface |
Fabric thickness |
Weight | |
NO. | cm mesh/inch | micron | micron | % | micron | g/m2 | |
JPP5 | 5 | 12 | 500 | 1500 | 56 | 850 | 271 |
JPP6 | 6 | 16 | 400 | 1267 | 58 | 780 | 208 |
JMG7 | 7 | 18 | 350 | 1079 | 57 | 675 | 186 |
JPP8 | 8 | 20 | 350 | 900 | 52 | 685 | 212 |
JPP9 | 9 | 24 | 250 | 860 | 60 | 455 | 145 |
JPP10 | 10 | 25 | 300 | 700 | 49 | 576 | 195 |
JPP12 | 12 | 30 | 250 | 583 | 49 | 470 | 162 |
JPP12 | 12 | 35 | 300 | 533 | 41 | 585 | 234 |
JPP14 | 14 | 40 | 300 | 414 | 34 | 595 | 273 |
JPP16 | 16 | 40 | 200 | 425 | 46 | 370 | 139 |
JPP16 | 16 | 50 | 250 | 375 | 36 | 485 | 217 |
JPP20 | 20 | 50 | 150 | 350 | 49 | 375 | 98 |
JPP20 | 20 | 50 | 200 | 300 | 36 | 385 | 173 |
JPP24 | 24 | 60 | 150 | 267 | 41 | 285 | 117 |
JPP28 | 28 | 70 | 120 | 237 | 44 | 215 | 87 |
JPP30 | 30 | 76 | 120 | 213 | 41 | 225 | 94 |
JPP32 | 32 | 80 | 100 | 213 | 46 | 165 | 69 |
JPP36 | 36 | 90 | 100 | 178 | 41 | 178 | 78 |
JPP40 | 40 | 100 | 100 | 150 | 36 | 190 | 87 |
JPP43 | 43 | 110 | 80 | 152 | 43 | 135 | 60 |
JPP48 | 48 | 120 | 80 | 130 | 38 | 145 | 62 |
JPP56 | 56 | 140 | 60 | 120 | 44 | 85 | 44 |
JPP59 | 59 | 150 | 60 | 110 | 42 | 98 | 46 |
JPP64 | 64 | 160 | 60 | 100 | 37 | 105 | 50 |
JPP72 | 72 | 180 | 50 | 90 | 41 | 82 | 39 |
JPP80 | 80 | 200 | 50 | 75 | 36 | 90 | 43 |
JPP100 | 100 | 250 | 40 | 60 | 36 | 65 | 35 |
JPP120 | 120 | 305 | 40 | 43 | 25 | 70 | 42 |
JPP130 | 130 | 330 | 40 | 37 | 23 | 75 | 45 |
