Product Details:
Payment & Shipping Terms:
|
Material: | 304 Stainless Steel | Filter Rating: | 99% |
---|---|---|---|
Weave Type: | Twill Wave | Color: | Silver / Black |
Type: | Filter Element | Product Name: | Sintered Mesh |
High Light: | sintered stainless steel sheet,sintered metal disc |

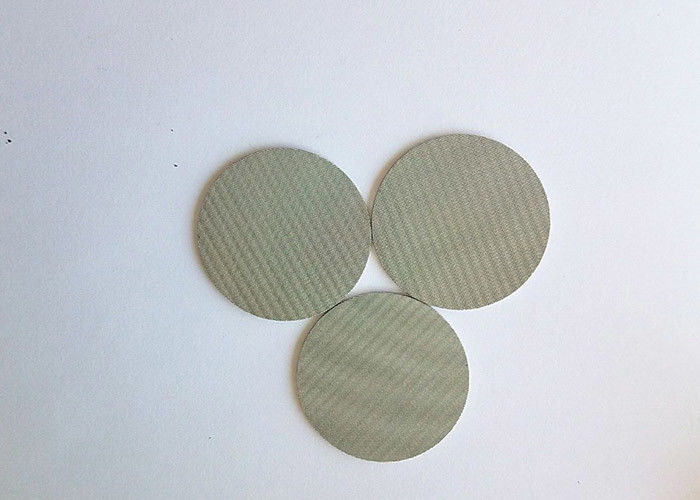

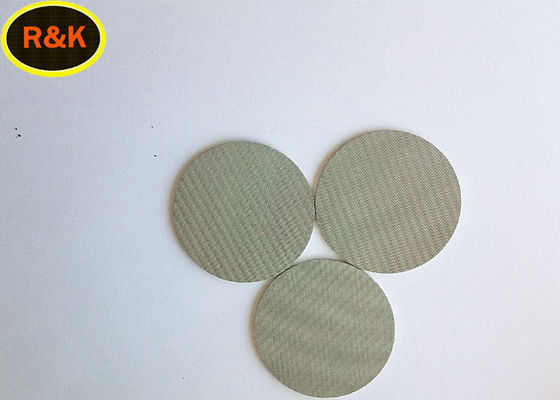

High temperature 20 Um 304 stainless steel medicine sintered filter mesh
Product Description
Sintering is the process of improving the properties of a woven wire mesh by bonding the contact points of all the wires together to form a mesh that is firmly fused in place. This is achieved by a combination of heat and pressure, resulting in a single layer sintered wire mesh.
Our 5-layer laminates are standard and widely used sintered wire mesh. A single layer of fine wire mesh was placed between two thicker square woven meshes, which were then added to two layers of strong Dutch woven wire mesh and sintered together to form a sturdy board. A single layer of finely woven wire mesh is used as a filter layer that can be customized to meet specific filtration grades ranging from 1 micron to 200 microns.
Our main products include
Five-layer sintered mesh
Sintered mesh laminate
Sintered mesh with perforated metal
Sintered metal filter
Sintered metal filter disk
Folded sintered mesh filter
Sintered cone filter
Sintered metal fiber felt.
Product Feature
1.Surface filtration
2. Corrosion resistance
3. High temperature resistance
4. Filtering accuracy is stable
5. High strength and rigidity
6. The mesh is smooth
7. Easy to clean and can be used repeatedly.
8. Easy to shape, process and weld
Product usage
Stainless steel sintered mesh laminates are available in a wide range of filtration grades for water treatment, liquid and gas filtration, beverages, medical, chemical processing, food and beverage, pharmaceutical and transportation industries.
Sintered mesh can be used for filtration of polymers, chemicals, foods, hydraulic oils and fuels, pharmaceuticals and cosmetics, water and emissions. It is also used for the fluidization of bulk materials in gravity conveyors, trucks, conveyors, storage silos, dryers, bulk materials and coolers.
Product Parameters
Note: This list for a reference, not for the complete list.
Nomin |
structure prodextive layer+control layer |
Thickness (mm) | air perm eabilit | Bubble pressure (mm) | weight (kg/m2) |
porosity |
1 | 100+400*2800+100+12*64+64 | 1.7 | 1.81 | 360-600 | 5 layer 8.4 | 40% |
5 | 100+200*1400+100+12*64+64 | 1.7 | 2.42 | 260-550 | 6 layer 14.4 | 40% |
20 | 100+165*800+100+12*64+64* | 1.7 | 4.5 | 170-450 | 40% | |
200 | 40+80+40+20+40+80+40 | 2 | 26 | 50-150 | 40% |
