Product Details:
Payment & Shipping Terms:
|
Material: | 316 Stainless Steel | Width: | As Requirement |
---|---|---|---|
Length: | As Requirement | Color: | Silver / Black |
Appication: | Filter | Weave Style: | Plain Weave |
Shape: | Round, Square, Or As Require | Product Name: | Sintered Mesh |
High Light: | round wire mesh screen,sintered metal disc |
Professional factory supply 100 microns sintered wire mesh stainless steel wire mesh

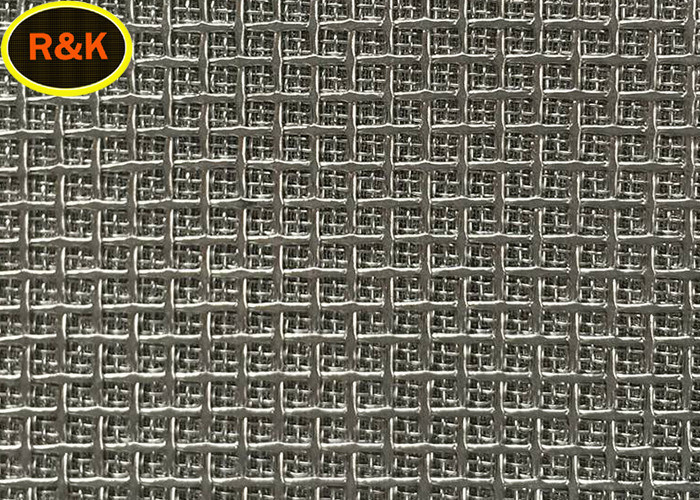

Description of stainless steel sintered mesh round for filter plate
Sintering is the process of improving the properties of a woven wire mesh by bonding the contact points of all the wires together to form a mesh that is firmly fused in place. This is achieved by a combination of heat and pressure, resulting in a single layer sintered wire mesh.
Our 5-layer laminates are standard and widely used sintered wire mesh. A single layer of fine wire mesh was placed between two thicker square woven meshes, which were then added to two layers of strong Dutch woven wire mesh and sintered together to form a sturdy board. A single layer of finely woven wire mesh is used as a filter layer that can be customized to meet specific filtration grades ranging from 1 micron to 200 microns.
These layers are usually constructed of 316L stainless steel mesh, but special alloys such as Hastelloy®, Monel®, Inconel®, Alloy20, etc., can also be added.
Our standard sizes are 2'x4' or 4'x4' plates, but can be used to make plates, tubes, larger plates and cones of different sizes.
This type of sintered wire mesh laminate has applications in many industries including pharmaceuticals, chemical processing, food and beverage, and transportation. Applications include fluidized bed, liquid and gas filtration, pharmaceutical powder processing, and others, including some that have not yet been developed and put into service.
Note: This list for a reference, not for the complete list.
Nomin al filter rating |
structure prodextive layer+control layer +dispersion layer+ reinforce layer+ reinforce layer |
Thickness(mm) | air perm eabilit | Bubble pressure(mm) | weight (kg/m2) |
porosity (%) |
1 | 100+400*2800+100+12*64+64 | 1.7 | 1.81 | 360-600 | 5 layer 8.4 | 40% |
5 | 100+200*1400+100+12*64+64 | 1.7 | 2.42 | 260-550 | 6 layer 14.4 | 40% |
20 | 100+165*800+100+12*64+64* | 1.7 | 4.5 | 170-450 | 40% | |
200 | 40+80+40+20+40+80+40 | 2 | 26 | 50-150 | 40% |
