Product Details:
Payment & Shipping Terms:
|
Product Name: | Polyester Filter Mesh Piece | Material: | 100% Polyester |
---|---|---|---|
Piece Size: | 15*15cm,10*10cm,5*5cm | Shape: | Round ,Square ,Annular Shape |
MOQ: | 5000pcs | Micron: | 30-1500 Micron |
High Light: | beer brewing filter,food grade mesh bags |

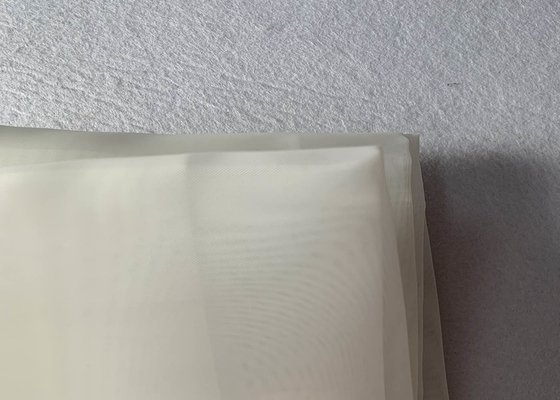

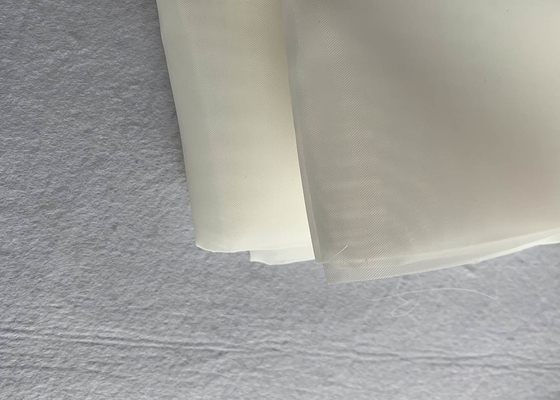

Juice Polyester Nylon Mesh Filter Round Piece Filter Screen Mesh 30-1500 Micron
HEBEI REKING WIRE MESH CO.,LTD is founded from 1997,we have produce this product for more than 25 years.We can make the wire mesh pieces,wire mesh tube,wire mesh ultrasonic welding bags and nut milk bags. any product of the polyester mesh process,we can customized for you.
Raw material of the polyester mesh screen:
Material:100% polyester yarn
Mesh opening:30-700 micron
Thread diameter:27-300 micron
Mesh roll size:1m wide to 3.65 m wide, length:30-2000meter per roll.
Color:white is very popular, yellow is sepcial for polyester pieces,according with your iiusage.
Certificate:FDA,SGS,ISO,ROHS,MSDS (Due to our mesh can meet this certification requirement,so the
polyester mesh piece also can meet them, just make a deep processing.)
Polyester specification for reference:
Mesh Count Diameter (Mesh/cm um) | Mesh Count (Mesh/inch) | Weave | Aperture (um) | Thread Diameter (um) | Opening (%) | Thickness (um) | Thickness Tollerance (+/- um) |
Theoretical Ink (cm3/m2) |
165-31PW(S) | 420 | 1:1 | 23 | 31 | 15 | 48 | 2 | 7 |
150-34PW(T) | 380 | 1:1 | 23 | 34 | 13 | 55 | 3 | 6.5 |
150-31PW(S) | 380 | 1:1 | 32 | 31 | 23 | 49 | 3 | 11 |
140-34TW(T) | 355 | 2:1 | 33 | 34 | 21 | 56 | 3 | 12 |
140-34PW(T) | 355 | 1:1 | 31 | 34 | 20 | 53 | 3 | 10 |
140-31PW(S) | 355 | 1:1 | 36 | 31 | 26 | 48 | 2 | 12 |
130-34PW(T) | 330 | 1:1 | 40 | 34 | 27 | 55 | 3 | 15 |
120-40PW(HD) | 305 | 1:1 | 37 | 40 | 20 | 63 | 3 | 13 |
120-34PW(T) | 305 | 1:1 | 45 | 34 | 30 | 55 | 3 | 16 |
120-31PW(S) | 305 | 1:1 | 49 | 31 | 35 | 49 | 3 | 17 |
110-40PW(HD) | 280 | 1:1 | 48 | 40 | 27 | 64 | 3 | 17 |
100-40PW(T) | 255 | 1:1 | 58 | 40 | 33 | 63 | 3 | 21 |
90-48PW(T) | 230 | 1:1 | 56 | 48 | 25 | 78 | 4 | 19 |
80-48PW(T) | 200 | 1:1 | 72 | 48 | 33 | 74 | 4 | 25 |
77-55PW(T) | 195 | 1:1 | 67 | 55 | 27 | 88 | 4 | 24 |
77-48PW(S) | 195 | 1:1 | 77 | 48 | 35 | 80 | 4 | 28 |
72-55PW(T) | 182 | 1:1 | 85 | 55 | 30 | 90 | 5 | 27 |
72-48PW(S) | 182 | 1:1 | 90 | 48 | 36 | 78 | 5 | 33 |
68-64PW(T) | 175 | 1:1 | 78 | 64 | 28 | 105 | 5 | 30 |
68-55PW(S) | 175 | 1:1 | 85 | 55 | 34 | 85 | 4 | 28 |
64-64PW(T) | 160 | 1:1 | 85 | 64 | 30 | 115 | 6 | 34 |
64-55PW(S) | 160 | 1:1 | 98 | 55 | 38 | 98 | 5 | 36 |
61-64PW(T) | 155 | 1:1 | 90 | 64 | 31 | 101 | 5 | 30 |
54-70PW(HD) | 137 | 1:1 | 109 | 70 | 35 | 116 | 6 | 40 |
54-64PW(T) | 137 | 1:1 | 115 | 64 | 39 | 100 | 5 | 39 |
53-55PW(S) | 135 | 1:1 | 133 | 55 | 50 | 86 | 6 | 42 |
53-45PW(S) | 135 | 2:2 | 143 | 45*2 | 57 | 79 | 7 | 41 |
48-70PW(T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 |
47-55PW(S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 |
43-80PW(T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 |
40-80PW(T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 |
39-55PW(S) | 100 | 1:1 | 177 | 55 | 56 | 88 | 6 | 55 |
36-90PW(T) | 92 | 1:1 | 183 | 90 | 44 | 150 | 8 | 65 |
Below is the polyester filter piece information:
Product name | Polyester Filter Mesh Piece |
Material | 100% polyester mesh |
Piece shape | Square,round,triangle,annular and so on.any shape you want,we can make it for you. |
MOQ | small size,MOQ 10K, More than 10*10cm,MOQ 5000 pcs |
Certification | SGS,ISO,FDA,ROHS |
Tel: +8613333014783
