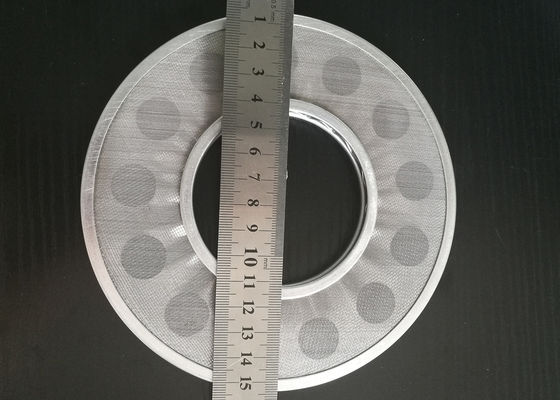

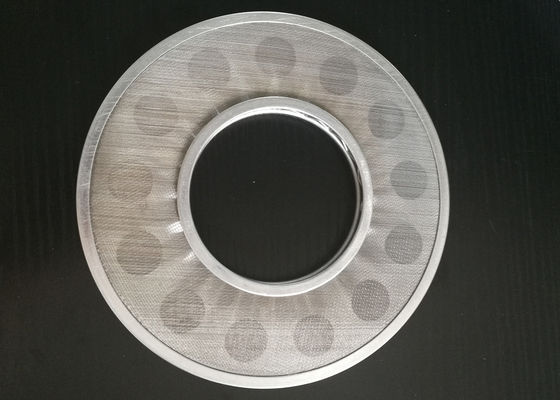

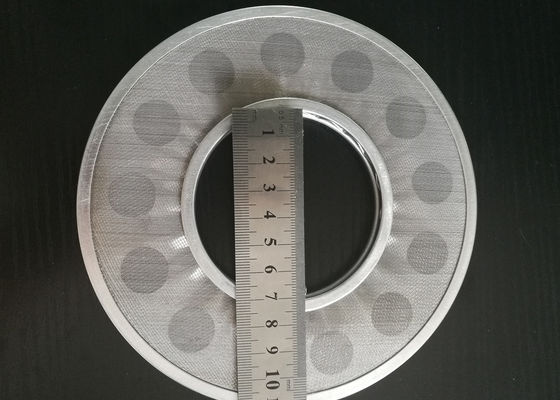

316L 5 micron stainless steel filter sieve wire mesh fliter disc
Description of stainless steel filter disc
Stainless steel filter disc, also called stainless steel wire mesh filter disc, is a type of metal filter disc. We divide the manufacturing process into three steps. First, we choose high-quality stainless steel wire. Second, the stainless steel wire will be woven or perforated. Then, according to the special requirements of customers, we will choose different materials for hemming. In addition, during the manufacturing process, we can provide stainless steel filter discs of different sizes, different shapes and different weaving methods. All products can be produced according to your specific requirements. Stainless steel filter discs have excellent acid and alkali resistance, and can be used under very harsh conditions, especially suitable for acid gas filtration.
Stainless steel filter disc Application
stainless steel screen filter discs are mainly used in the distillation, absorption, evaporation and filtration processes of rubber, plastics industry, grain and oil screening, petroleum, chemical, light industry, pharmaceutical, metallurgy, machinery, shipbuilding and other industries. The screen filter disc can also be used as an air filter for automobiles.
Shape : we can make round / square / circular or as customer's require.
Structure: single layer, double layer and multi-layers
Material : stainless steel / metal / copper wire mesh / black wire mesh / dutch wire mesh etc.
Technical index
Wire: SUS302, SUS304, SUS304L, SUS310S, SUS316, SUS316L, SUS321, etc.
Wire diameter: 0.01 mm-5 mm.
Disk diameter: 5 mm-600 mm (custom size: 8 mm-3800 mm).
Weaving method: plain weave, twill weave, Dutch weave, etc.
Layer: single or multiple layers.
Filter disc shape: round, rectangular, square, crescent and semicircular, etc.
Edge material: copper, aluminum, stainless steel, rubber, etc.
Filtration accuracy: 0.2 µm-100 µm.
Stainless steel fiter disc Parameter
| Filter accuracy |
5-80 micron |
| Size |
6mm-650mm |
| Production process |
plain weave ,twill weave,mat type |
