Product Details:
Payment & Shipping Terms:
|
Product Name: | Stainless Steel Filter Cartridge | Technique: | Woven,Welded Mesh |
---|---|---|---|
Material: | 304,316 | Wire Diameter: | Requirement |
Usage: | Filter,chmical Industry | Mesh Count: | 1-400mesh |
High Light: | 304 stainless steel mesh filter cartridge,200micron stainless steel mesh filter cartridge,300 micron stainless steel filter cartridge |

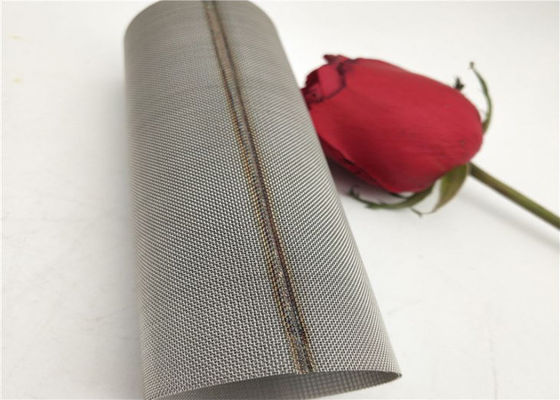

Custom Size 304 316 Welded 200 300 Micron Stainless Steel Filter Cartridge
Description

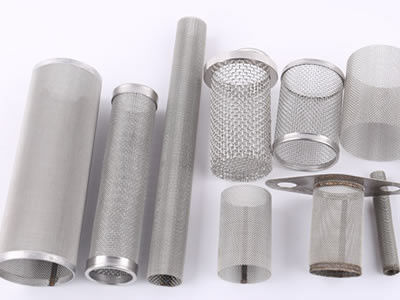

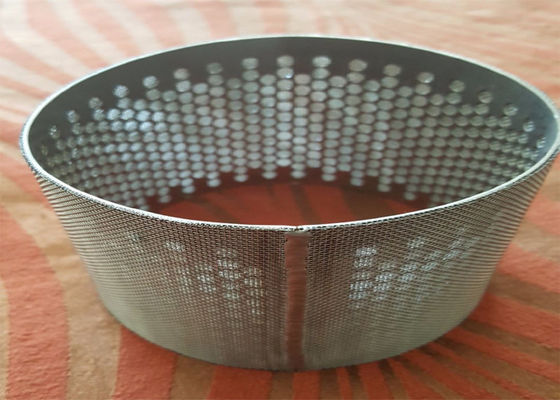

Processing custom stainless steel filter cylinder, oil-water separation sewage dust particle filter cylinder.
It is made of single-layer or multi-layer metal mesh. The number of layers and the number of meshes of the wire mesh are determined according to different use conditions and purposes.
The filtering accuracy is high concentricity, high pressure, and good straightness. Stainless steel material. With any burrs, to ensure a long service life.
Application
1. Catalyst filtration and separation;
2. Purification of high temperature flue gas in metallurgical industry;
3. Filtration of various high temperature, corrosive liquids and catalysts in the petrochemical industry;
4. Filtration and purification of various polymer melts in the chemical fiber film industry;
5. Filtration and separation of various catalysts in the pharmaceutical industry;
6. Used for gas distribution, liquidized bed orifice material;
7. Used for high-pressure backwash oil filters, etc.;
8. Used to filter edible oil, beverages and various edible slurries;
9. Used to purify and filter production sewage.
Specification
Number |
Mesh (warp*weft) |
Wire diameter (warp*weft) |
Aperture (um) |
Weight (kg/m2) |
32# | 8 x 62 | 0.63mm x 0.45mm | 300 | 5.42 |
40# | 10 x 79 | 0.50mmx0.355mm | 250 | 3.16 |
48# | 12 x 64 | 0.58mm x 0.40mm | 280 | 2.9 |
55# | 14 x 88 | 0.40mm x 0.30mm | 180 | 2.54 |
76# | 19 x 140 | 0.315mm x 0.20mm | 140 | 1.88 |
80# | 20 x 300 | 0.35mm x 0.20mm | - | 3.6 |
95# | 24 x 110 | 0.355mm x 0.25mm | 120 | 2.45 |
100# | 25 x 140 | 0.28mm x 0.20mm | 100 | 1.95 |
120# | 30 x 150 | 0.25mm x 0.18mm | 80 | 1.68 |
140# | 35 x 175 | 0.224mm x 0.16mm | 71 | 1.52 |
160# | 40 x 200 | 0.20mm x 0.14mm | 60 | 1.40 |
180# | 45 x 250 | 0.16mm x 0.112mm | 56 | 1.09 |
200# | 50 x 250 | 0.14mm x 0.11mm | 53 | 1.04 |
220# | 55.5 x 280 | 0.14mm x 0.10mm | 50 | 0.92 |
240# | 65 x 330 | 0.11mm x 0.08mm | 36 | 0.71 |
280#(1) | 70 x 350 | 0.11mm x 0.08mm | 35 | 0.72 |
280#(2) | 70 x 385 | 0.11mm x 0.07mm | 32 | 0.75 |
300# | 78 x 700 | 0.11mm x 0.08mm | 30 | 1.39 |
315#(1) | 80 x 400 | 0.10mm x 0.065mm | 40 | 0.62 |
315#(2) | 80 x 600 | 0.10mm x 0.06mm | - | 0.74 |
315#(3) | 80 x 800 | 0.15mm x 0.04mm | - | 0.77 |
320# | 81 x 780 | 0.10mm x 0.07mm | 30 | 1.22 |
354# | 90 x 550 | 0.12mm x 0.05 | - | 0.667 |
