Product Details:
Payment & Shipping Terms:
|
Product Name: | Round 304 Five-Layer Stainless Steel Sintered Mesh Solid-Liquid Separation Wire Mesh Disc | Width: | As Requirement |
---|---|---|---|
Length: | As Requirement | Color: | Silver / Black |
Appication: | Filter | Weave Style: | Plain Weave |
Application: | Filter Mesh | Weave Style: | Dutch/Plain/Twill Weave |
High Light: | 304 sintered wire mesh,five layer sintered wire mesh,solid liquid separation sintered wire mesh |

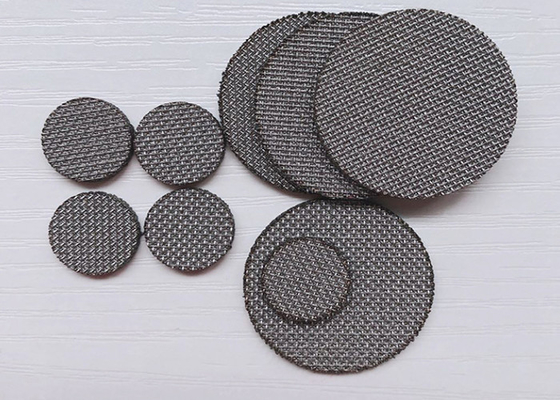

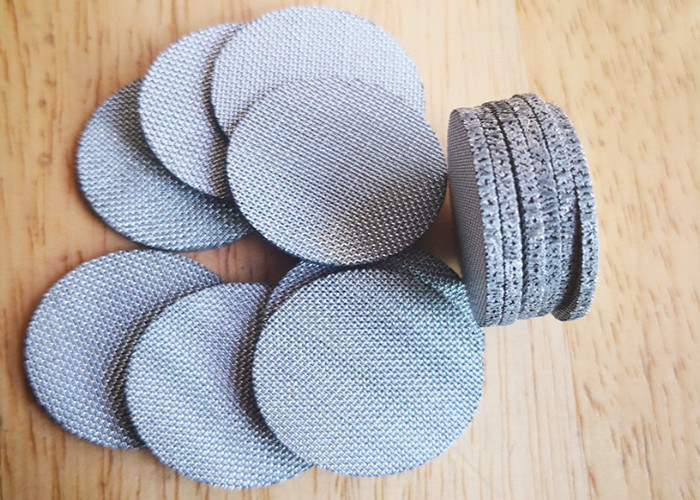

Round 304 Five-Layer Stainless Steel Sintered Mesh Solid-Liquid Separation Wire Mesh Disc
Product Description
The mechanism of the stainless steel sintered filter screen is surface filtration, and the mesh channels are smooth, so it has excellent backwashing regeneration performance and can be used repeatedly for a long time. It is especially suitable for continuous and automated operation processes. It is impossible for any kind of filter material. Compared to. The sintered mesh material is easy to be formed, processed and welded, and can be processed into various forms of filter elements such as round, cylindrical, cone, and corrugated shapes.
Product Feature
1. It has extremely high mechanical strength and compressive strength. Good processing, welding and assembly performance, easy to use.
2. The filter layer is in the second layer, which is well protected and shunted, and the filtration precision can achieve uniform filtration performance, ensuring high stability.
3. 316L material is used, which has good corrosion resistance and good heat resistance. It can be used for filtration from -200 ° C to 480 ° C and acid and alkali environment.
4. Excellent surface cleaning structure with counter-current cleaning effect, so the counter-current cleaning effect is good, it can be used repeatedly and has a long service life. (Can be washed by countercurrent water, filtrate, ultrasonic, melting, baking, etc.).
Product Parameters
Note: This list for a reference, not for the complete list.
Nomin al filter rating |
structure prodextive layer+control layer +dispersion layer+ reinforce layer+ reinforce layer |
Thickness(mm) | air perm eabilit | Bubble pressure(mm) | weight (kg/m2) |
porosity (%) |
1 | 100+400*2800+100+12*64+64 | 1.7 | 1.81 | 360-600 | 5 layer 8.4 | 40% |
5 | 100+200*1400+100+12*64+64 | 1.7 | 2.42 | 260-550 | 6 layer 14.4 | 40% |
20 | 100+165*800+100+12*64+64* | 1.7 | 4.5 | 170-450 | 40% | |
200 | 40+80+40+20+40+80+40 | 2 | 26 | 50-150 | 40% |
Product Application
1. Precision filtration of various hydraulic oil lubricants in the machinery industry;
2. Filtration and purification of various polymer melts in the chemical fiber film industry, filtration of various high temperature and corrosive liquids in the petrochemical industry, filtration, washing and drying of materials in the pharmaceutical industry;
3. The application of gas homogenization in the powder industry, fluidization plate in the steel industry;
4. Distributors in explosion-proof electrical appliances, etc.
