Product Details:
Payment & Shipping Terms:
|
Product Name: | 1.7mm Stainless Steel Multilayer Sintered Wire Mesh Round Filter Mesh 316l Flameproof Sheet Coffee | Width: | As Requirement |
---|---|---|---|
Length: | As Requirement | Color: | Silver / Black |
Appication: | Filter | Weave Style: | Plain Weave |
Type: | Weave Wire Mesh | Material: | Stainless Steel Wire,304,316 |
High Light: | 1.7mm sintered wire mesh filter,multilayer sintered wire mesh filter,316l sintered mesh filter |

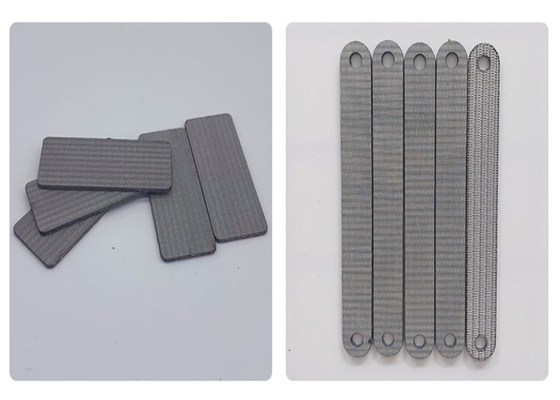

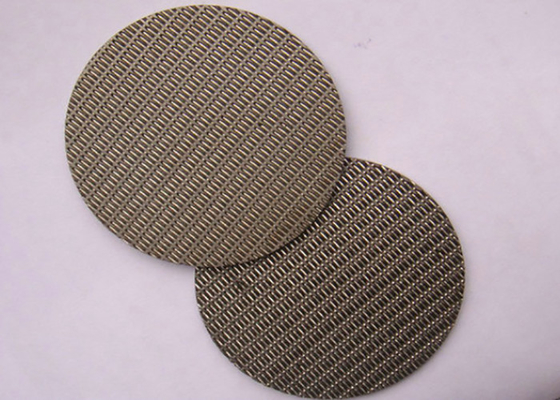

1.7mm Stainless Steel Multilayer Sintered Wire Mesh Round Filter Mesh 316l Flameproof Sheet Coffee
Product Description
The stainless steel multi-layer metal sintered mesh is a new type of filter material with high strength and overall rigidity, which is made of multi-layer stainless steel wire mesh through special lamination and vacuum sintering. The meshes of each layer of wire mesh are interlaced. , To form a uniform and ideal filtering structure, the county has excellent filtering precision, filtering resistance, mechanical strength, wear resistance and processability. It is especially ideal for filtering with uniform compressive strength and filtering precision requirements, and it is widely used. Used in petrochemical, nuclear power, synthetic fiber, film, video, pharmaceutical, aerospace and environmental protection industries.
Product Feature
Working Temperature:200—1000°C
Corrosion Resistance
High Filtering Efficiency
Metallic capacities, such as noise reduction,hot resistance,heat conduction,high strength and etc
Easy to welding and long working life
Product Parameters
Note: This list for a reference, not for the complete list.
Nomin al filter rating |
structure prodextive layer+control layer +dispersion layer+ reinforce layer+ reinforce layer |
Thickness(mm) | air perm eabilit | Bubble pressure(mm) | weight (kg/m2) |
porosity (%) |
1 | 100+400*2800+100+12*64+64 | 1.7 | 1.81 | 360-600 | 5 layer 8.4 | 40% |
5 | 100+200*1400+100+12*64+64 | 1.7 | 2.42 | 260-550 | 6 layer 14.4 | 40% |
20 | 100+165*800+100+12*64+64* | 1.7 | 4.5 | 170-450 | 40% | |
200 | 40+80+40+20+40+80+40 | 2 | 26 | 50-150 | 40% |
Product Application
The main purpose of the product: used as a dispersive cooling material in high temperature environment; used for gas distribution and liquidized bed orifice material; used for high-precision, high-reliability and high-temperature filter material; used for high-pressure backwash oil filter material.
