Product Details:
Payment & Shipping Terms:
|
Product Name: | Silk Screen Printing Squeegee Rubber Roll | Handle Material: | Aluminum Alloy,wooden |
---|---|---|---|
Wide: | 25 Mm , 35 Mm , 40 Mm , 50 Mm , 50 Mm | Application: | Ceramic,glass,bottle,textile,elecronic Ect |
Brand Name: | R&K | Certification: | SGS,ISO 9001 |
Thickness: | 5 Mm , 9 Mm | Roll Length: | 4 M , 3.5 M,3.7 M |
High Light: | silk screen squeegee,polyurethane squeegee blades |
Silk Screen Printing Squeegee Rubber Roll White Color 70 Shore A 50 * 9 MM Thickness
Screen Printing Squeegee Rubber Roll Specification:
squeegee standard profile:
E1 : Straight square edge
E2: Single Bevel + flat tip
E3: Single Bevel
E4: Double Bevel + Flat tip
E5: Double Bevel (V shape)
E6: Bull Nose (Round top)
E7: H shape
E8: Triple Layer
E9 Double layer
Material | Polyurethane rubber |
Color | Red , Brown , Green , Blue , White , Dream Purple |
Hardeness | From 50 - 95 shore A |
Thickness | Popular thickness 9 mm |
Width | 25 mm /50 mm |
Length | 4 m per meter |
Packing | 4 m for one small box with film stretch film |
Product name | Screen printing squeegee rubber roll |
Certification | ISO,SGS |
Screen Printing squeegee specificaion for reference:
Red color: soft hardness , 60-65 shore A,Suitable for the low mesh screen cloth , low viscosity ink , irregular surface of the printing.
Green color: medium hardness , 70-75 Shore A,Suitable for various of mesh screen cloth,various of ink and various of the prints.
Blue color: Hard hardness,80-85 Shore A, Suitable for various of mesh screen cloth,various of ink and various of the prints.
White color: Super hard hardness, 90-95 Shore A,Suitable for various of mesh screen cloth,various of ink and various of the prints.
Green/white/Green color: Triple medium hardness, 75/90/75 shore A, Suitable for carious of mesh screen cloth,various of ink and various of the prints.
Red/White/Red color: Soft medium, 65/90/65 shore A,suitable for the low mesh screen cloth,low viscosity ink,irregular surface of the printing.
Color | Hardness | Shore A | Suggestion |
Red or natural | Soft | 50-65 | Suitable for the low mesh screen cloth ,low viscosity ink,irregular surface of the printing. |
Green | Medium | 70-75 | Suitable for various of mesh screen cloth,various of ink and various of the prints. |
Blue | Hard | 80-85 | Suitable for high pressure,high viscosity ink,the fine print of the printing |
White | Super hard | 90-95 | |
Green/White/Green | Triple medium | 75/90/75 | Suitable for various of mesh screen cloth,various of ink and various of the prints. |
Red/White/Red | Soft medium | 65/90/65 | Suitable for the low mesh screen cloth ,low viscosity ink,irregular surface of the printing. |
squeegee blade specification for reference:
Popular standard size:
Item name | Thickness*Width*Length | Color | Sharp | Hardness |
squeegee
Blade
|
5*17*4000 | Red | Flat | 60A to 90A |
5*20*4000 | Red | Flat | 60A to 90A | |
5*25*4000 | Red | Flat | 60A to 90A | |
5*25*4000 | Red | Flat | 60A to 90A | |
5*35*4000 | Yellow | Flat | 60A to 90A | |
7*35*4000 | Yellow | Flat | 60A to 90A | |
7*42*4000 | Blue | Flat | 60A to 90A | |
7*50*4000 | Blue | Flat | 60A to 90A | |
9*42*4000 | Green | Flat | 60A to 90A | |
9*50*4000 | Green | Flat | 60A to 90A | |
10*50*4000 | Coffee | Flat | 40A to 90A |

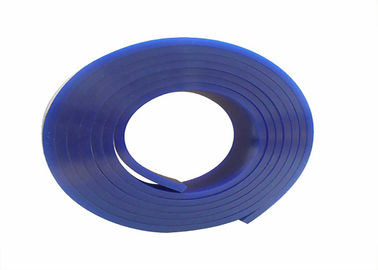

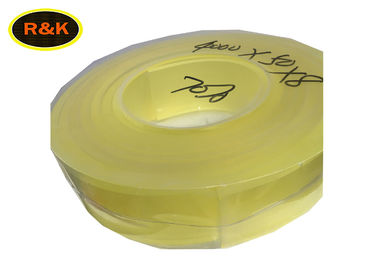

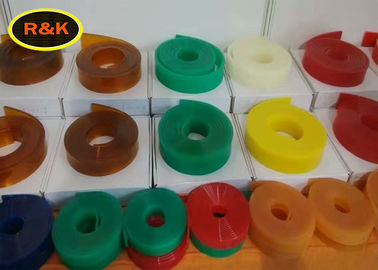

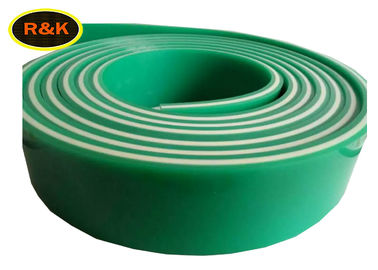

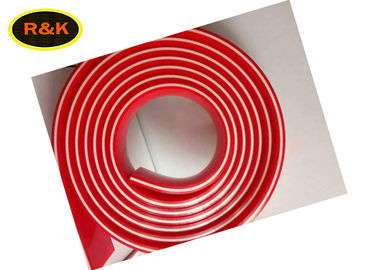

Photo for the screen printing squeegee:
