Product Details:
Payment & Shipping Terms:
|
Material: | Teflen | Standing Temperature: | 70 To 260 |
---|---|---|---|
Standard Size: | 1*1,2*2,4*4 Mm | Color: | Any Color Is Ok |
Weight: | 120-160g/m2 | Width: | As Your Requirement |
High Light: | 4mm × 4mm ptfe mesh conveyor belt,red edge ptfe mesh conveyor belt,ptfe mesh conveyor belt for printing |

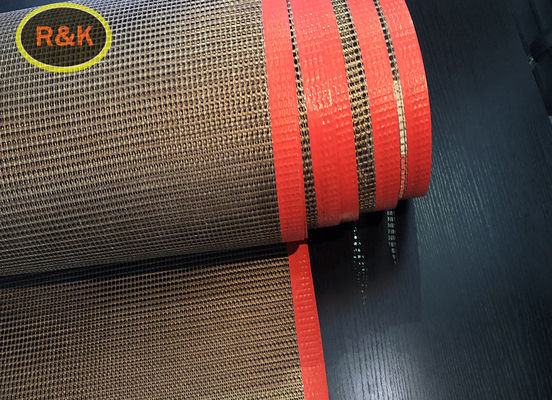

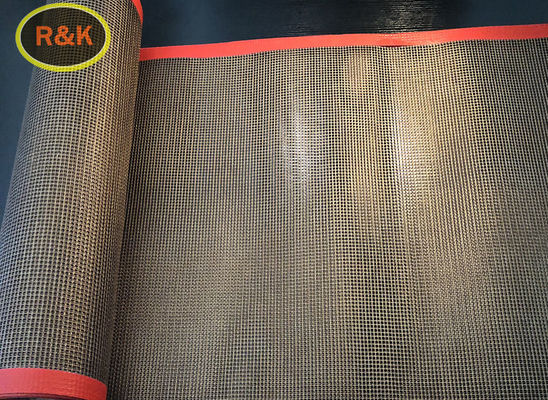

4 MM×4 MM teflen Conveyor Belt Coated Fiberglass Red Edge For Printing
Description of the teflen conveyor belt:
teflen conveyor belt is an indispensable material in the printing industry
Material | PTFE |
Standard size | 1*1,2*2,4*4mesh,10*10mesh |
Place of original | Hebei,China |
Weight | 120-160g/m2 |
Color | Any color is ok |
Features of the teflen conveyor belt:
1, for low temperature -70 ° C, high temperature 260 ° C, with weather resistance, anti-aging. After practical application, if placed continuously for 200 days at a high temperature of 250 °C, not only the strength will not become lower, but also the weight will not decrease; when placed at 350 ° C for 120 hours, the weight will only decrease by about 0.6%; at -180 ° C It retains its original softness at ultra-low temperatures.
2, teflen conveyor belt non-adhesive: not easy to adhere to any substance. It is easy to clean all kinds of oil stains, stains or other attachments attached to its surface; almost all adhesive substances such as paste, resin, paint, etc. can be easily removed;
3, resistant to chemical corrosion, can withstand the corrosion of strong acid, alkali, aqua regia and various organic solvents.
4. The teflen conveyor belt has good dimensional stability (extension coefficient less than 5‰) and high strength. Has good mechanical properties.
5, anti-bending fatigue, can be used for smaller wheel diameter.
6, drug resistance, non-toxic. Almost resistant to all pharmaceutical items.
7, fire retardant.
8. Breathability---The air permeability of the conveyor belt, reducing the heat source cost and improving the drying efficiency.
Specification of the teflen conveyor belt:
Model | aperture | material | thickness | weight | Temperature resistance | Maximum width | tensile strength |
W-O5J | 1x 1mm | glassfiber | 0.5mm | 370g /m 2 | -70 -260 ℃ | 4m | 310/290 N/cm |
W-07J | 2x 2mm | glassfiber | 0.7mm | 450g /m 2 | -70 -260 ℃ | 4m | 350/310 N/cm |
W-1J | 4x 4mm | glassfiber | 1.0mm | 400g /m 2 | -70 -260 ℃ | 4m | 390/320 N/cm |
W-2J | 4x 4mm | glassfiber | 1.0mm | 450g /m 2 | -70 -260 ℃ | 4m | 390/320 N/cm |
W-12KJ | 4x 4mm | glassfiber | 1.2mm | 600g /m 2 | -70 -260 ℃ | 4m | 895/370 N/cm |
W-3J | 4x 4mm | glassfiber | 1.0mm | 500g /m 2 | -70 -260 ℃ | 4m | 395/370 N/cm |
W-4J | 4x 4mm | glassfiber | 1.0mm | 500g /m 2 | -70 -260 ℃ | 4m | 900/600 N/cm |
W-5J | 4x 4mm | glassfiber | 1.0mm | 550g /m 2 | -70 -260 ℃ | 4m | 395/370 N/cm |
W-12J | 10x 10mm | glassfiber | 1.2mm | 450g /m 2 | -70 -260 ℃ | 4m | 360/300 N/cm |
NW-14J | 0.5x 1mm | glassfiber | 0.5mm | 420g /m 2 | -70 -260 ℃ | 4m | 310/290 N/cm |
W-09J | 2x 2.5mm | glassfiber | 0.9mm | 600g /m 2 | -70 -260 ℃ | 3m | 390/320 N/ |
Application of the teflen conveyor belt:
