Primary Colors Stainless Steel Screen Printing Mesh Good Solvent Resistance

Primary Colors Stainless Steel Screen Printing Mesh Good Solvent Resistance
Primary Colors Stainless Steel Screen Printing Mesh Good Solvent Resistance Primary Colors Stainless Steel Screen Printing Mesh Good Solvent Resistance Primary Colors Stainless Steel Screen Printing Mesh Good Solvent Resistance Primary Colors Stainless Steel Screen Printing Mesh Good Solvent Resistance

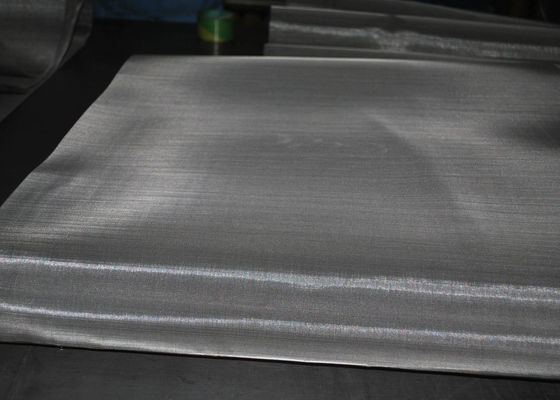

Large Image :  Primary Colors Stainless Steel Screen Printing Mesh Good Solvent Resistance

Product Details:
Place of Origin: Hebei , China
Brand Name: R&K
Certification: FDA
Model Number: R&K-LLS
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Price: negotiation
Packaging Details: waterproof paper inside,plywood case outside
Delivery Time: in 5 days for goods in stock
Payment Terms: L/C,T/T,Western Union,Paypal,Trade Assurance
Supply Ability: 3000 square meter per month
Detailed Product Description
Features: Good Solvent Resistance Material: 316L,SUS 304N,304HPS
Color: Primary Colors Size: Usually 1.02meter*30meter Per Roll
Mesh/inch: 40-500inch Weave: Plain Weave
High Light:

stainless steel filter mesh

,

stainless steel mesh roll

Primary Colors Stainless Steel Screen Printing Mesh Good Solvent Resistance





Description of the Steel Screen Printing Mesh



By selecting specially alloy materials and using advanced weaving technology,the structure of the stainless steel printing network is more compact,and the tolerance within the tolerance range is guaranteed.



Stainless steel braided mesh refers to ultra-fine wire mesh, also known as stainless steel wire cloth, which is usually used in micron-sized filtration industry, such as air filtration, liquid filtration, small solid filtration, etc.


Material 316L,SUS 304N,304HPS
Weave Plain weave
Color Primary color
Size Usually 1.02meter*30meter Per Roll
wire diameter 0.018-0.02mm
Features Good solvent resistance


Featuers of the Steel Screen Printing Mesh :



High tension.Much higher tension than common polyester mesh,and this property is very stable.

Low Elongation:Very small elongation of wire mesh at igh tension.

High-Flexibility:The wire mesh will not lose elasticity at extremely tension.

Non-electrostatic:To avoid affects of nonelectrostatic for printing and ensure the safety of printing.

Good Heat-melting Resistant :Special features of steel wire mesh.Suitable for heat-melting ink.

Good Solvent Resistance:To avoid the affects of any solvents to wire mesh and to ensure the safety of printing.



Specification of the Steel Screen Printing Mesh :



Mesh/Inch Wire Diameter Aperture Open Area Weight (kg/Square meter)
Inch MM Inch MM
100*100*100 100 100 36.8 154 195-205 As order 77.2
120*120*80 120 80 39 132 155-165 As order 65.8
150*150*60 150 60 41.7 109 115-124 As order 50
165*165*35 165 35 60 119 70-75 As order 48
165*165*45 165 45 50.1 109 88-93 As order 45.1
165*165*50 165 50 45.6 104 97-105 As order 45.6
180*180*45 180 45 46.4 96 88-93 As order 41.5
180*180*50 180 50 42 91 98-104 As order 41.7
200*200*40 200 40 46.9 87 82-84 As order 43
200*200*50 200 50 37 77 98-103 As order 42
230*230*35 230 35 46.7 75 72-76 50-67 37
250*250*40 250 40 36.8 62 82-86 50-80 34
250*250*30 250 30 49.7 72 64-68 40-58 30
250*250*35 250 35 43 67 76-78 57-70 32
270*270*35 270 35 39.4 59 76-80 58-70 30
300*300*30 300 30 41.7 55 66-68 4-59 28
325*325*30 325 30 38 48 66-68 45-60 24
325*325*28 325 28 41.2 50 63-64 40-56 26.4
325*325*23 325 23 49.8 55 49-53 37-41 25.4
350*350*35 350 25 43 48 52-54 41-50 18.7
400*400*23 400 23 40.7 41 50-54 35-48 19
400*400*18 400 18 51.3 46 36-40 28-30 20
500*500*18 500 18 41.7 33 36-40 23-29 15.3



Application of the Steel Screen Printing Mesh :


Solar battery,
Pinted Circuit Board(PCB),
Chip Electrical components,
Flat Panel Display,
Liquid Crystal Display(LCD),
Plasma Display Panel(PDP) ECT.



Primary Colors Stainless Steel Screen Printing Mesh Good Solvent Resistance 0





By selecting specially alloy materials and using advanced weaving technology,the structure of the stainless steel printing network is more compact,and the tolerance within the tolerance range is guaranteed.



Openings can be square, rectangular or special openings.Generally speaking, this kind of wire mesh has standard opening size, uniform opening, good permeability and high strength.Raw materials should be selected according to different application environment.
