200 Mesh Polyester Thermal Screen Printing Mesh Good Diathermancy

China 200 Mesh Polyester Thermal Screen Printing Mesh Good Diathermancy supplier
200 Mesh Polyester Thermal Screen Printing Mesh Good Diathermancy supplier 200 Mesh Polyester Thermal Screen Printing Mesh Good Diathermancy supplier 200 Mesh Polyester Thermal Screen Printing Mesh Good Diathermancy supplier 200 Mesh Polyester Thermal Screen Printing Mesh Good Diathermancy supplier

Large Image :  200 Mesh Polyester Thermal Screen Printing Mesh Good Diathermancy

Product Details:

Place of Origin: Hebei,China
Brand Name: R&K
Certification: ISO,SGS,FDA,MSDS
Model Number: Y17964

Payment & Shipping Terms:

Minimum Order Quantity: 100square meter
Price: negotiation
Packaging Details: plastic bag inside,carton box outside
Delivery Time: 5-10days
Payment Terms: L/C, T/T, Western Union,Paypal,Trade asscurance. Credit Card.
Supply Ability: 30000meter within 2 months
Contact Now
Detailed Product Description
Features: Good Diathermancy Material: 100% Polyester Mesh
Max Mesh Count: 200mesh Max Width: 3.60meter
Color: White,yellow Usage: Textile Printing,leather Printing,glass Printing,ceramic Printing,touch Screen Printing...
Wire Diameter: 80um Aperture: 72um

200 Mesh Polyester Thermal Screen Printing Mesh Good Diathermancy





Description for the polyester mesh:



Basic screen printing includes a frame that stretches the mesh on one side, hinges onto the substrate, and a flexible squeegee that forces ink through the transparent areas of the mesh and onto the substrate on the substrate.

It is important to choose the right grid to suit your particular job. The main purpose of the grid is to support the template. In addition, the choice of precision woven mesh has a great influence on print definition, ink usage and template durability. Different printing networks have their own unique properties and uses.
Screen printers currently use three main types of materials - monofilament nylon, polyester and a lesser degree of multifilament polyester. Due to their different characteristics, each material has its specific purpose.



Characteristic for this polyester mesh:



1). Good diathermancy;



2). Acid resistant alkali resistant;



3). Long work life printing material;



4). Hard wear printing material;



5). Faster turnaround time from the screen room to the pressroom;



6). High air permeability printing material;



7). Three warehouse for manufacturing



8). Imported weaing machine from Switzerland and Itday,Germany.



Specifications of the polyester mesh:



Mesh Count
Diameter
(Mesh/inch μm)
Mesh
Count
(Mesh
/Inch)
Weave Aperture
(μm)
Thread
Diameter
(μm)
Opening
(%)
Thickness(μm) Thickness
Tollerance
(+/- μm)
Theoretical
lnk(cm3/m2)
Weight
(g/m2)
6-400 15 1:1 1270 400 64 720 T
7-350 18 1:1 1078 350 64 640
8-300 20 1:1 950 300 58 550
10-250 25 1:1 750 250 56 620
12-250 30 1:1 583 250 49 450
12-150 30 1:1 683 150 67 300
13-150PW(SL) 33 1:1 619 150 64 300 14 128 60
16-200 40 1:1 425 200 46 400
20-80 50 1:1 420 80 71 120
20-150 50 1:1 350 150 49 260
21-80pw(S) 55 1:1 296 80 69 120 9 79 35
21-150PW(SL) 55 1:1 326 150 46 260 14 118 121
24-100PW(T) 60 1:1 316 100 57 136 11 65 81
28-140PW(SL) 70 1:1 217 140 40 195 13 76 125
32-55PW(S) 81 1:1 257 55 67 103 6 67 28
32-64PW(S) 81 1:1 248 64 63 95 6 56 32
32-100PW(T) 81 1:1 212 100 45 165 8 73 75
36-90PW(T) 92 1:1 183 90 44 150 8 65 68
39-55PW(S) 100 1:1 177 55 56 88 6 55 30
40-80PW(T) 103 1:1 166 80 44 133 7 59 60
43-80PW(T) 110 1:1 149 80 41 130 7 53 64
47-45PW(S) 120 1:1 166 45*2 61 80 6 42 40
47-55PW(S) 120 1:1 152 55 51 88 6 48 34
48-70PW(T) 122 1:1 133 70 41 115 6 47 55
53-45PW(S) 135 1:1 143 45*2 57 79 7 41 46
53-55PW(S) 135 1:1 133 55 50 86 6 42 40
54-64PW(T) 137 1:1 115 64 39 100 5 39 51
54-70(PW)HD 137 1:1 109 70 35 116 6 40 62
61-64PW(T) 155 1:1 90 64 31 101 5 30 58
64-55PW(S) 160 1:1 98 55 38 98 5 36 48
64-64PW(T) 160 1:1 85 64 30 115 6 34 61
68-55PW(S) 175 1:1 85 55 34 85 4 28 48
68-64PW(T) 175 1:1 78 64 28 105 5 30 65
72-48PW(S) 182 1:1 90 48 36 78 5 33 39
72-55PW(T) 182 1:1 85 55 30 90 5 27 51
77-48PW(S) 195 1:1 77 48 35 80 4 28 42
77-55PW(T) 195 1:1 67 55 27 88 4 24 55
80-48PW(T) 200 1:1 72 48 33 74 4 25 56
90-48PW(T) 230 1:1 56 48 25 78 4 19 50
100-40PW(T) 255 1:1 58 40 33 63 3 21 37
110-40PW(HD) 280 1:1 48 40 27 64 3 17 40
120-31PW(S) 305 1:1 49 31 35 49 3 17 26
120-34PW(T) 305 1:1 45 34 30 55 3 16 35
120-40PW(HD) 305 1:1 37 40 20 63 3 13 44
130-34PW(T) 330 1:1 40 34 27 55 3 15 37
140-31PW(S) 355 1:1 36 31 26 48 2 12 30
140-34PW(T) 355 1:1 31 34 20 53 3 10 39
140-34TW(T) 355 1:1 33 34 21 56 3 12 41
150-31PW(S) 380 1:1 32 31 23 49 3 11 32
150-34PW(T) 380 1:1 23 34 13 55 3 6.5 42
165-34PW(S) 420 1:1 23 31 15 48 2 7 36



Manufacturing process for the polyester bolting cloth:



Yarn→Warping→Drawing In Heddle→Drawing In Reed→Weaving→Insitial Survey→Washing→Heat Setting Treatment→Product Inspection→Product.



Application for the polyester bolting cloth:



Printing mesh are widely used in T-shirt printing, Graphics printing, Cosmetic Bottles,Ceramics, Glass,Garment printing, electronic components
PCB,CD/DVD,Solar battery ect.





How to select the suitable bolting cloth?





Objects printing



165T/420-31;150T/380-31;140T/355-31;120T/305 34;100T/255-40.







Ceramic & tiles printing



165T/420-31;150T/380-31;140T/355-31;120T/305-34;100T/255-40;77T/195-55;62T/160-100.43T/110-80;36T/90-100;32T/80-100;12T/30-150.





Glass printing



165T/420-31;150T/380-31;140T/355-31;120T/305-34;100T/255-40;90T/230-48;77T/195-48;62T/160-6468T/175-55;43T/110-80.







Textile printing



150T/380-31;140T/355-31;120T/300-34;100T/255-40;77T/195-48;62T/160-64;54T/137-64;47T/120-55;43T/110-80;40T/100-80;36T/90-100;32T/83-100;16T/40-200;12T/30-150.





Credit card printing



150T/380-31;120T/300-34;100T/2555-34;71T/180-55.





Dashboards printing



165T/420-31;150T/380-31;140T/355-31;120T/305-34;110T/280-34;90T/230-48;36T/90-100

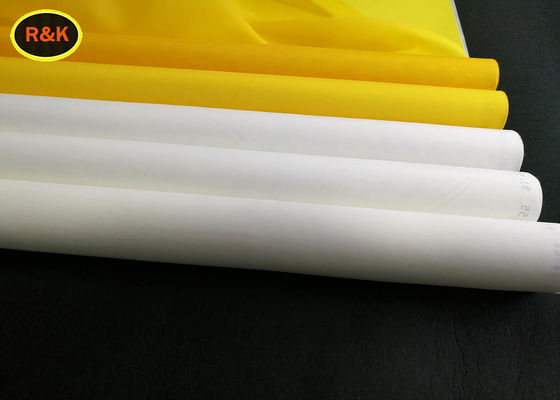

Photo for the polyester mesh:


200 Mesh Polyester Thermal Screen Printing Mesh Good Diathermancy
