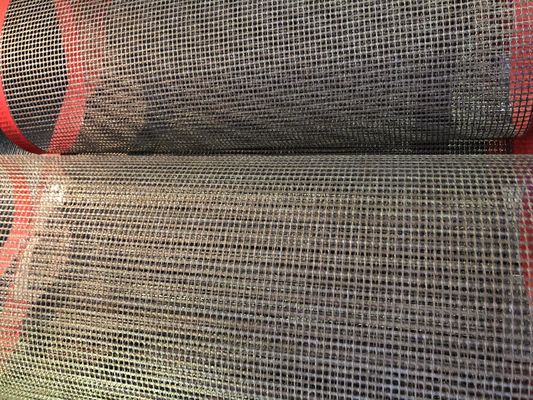

High Temperature Resistant 4*4mm Fiberglass Mesh Belt PTFE Conveyor Mesh Belt
Product Introduction
Teflen mesh conveyor belt, also known as Teflen mesh conveyor belt, is made of high purity suspended polytetrafluoro 2ene emulsion L liquid as raw material, impregnated with high-performance glass mesh cloth, dried, baked Made by sintering and other processes. It defines the specifications in terms of mesh size, mainly including 1x1mm, 2x2mm, 4x4mm, 10x10mm, etc., and is divided into single weft and double warp and weft grids according to the different warp and weft. band.
The joints of Teflen mesh conveyor belt are mainly soft joints (bull nose joints) and steel buckle joints
A variety of Teflen high-temperature cloth joints, such as butt joint, lap joint,
Thinning lap joints, steel buckle joints, etc.
Section number | Grid size | colour | thickness | Weight | Temperature resistance | Maximum width | tensile strength |
YS -6002 | 2x2mm | black | 0.7mm | 450g/m2 | -70~320C | 4000mm | 350/310N/cm |
YS- 6003 | 4x4mm | black | 1.0mm | 400g/m2. | -70~320C | 4000mm | 390/320N/cm |
YS- 6004 | 4x4mm | cream color | 1.0mm | 450g/m2 | -70~320C | 4000mm | 390/320N/cm |
YS-6007 | 4x4mm | brown | 1.2mm | 600g/m2 | -70~320C | 4000mm | 895/370N/cm |
YS- 6008 | 4x4mm | black | 1.0mm | 500g/m2 | -70~320C | 4000mm | 395/370N/cm |
YS-6010 | 4x4mm | cream color | 1.0mm | 500g/m2 | -70~320C | 4000mm | 900/600N/cm |
YS-6012 | 4x4mm | cream color | 1.0mm | 550g/m2 | -70~320C | 4000mm | 395/370N/cm |
YS-6013 | 10x10mm | cream color | 1.2mm | 450g/m2 | -70~320C | 4000mm | 360/300N/cm |
YS-6014 | 0.5x1mm | cream color | 0. .5mm | 420g/m2 | -70~320C | 4000mm | 310/290N/cm |
Product Properties
1. Used between -196 ~ 300 C degrees, with weather resistance and anti-aging
2. Resistant to chemical corrosion, resistant to strong acids, strong bases, aqua regia and various organic solvents
3. Resistant to bending fatigue, can be used for smaller wheel diameters in machinery
4. Non-adhesive: It is not easy to adhere to any substance, and it is easy to clean various oil stains, stains or other attachments attached to its surface
5. High insulation performance
6. Anti-ultraviolet, anti-static.
7. Good dimensional stability
8. High strength, good mechanical properties.
Product Application
Textile, printing and dyeing: Printing drying, dyeing drying, fabric shrinkage drying, non-woven drying, Oven Conveyor Belt Silk Screen,
Printing: Loose Dryer, offset printing machine, UV series light solid machine, paper through oil drying, UV drying, plastic products silk screen drying, oven conveyor belt
Other: High Cycle drying, microwave drying, freezing and thawing of all types of food, baking, thermal shrinkage of packaging products, general moisture drying, solvent-based fast drying of ink oven guide belt
